DS-KDM9633-KP

DS-KDM9633-KP

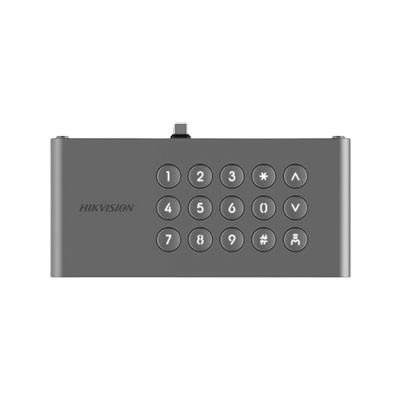

Hikvision DS-KDM9633-KP Keypad module of KD9633, Keypad module for KD9633 series door station, Backlight compensation behind the keypad, IP65 & IK07 high protection level, Easy to use and extend.

Keypad module of KD9633

Hikvision DS-KDM9633-KP Keypad module of KD9633

Button

15 physical buttons

Material

Metal

Protective Level

IP65 & IK07 high protection level

Device interfaces

USB

1 USB type-C, only connect to KD9633

General

Button

15 physical buttons

Installation

Surface mounting and flush mounting

Weight

Net weight: 0.335 kg Gross weight: 1.637 kg

Protective level

IP65 and IK07

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1")

Power supply

5 VDC, 0.5 A

Application environment

Outdoor

Material

Aluminum alloy and plastic
