DS-KH8520-WTE1

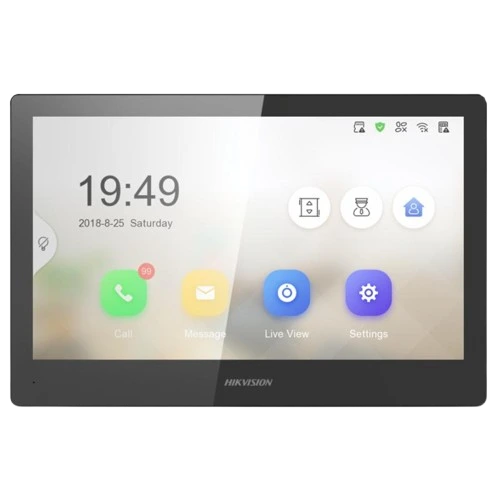

Hikvision DS-KH8520-WTE1 Indoor Station, 10.1-inch TFT touch screen with 1024 × 600 resolution, Flash: 32 MB, RAM: 128 MB, Receive calls, open the door and live view remotely, Easy to use without PC, Easy, Configure the whole system on one touch screen, Rich functions and extensions, Live-view of the door station and cameras in public areas, Support voice messages when no response from the indoor station, Receive alarms by linkage with a alarm system and notify the center to handle in time, Support Elevator access control, 1 RJ-45 10/100 Mbps self-adaptive, Wi-Fi 802.11 b/g/n, Built-in omnidirectional microphone, Built-in Loudspeaker, standard PoE, Support TF card , 12 VDC/1 A.
|
System parameters |
|
|
|
Operation system |
Embedded Linux operation system |
|
|
Flash |
32 MB |
|
|
RAM |
128 MB |
|
|
CPU |
Embedded processor |
|
|
Display parameters |
|
|
|
Size |
10.1-inch |
|
|
Operation method |
Capacitive touch screen |
|
|
Type |
Colorful TFT screen |
|
|
Resolution |
1024 × 600 |
|
|
Audio parameters |
|
|
|
Audio input |
Built-in omnidirectional microphone |
|
|
Audio compression standard |
G.711 U |
|
|
Audio output |
Built-in loudspeaker |
|
|
Audio compression bitrate |
64 Kbps |
|
|
Audio quality |
Noise suppression and echo cancellation |
|
|
Volume adjustment |
Adjustable |
|
|
Capacity |
|
|
|
Linked IPC |
16 |
|
|
Linked indoor extensions |
16 |
|
|
Notices |
200 |
|
|
Linked door phone |
17 |
|
|
Network parameters |
|
|
|
Communication protocol |
TCP/IP, SIP, RTSP |
|
|
Wired network |
10/100 Mbps self-adaptive |
|
|
Wi-Fi |
Wi-Fi 802.11 b/g/n |
|
|
Device interfaces |
|
|
|
Alarm input |
8-ch alarm inputs |
|
|
Network interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
|
TAMPER |
/ |
|
|
RS-485 |
1 |
|
|
USB |
0 |
|
|
TF card |
Max to 128 G, SD 2.0 or lower version |
|
|
Alarm output |
2 |
|
|
Power interface |
1 |
|
|
General |
||
|
Installation |
Surface mounting |
|
|
Weight |
1118 g (with packaging) 660 g (without packaging) |
|
|
Power supply method |
IEEE802.3af, standard PoE 12 VDC/1 A |
|
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
|
Working humidity |
10% to 90% |
|
|
Dimensions |
254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89") |
|
|
Battery |
/ |
|
|
Application environment |
Indoor |
|
|
Power consumption |
≤ 6 W |
|
|
