DS-KH9510-WTE1

DS-KH9510-WTE1

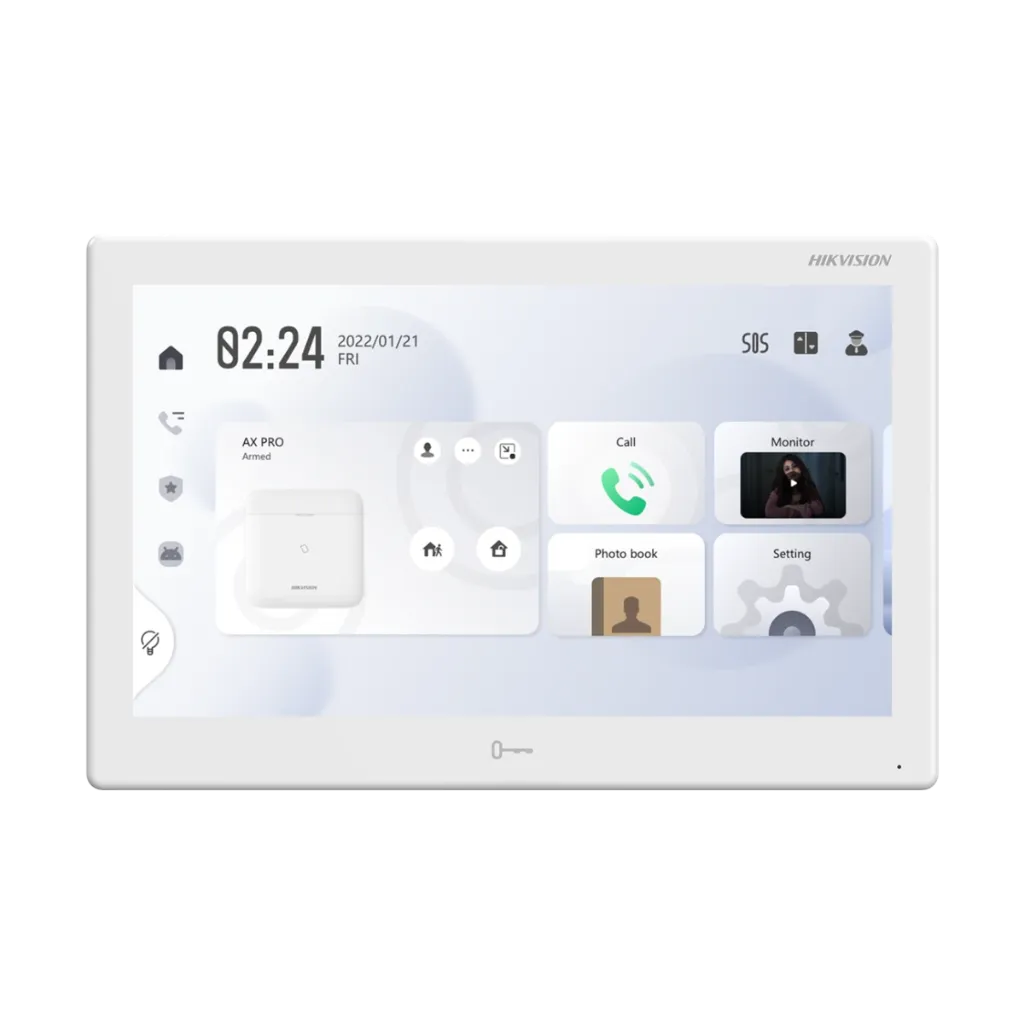

Hikvision DS-KH9510-WTE1 All-in-one Indoor Station, 10.1-inch colorful touch screen with 1024 × 600 resolution, Built-in Android System, Built-in Hik-Connect APP, ROM: 8 GB, RAM: 2 GB, Built-in omnidirectional microphone, Built-in loudspeaker, Message Capacity: 200 captured pictures, 200 alarm records, Notice Capacity: 200, Linked Indoor Extensions Capacity: 16, Linked Network Camera Capacity: 16, 2.4 GHz Wi-Fi, Support TF card, Alarm Input: 8, ≤ 12 W.

Indoor Station

Hikvision DS-KH9510-WTE1 All-in-one Indoor Station

Touch Screen

10.1-inch colorful touch screen with 1024 × 600 resolution

On-Board Storage

Support TF card, up to 128 G

Audio

Built-in omnidirectional microphone, Built-in loudspeaker

System Parameters

Operation system

Android 10.1

ROM

8 GB

RAM

2 GB

Processor

Embedded high performance processor

Display Parameters

Screen size

10.1-inch

Operation method

Capacitive touch screen

Type

Colorful IPS

Resolution

1024 × 600

Audio Parameters

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G.711U, G.711A

Audio output

1 built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

Message capacity

200 captured pictures, 200 alarm records

Notice capacity

200

Linked indoor extensions capacity

16

Linked network camera capacity

16

Linked door phone capacity

17

Network Parameters

Network protocol

TCP/IP, SIP, RTSP

Wi-Fi

2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n

Device Interfaces

Alarm input

8

Network interface

1 RJ-45 10/100 Mbps self-adaptive

RS-485

1 RS-485 (Half duplex)

TF card

Support TF card, up to 128 G

Alarm output

1

 Lock control

1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0 V)

General

Installation

Surface mounting

Weight

Net weight: 875 g Gross weight: 1060 g

Working temperature

-10 °C to 50 °C (14 °F to 122 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")

Power supply

12 VDC, 1 A, IEEE802.3af, standard PoE

Application environment

Indoor

Power consumption

12 W
