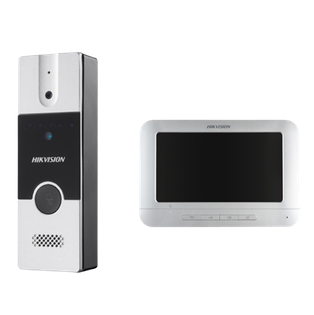

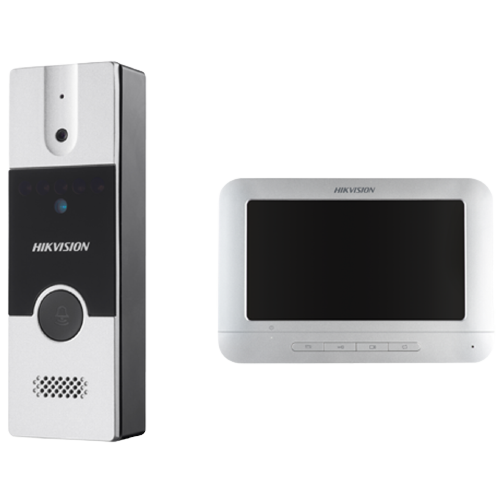

Hikvision Villa Analog Video Intercom Kit, including DS-KB2411-IM and DS-KH2220-S, 5-meter 4-wire cable, European power supply adaptor, Door Station: Built-in Omnidirectional Microphone, Built-in Loudspeaker, Indoor Station: 7-Inch Colorful TFT LCD, Display Resolution 1920 × 1080.
|
Door station |
|
|
Resolution |
1920 × 1080 |
|
Lens |
1/2.7" CMOS |
|
FOV |
Horizontal: 66.2°，Vertical: 37.2° |
|
Door station |
|
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
Door station |
|
|
I/O output |
1 relay output |
|
Four-wire |
1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power, supply, 1-ch grounding) |
|
Door station |
|
|
Power supply |
12 VDC |
|
Power consumption |
Max. 5W |
|
Working temperature |
-10° C to + 55° C (14° F to 131° F) |
|
Working humidity |
10% to 90% |
|
Dimensions |
128 mm × 42 mm × 24.8 mm |
|
Indoor station |
|
|
Operation method |
Physical button |
|
Type |
7-inch colorful TFT LCD |
|
Resolution |
800 × 480 |
|
Indoor station |
|
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
Audio quality |
Noise suppression and echo cancellation |
|
Indoor station |
|
|
Power supply |
12 VDC |
|
Power consumption |
≤5 W |
|
Working temperature |
-10° C to + 55° C (14° F to 131° F) |
|
Working humidity |
10% to 90% |
|
Dimensions (W× H × D) |
195.8 mm × 132.8 mm × 18.39 mm |
