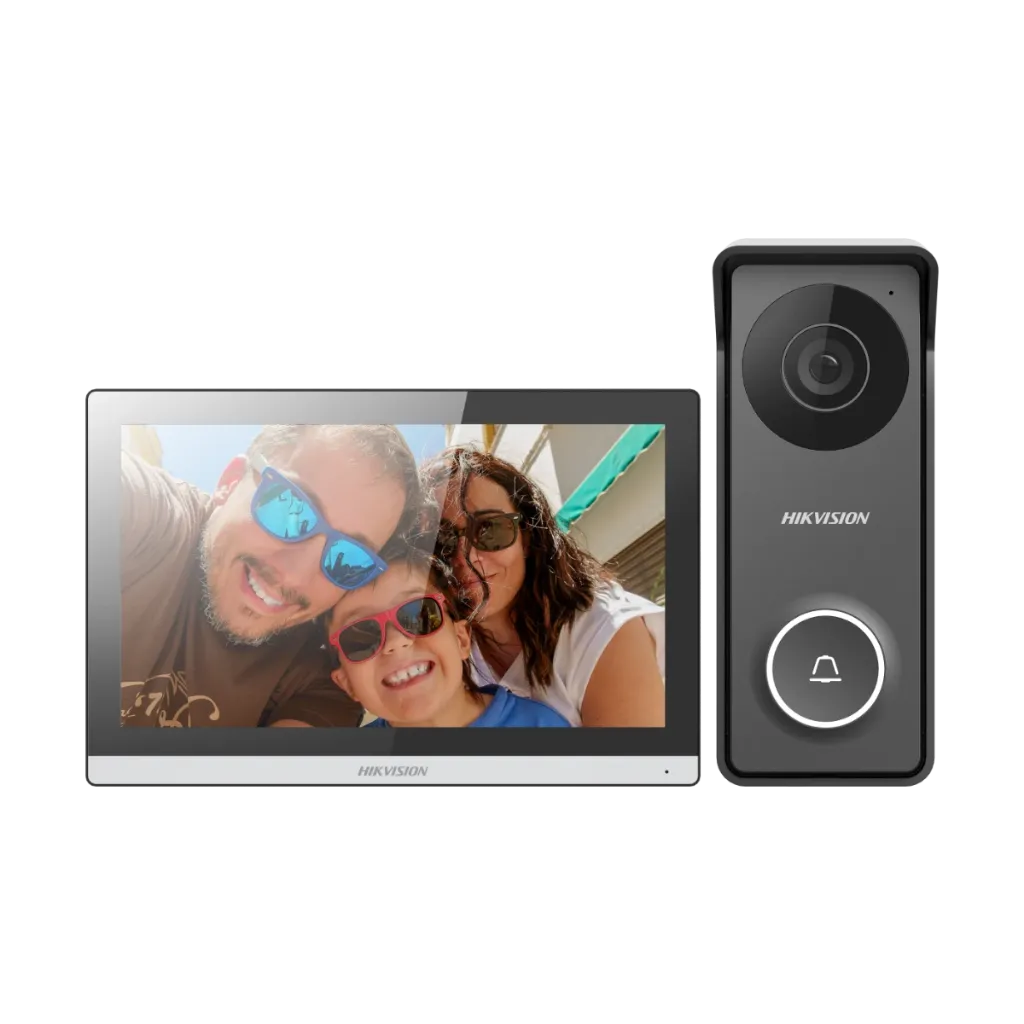

DS-KIS313-P
HD video intercom kit on 4 wires, 7-inch touch monitor
- HD video on 4 wires, plug and play
- 7-inch touch monitor with Wi-Fi
- Answer the door on your phone (Hik-Connect)
- Door station IP65 and IK08, night vision 3 m
DS-KIS313-P
HD video intercom kit on 4 wires, 7-inch touch monitor
- HD video on 4 wires, plug and play
- 7-inch touch monitor with Wi-Fi
- Answer the door on your phone (Hik-Connect)
- Door station IP65 and IK08, night vision 3 m
Key specs
- 4-wire hybrid HD (TVI) video intercom kit, plug and play
- Door station: 720p camera, IR night vision up to 3 m, 1 call button
- Indoor station: 7-inch touch screen (1024 x 600), Wi-Fi, Hik-Connect app
- 1 lock relay (30 V, 1 A) on the door station
- microSD up to 128 GB; 1 analog camera input; 2 alarm inputs
- Adds 2 extension monitors and a second door station
- Door station IP65 and IK08, -30 to 60 °C
- Power supply 12 VDC
| Door station | |
|---|---|
| Supplement light | IR light, up to 3 m |
| Resolution | 1280 × 720 |
| FOV | Horizontal: 117°, vertical: 70°, diagonal: 141° |
| Audio | Built-in microphone and loudspeaker |
| Linked indoor station capacity | 3 |
| Sub door station capacity | 1 |
| Lock control | 1 relay, max 30 V 1 A |
| Four-wire interface | 1 |
| Button | 1 physical button |
| Power supply | 12 VDC |
| Power consumption | ≤ 4 W |
| Working temperature | -30 °C to 60 °C |
| Application environment | Outdoor |
| Dimensions (W × H × D) | 55 mm × 145 mm × 24 mm |
| Installation | Surface mounting |
| Protective level | IP65, IK08 |
| Material | Aluminum alloy and plastic |
| Indoor station | |
| Screen size | 7-inch |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Audio quality | Noise suppression and echo cancellation |
| Linked indoor extensions capacity | 2 |
| Linked door station capacity | 2 |
| Linked analog camera | 1 |
| Wi-Fi | 802.11 b/g/n |
| Alarm input | 2 |
| TF card | Up to 128 G |
| Four-wire interface | 4 |
| Power supply | 12 VDC |
| Power consumption | ≤ 5 W |
| Working temperature | -10 °C to 50 °C |
| Dimensions (W × H × D) | 175 mm × 113.5 mm × 18.1 mm |
| Installation | Surface mounting |
| Application environment | Indoor |
Know before you buy
Quick answers about the DS-KIS313-P, and how it compares.
Can I answer the door on my phone?
Yes. With the free Hik-Connect app you see the visitor, talk and open the door from your phone, at home or away.
What cable does it need?
A 4-core cable between the door station and the monitor.
How many homes can it call?
One home: it has one call button. For two homes sharing a gate (ground and first floor, or two flats side by side), see the 2-button door stations in our door stations.
Can it open the door or gate?
Yes. The door station has 1 lock relay (30 V, 1 A), opened from the monitor or the app.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
