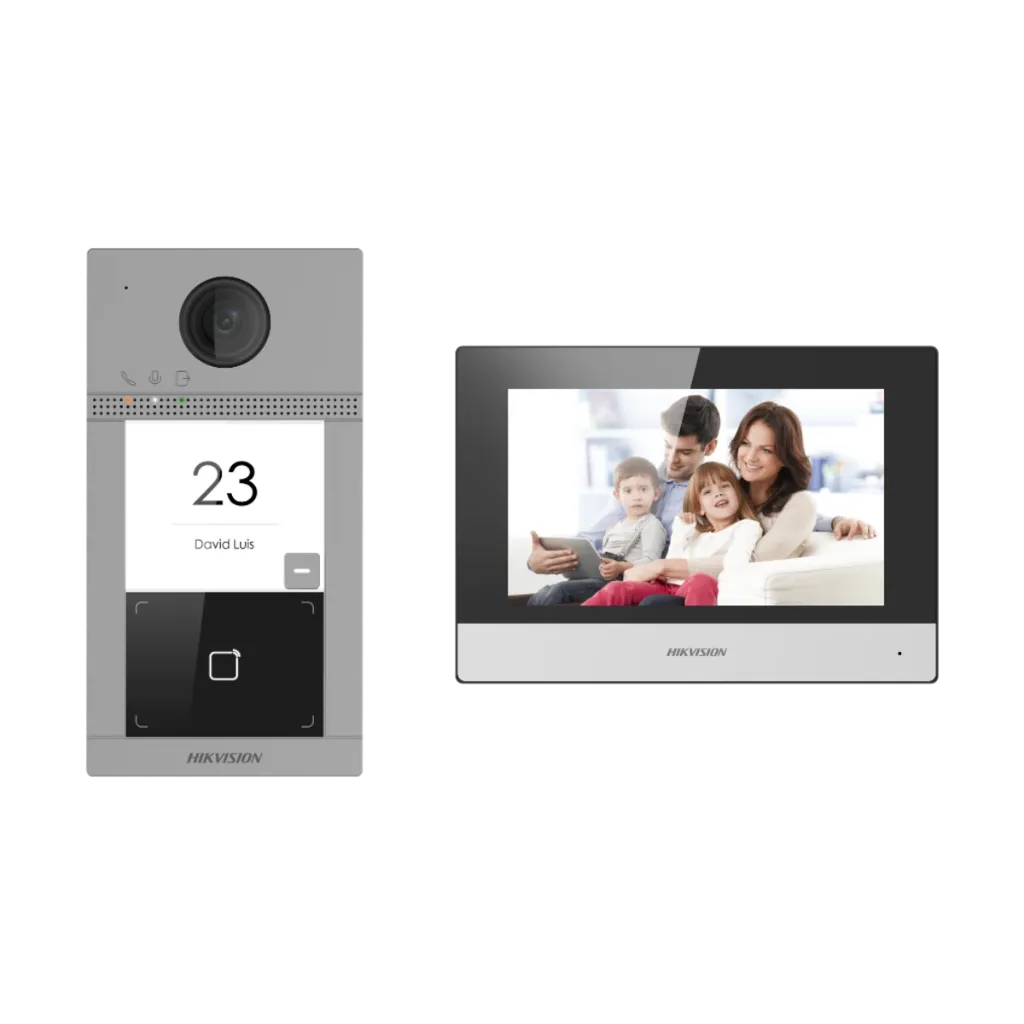

DS-KIS604-S
IP video intercom kit with PoE switch, for a villa or house
- 2MP door station, IP65 and IK08, 2 lock outputs
- 7-inch touch monitor with Wi-Fi
- 4-port PoE switch in the box
- Answer the door on your phone (Hik-Connect)
DS-KIS604-S
IP video intercom kit with PoE switch, for a villa or house
- 2MP door station, IP65 and IK08, 2 lock outputs
- 7-inch touch monitor with Wi-Fi
- 4-port PoE switch in the box
- Answer the door on your phone (Hik-Connect)
Key specs
- IP video intercom kit for a villa or house
- Door station DS-KV8113-WME1: 2MP, IR, WDR, IP65 and IK08, 2,000 users
- Indoor station DS-KH6320-WTE: 7-inch touch screen (1024 x 600), Wi-Fi
- One call button; 2 lock outputs
- 4-port PoE switch, surface box, admin card and 5 key fobs in the box
- Messages and pictures saved to microSD (up to 128 GB)
- Standard PoE or 12 VDC
- Hik-Connect app
- Door station -40 to 53 °C
| Door station | |
|---|---|
| Model | DS-KV8113-WME1(C) |
| Resolution | 1920 × 1080p, 1280 × 720p |
| Supplement light | IR |
| WDR | Support |
| FOV | Horizontal: 124°, vertical: 75° |
| Audio quality | Noise suppression and echo cancellation |
| User capacity | 2000 |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | 802.11 b/g/n |
| Lock control | 2 |
| Exit button | 2 |
| Door contact | 2 |
| Alarm input | 4 |
| RS-485 | 1 |
| Button | 1 |
| Power supply | Standard PoE (802.3af) / 12 VDC |
| Power consumption | < 10 W |
| Protection level | IP65, IK08 |
| Working temperature | -40 °C to 53 °C |
| Dimensions | 174 mm × 91 mm × 29 mm |
| Installation | Surface mounting |
| Indoor station | |
| Model | DS-KH6320-WTE(B) |
| Screen size | 7-inch colorful TFT |
| Operation method | Capacitive touch screen |
| Resolution | 1024 × 600 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked door station capacity | 17 |
| Wi-Fi | 802.11 b/g/n |
| Alarm input | 8 |
| RS-485 | 1 |
| TF card | Up to 128 G |
| Relay | 2 relays, max. 30 VDC 0.3 A |
| Power supply | Standard PoE (802.3af) / 12 VDC |
| Power consumption | ≤ 12 W |
| Working temperature | -10 °C to 50 °C |
| Dimensions (W × H × D) | 200 mm × 140 mm × 23.3 mm |
| Kit | |
| In the box | 4-port standard PoE switch, surface box, administrator card, 5 key fobs, power supply |
Know before you buy
Quick answers about the DS-KIS604-S, and how it compares.
Can I answer the door on my phone?
Yes. With the free Hik-Connect app you see the visitor, talk and open the door from your phone, at home or away.
What cable does it need?
A network cable (Cat5e or Cat6) to a switch. With a standard PoE switch the same cable powers it, so no adaptor is needed.
How many homes can it call?
One home: it has one call button. For two homes sharing a gate (ground and first floor, or two flats side by side), see the 2-button door stations in our door stations.
Can it open the door or gate?
Yes. The door station has 2 lock outputs and 2 exit button inputs: one gate and one door, opened from the monitor or the app.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
