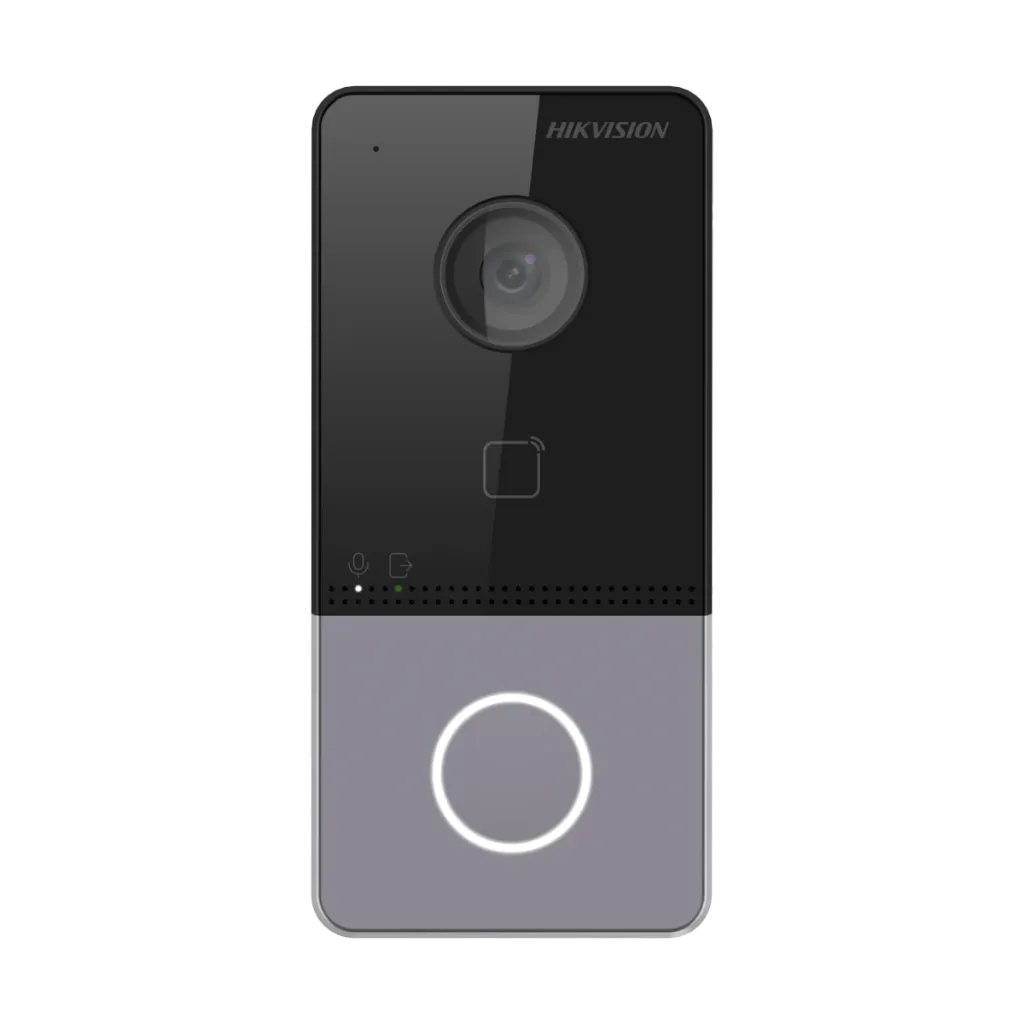

DS-KV6113-WPE1
IP villa door station, 2MP, Wi-Fi and PoE
- 2MP camera, IR night vision 3 m, WDR 120 dB
- One call button, card unlock
- PoE or Wi-Fi
- IP65, -40 to 55 °C
DS-KV6113-WPE1
IP villa door station, 2MP, Wi-Fi and PoE
- 2MP camera, IR night vision 3 m, WDR 120 dB
- One call button, card unlock
- PoE or Wi-Fi
- IP65, -40 to 55 °C
Key specs
- IP villa door station, 2MP (1080p), WDR 120 dB
- IR night vision up to 3 m
- One call button; card reader, 10,000 cards, 2,000 users
- 1 lock relay (30 VDC, 2 A), exit button and door contact inputs
- Wi-Fi or wired network; standard PoE (802.3af) or 12 VDC
- 4 alarm inputs, RS-485, tamper
- Hik-Connect app
- IP65; -40 to 55 °C
- 138 x 65 x 27 mm, surface mounting
| Specifications | |
|---|---|
| Lens | 1 |
| Resolution | Main stream: 1920 × 1080p, 720p; sub stream: 640 × 480p |
| FOV | Horizontal: 131°, vertical: 78° |
| Wide dynamic range (WDR) | 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
| Card capacity | 10000 |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm input | 4 |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 1 |
| RS-485 | 1 |
| Lock control | 1 relay, max. 30 VDC 2 A |
| Door contact input | 1 |
| Button | 1 physical button |
| Installation | Surface mounting |
| Protective level | IP65 |
| Working temperature | -40 °C to 55 °C |
| Working humidity | 10% to 95% (no-condensing) |
| Dimensions (W × H × D) | 138 mm × 65 mm × 27 mm |
| Application environment | Outdoor |
| Power consumption | < 10 W |
| Power supply | 12 VDC, standard PoE (802.3af) |
Know before you buy
Quick answers about the DS-KV6113-WPE1, and how it compares.
Can I answer the door on my phone?
Yes. With the free Hik-Connect app you see the visitor, talk and open the door from your phone, at home or away.
What cable does it need?
A network cable (Cat5e or Cat6) to a switch. With a standard PoE switch the same cable powers it, so no adaptor is needed.
How many homes can it call?
One home: it has one call button. For two homes sharing a gate (ground and first floor, or two flats side by side), see the 2-button door stations in our door stations.
Can it open the door or gate?
Yes. It has 1 lock relay (30 VDC, 2 A), an exit button input and a door contact input; open by card, from the indoor station or the app.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
