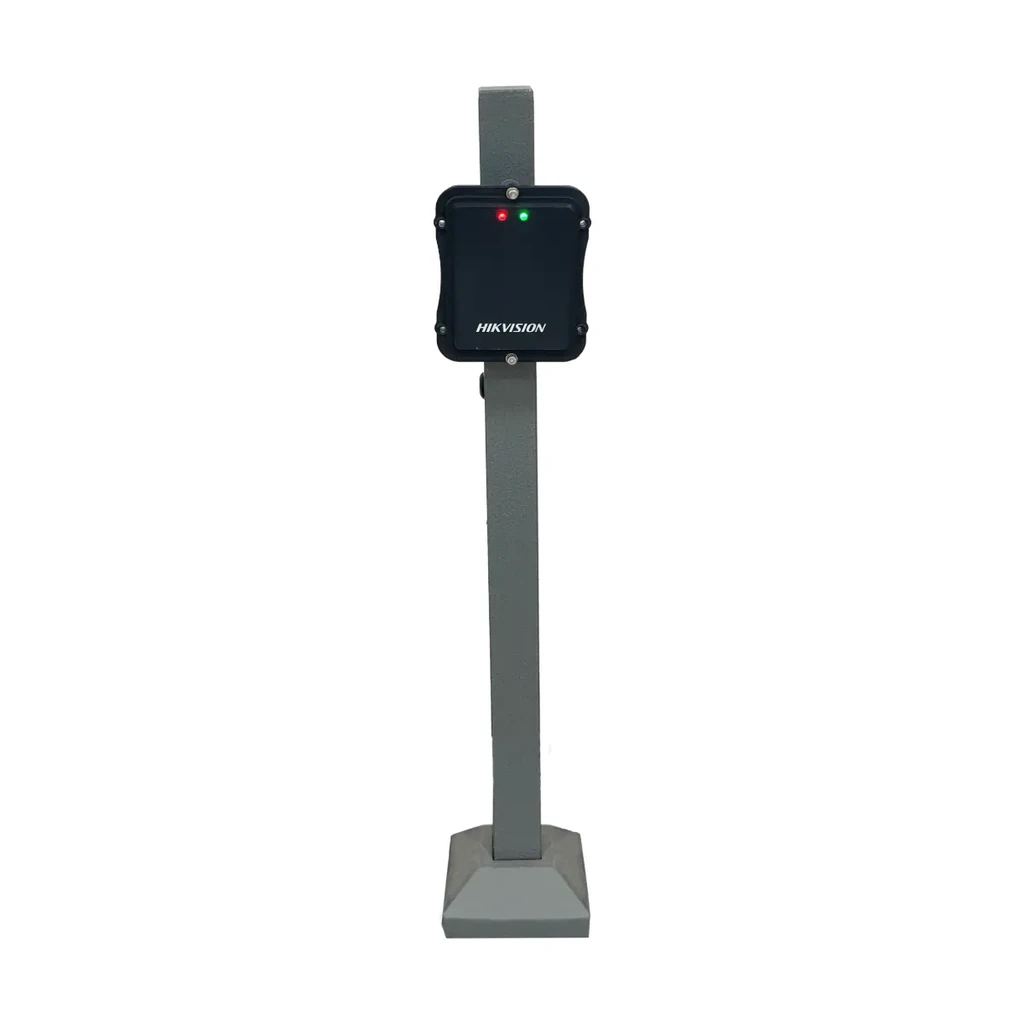

DS-TMG034/60G
60 GHz trigger radar, opens the barrier when a car arrives, Wi-Fi setup
- Opens the barrier when a vehicle or person reaches the lane, no loop in the road
- 60 GHz radar, 50 ms response, 0.3 to 6 m range, 0 to 2 m width, all adjustable
- Tells entry from exit; separates following cars 0.5 to 2 m apart
- Set up from the phone app over Wi-Fi, or by RS-485; no learning period
- -40 to +85 °C, unaffected by sun, dust, rain or snow
DS-TMG034/60G
60 GHz trigger radar, opens the barrier when a car arrives, Wi-Fi setup
- Opens the barrier when a vehicle or person reaches the lane, no loop in the road
- 60 GHz radar, 50 ms response, 0.3 to 6 m range, 0 to 2 m width, all adjustable
- Tells entry from exit; separates following cars 0.5 to 2 m apart
- Set up from the phone app over Wi-Fi, or by RS-485; no learning period
- -40 to +85 °C, unaffected by sun, dust, rain or snow
Key specs
- Trigger radar: signals the barrier when a vehicle or person reaches the lane
- 60 GHz radar, vertical beam 10°, horizontal 38°, 50 ms response
- Trigger distance 0.3 to 6 m and detection width 0 to 2 m, both adjustable
- Recognises direction of travel, for mixed entry and exit lanes
- Vehicle following: separates cars 0.5 to 2 m apart (adjustable)
- Setup by RS-485 or Wi-Fi with the phone app; upgrade by serial port; no learning period
- LED status indicators; settings kept through a power cut
- 9 to 12 V DC, under 3 W; -40 to +85 °C
- 136.9 x 112.4 x 29 mm; 0.4 kg
Know before you buy
Quick answers about the DS-TMG034/60G (Trigger Radar), and how it compares.
What does a trigger radar do?
It detects a car or a person arriving at the lane and gives the barrier or the parking controller a signal, the same signal a loop detector gives. Used for free-flow exit lanes, or to wake the ANPR camera.
Trigger radar or anti-fall radar?
Trigger opens or signals on arrival and faces the approach. Anti-fall holds the boom up over the car and sits at the boom. Same hardware, different mode; many lanes use one of each. The anti-fall version is the DS-TMG034/60G (Anti-fall Radar).
Does it replace the loop detector?
Yes, on the approach side. No cutting the road, and it sees people as well as cars.
What is the difference between DS-TMG035 and DS-TMG034?
Same job and the same radar figures. DS-TMG035 is set up over Bluetooth, takes 9 to 32 V DC, is IP67 and smaller. DS-TMG034 is set up over Wi-Fi and takes 9 to 12 V DC. The /60G versions of the DS-TMG034 use a 60 GHz radar instead of 79 GHz.
Does rain, fog or sun affect it?
No. Radar is not affected by light, dust, rain, snow or electromagnetic interference. Working range -40 to +85 °C.
How is it set up?
Mount it on the barrier housing facing the lane, power it, then set the distance and width in the phone app over Wi-Fi (or by RS-485). Settings are kept after a power cut.
Can I buy it online?
Barrier gates and their accessories are installed products, so we start with a free pre-sales consultation: our engineers confirm the right radar and mode for your lane and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
