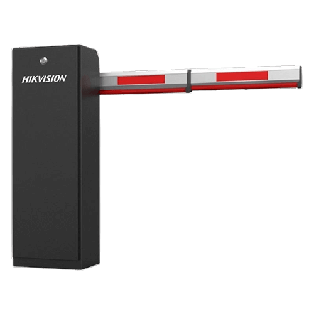

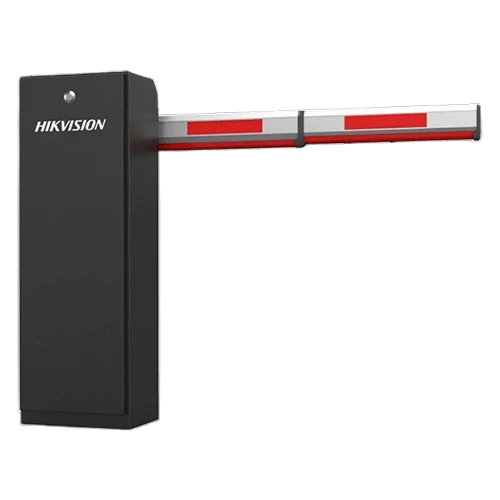

Hikvision DS-TMG4B0-LA Left Side Digital Barrier Gate, medium speed, straight boom pole: 3 m, Boom Pole Height 890 mm, black, IP54.
|
Barrier Housing Specification |
||
|
Material |
CRS (Cold Rolled Steel) |
|
|
Boom Pole Height |
890 mm |
|
|
Material Thickness |
1.5 mm |
|
|
Metal Door Thickness |
1.2 mm |
|
|
Color |
Black background and silver pattern |
|
|
Surface Protection |
Stoving varnish |
|
|
Pole Specification |
||
|
Material |
6063 |
|
|
Type |
86 × 44 mm |
|
|
Length |
3 m |
|
|
Shape |
Octagonal boom pole |
|
|
Dimension |
3 m |
|
|
Technical Specification |
||
|
Interface |
Induction |
Supported |
|
IR |
Supported |
|
|
Controller |
Rise / Fall / Stop |
|
|
Performance |
Max. Daily Cycles |
14,400 |
|
Working Temperature |
-30 °C to 70 °C (-22 °F to 158 °F) |
|
|
Ingress Protection |
IP54 |
|
|
Remote Control Frequency |
430.5 MHz |
|
|
Design Life |
2,500,000 |
|
|
Package |
Weight |
41 kg (90.4 lb.) |
|
Package Dimension |
380 × 325 × 1,085 mm (15.0 × 12.8 × 42.7 inch) |
|
|
General |
Power Supply |
220 Vac ± 15% |
|
Consumption |
60 W |
|
|
Rising Speed |
3 s |
|
|
Falling Speed |
3 s |
|
|
Max. Boom Pole Length |
4 m |
|
|
Type |
Straight boom pole |
|
|
Electric Current |
1 A |
|
