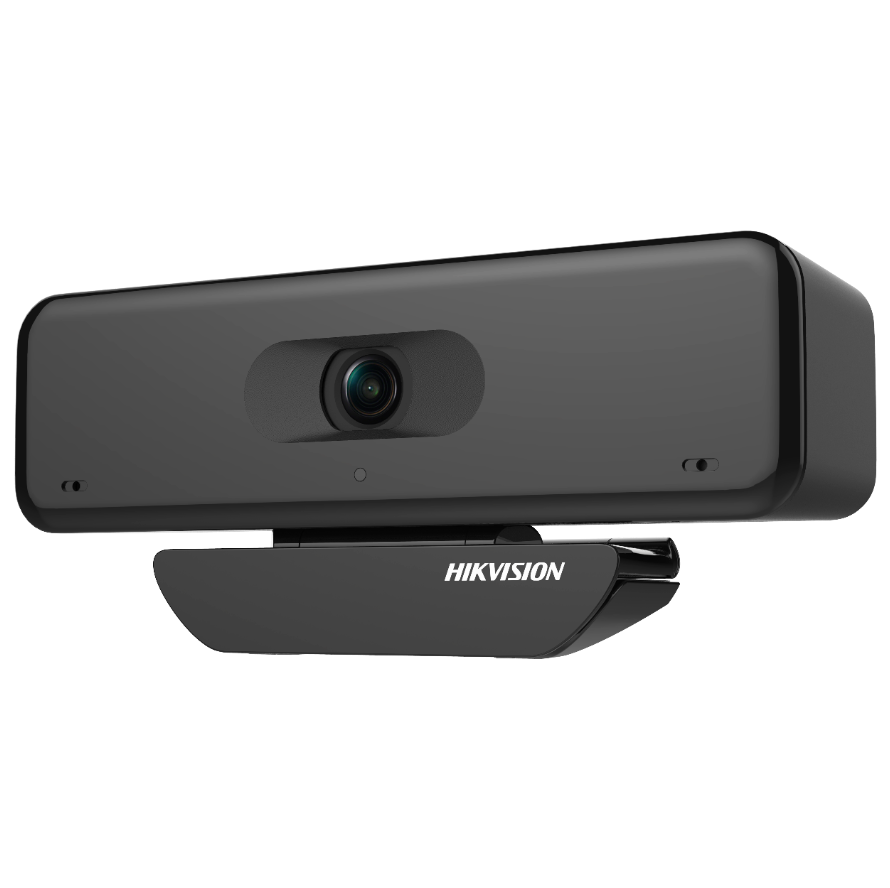

DS-U18

4K USB Camera, 8MP CMOS, High quality imaging with 3840 × 2160 resolution, Min. illumination: 0.1 Lux @ (F1.2, AGC ON), AGC for self-adaptive brightness, Built-in microphone with clear sound, Type-C interface, supporting USB 3.0 and USB 2.0 protocols. Plug-and-play, no need to install driver software.

https://www.esco.pk/web/image/product.template/7215/image_1920?unique=a41cdf3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Camera

    Image Sensor

    8 MP CMOS

    Signal System

    PAL/NTSC

    Frame Rate

    USB 3.0: MJPEG:

    3840 × 2160 @ 30 fps/25 fps

    1920 × 1080 @ 30 fps/25 fps

    1280 × 720 @ 30 fps/25 fps

    640 × 480 @ 30 fps(default)/25 fps YUV:

    1920 × 1080 @ 30 fps/25 fps

    1280 × 720 @ 30 fps/25 fps

    640 × 480 @ 30 fps/25 fps



    USB 2.0: MJPEG:

    1920 × 1080 @ 30 fps/25 fps

    1280 × 720 @ 30 fps/25 fps

    640 × 480 @ 30 fps(default)/25 fps YUV:

    1920 × 1080 @ 5 fps

    1280 × 720 @ 10 fps/5 fps

    640 × 480 @ 30 fps/25 fps

    Resolution

    3840 (H) × 2160 (V)

    Min. Illumination

    0.1 Lux @ (F1.2, AGC ON)

    Shutter Time

    PAL: 1/25 s to 1/50,000 s
    NTSC: 1/30 s to 1/50,000 s

    Lens

    3.6 mm fixed focal lens

    Field of View

    horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 92°

    Lens Mount

    M16

    Day & Night

    Color

    Angle Adjustment

    Pan: 0°; tilt: -10° to 30°; Rotation: 0°

    Cable Length

    2 m

    Depth of Field

    2 m to ∞

    Interface

    Video Output

    USB 3.0

    Audio In

    Built-in mic

    Operating System

    Windows 7/10, Android, Linux

    General

    Operating Conditions

    -10°C to 45°C, Humidity: 90% or less (non-condensing)

    Power Supply

    DC 5V ± 15% (USB)

    Consumption

    Max. 2.2 W

    Dimension

    130 mm × 53.2 mm × 56.6 mm (5.12" × 2.09" × 2.23")

    Weight

    Approx. 137 g (0.30 lb)

    Accessory

    Packing List

    Camera × 1 USB cable × 1

    Quick Start Guide × 1

    Function

    LED Indicator

    Red: Standby

    Blue: Normally Working

    White Balance

    Auto
