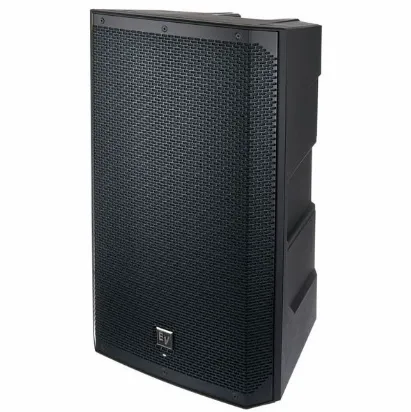

ELX200-15P-EU
Powered speaker, 15-inch, 1200 W
15" two-way, 1200 W | 132 dB max | 48 Hz to 19 kHz | 90° x 60° | App control
ELX200-15P-EU
Powered speaker, 15-inch, 1200 W
15" two-way, 1200 W | 132 dB max | 48 Hz to 19 kHz | 90° x 60° | App control
Electro-Voice ELX200-15P-EU Product Highlights
Explore the key capabilities of the Electro-Voice ELX200-15P-EU powered speaker.
132 dB Output
1200 W Class-D: 132 dB max, 48 Hz to 19 kHz.
DSP Presets
Music, Live, Speech, Club plus 5 user presets.
App Control
QuickSmart Mobile app controls up to 6 ELX200 units.
Inputs
Two XLR / TRS combo inputs, stereo RCA, XLR link output.
Mounting
Three M10 points and a pole mount.
Add Bass
Pair with the ELX200-18SP-EU 18" subwoofer.
Key specs
- 15" woofer + 1" titanium compression driver
- 1200 W Class-D, 132 dB max SPL
- 48 Hz to 19 kHz (-10 dB)
- 90° x 60° coverage
- Presets Music, Live, Speech, Club + 5 user presets, 3-band EQ
- Bluetooth Low Energy app control of up to 6 ELX200 units (no audio streaming)
- Inputs 2 XLR / TRS combo, stereo RCA; XLR output
- 3 x M10 suspension points, pole mount
- 710 x 423 x 384 mm, 18.9 kg
|
Electrical |
|
|
Rated power |
20 / 10 / 5 / 2.5 W |
|
Sound pressure level at 20 W / 1 W (1kHz, 1 m) |
100 dB / 87 dB (SPL) |
|
Sound pressure level at 20 W / 1 W (1kHz, 4 m) |
91 dB / 78 dB (SPL) |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
220° / 65° |
|
Effective frequency range (-10 dB) |
75 Hz to 20 kHz |
|
Rated voltage |
100V |
|
Rated impedance |
20 W: 500 Ohm 10 W: 1000 Ohm 5 W:
2000 Ohm |
|
Connector |
3‑pole screw terminal |
|
Mechanical |
|
|
Dimensions (D x L) |
185 x 300 mm (7.3 x 11.8 in.) |
|
Weight |
3 kg (6.6 lb) |
|
Color |
White (RAL 9010) |
|
Material |
ABS |
|
Environmental |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
Know before you buy
Quick answers about the ELX200-15P-EU, and how it compares.
Where does the ELX200-15P fit?
The step up from EVIVA 15P-EU: 6 dB more output (132 dB), presets and app control. Without mains power, EVERSE12-EU.
Which subwoofer goes with it?
The ELX200-18SP-EU: its low-pass sets to 80, 100, 120 or 150 Hz, both have a sub / top system-match setting, and its M20 pole plate takes the 15P above it.
Does it stream Bluetooth music?
No. Bluetooth is for app control only. For music streaming, EVERSE12-EU.
Which Electro-Voice portable speaker?
| Model | Type | Amplifier | Max SPL | Frequency range | Coverage | Power | Weight |
|---|---|---|---|---|---|---|---|
| EVERSE12-EU | 12" two-way, battery, 4-ch mixer | 400 W | 126 dB | 45 Hz to 20 kHz | 100° x 60° | Battery or mains, IP43 | 14.2 kg |
| EVIVA 15P-EU | 15" two-way | 1000 W peak | 126 dB | 45 Hz to 20 kHz | 90° x 60° | Mains | 14.6 kg |
| ELX200-15P-EU | 15" two-way | 1200 W | 132 dB | 48 Hz to 19 kHz | 90° x 60° | Mains | 18.9 kg |
| ELX200-18SP-EU | 18" subwoofer | 1200 W | 132 dB | 40 Hz to 145 Hz | - | Mains | 29 kg |
No mains power or outdoors: EVERSE 12. Mains events: EVIVA 15P for entry level, ELX200-15P for 6 dB more output, presets and app control, with the ELX200-18SP subwoofer.
Who supplies Electro-Voice in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every Electro-Voice product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed. We help with system design and installation. Prices are quoted per project: contact us for a quote, or see the full Electro-Voice range.
