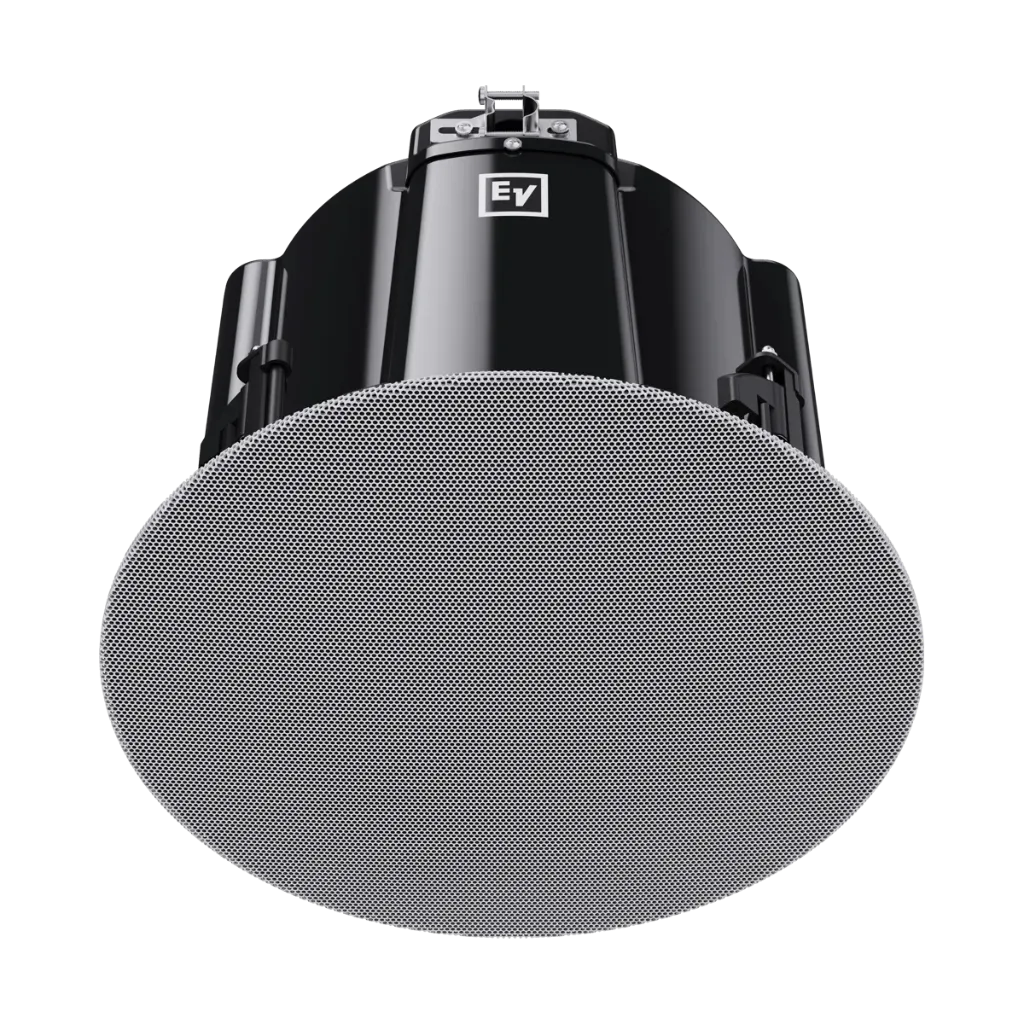

Electro‑Voice EVID‑C8.2‑G2 Loudspeaker
The Electro‑Voice EVID‑C8.2‑G2 is a high‑performance 8‑inch coaxial two‑way ceiling loudspeaker engineered for exceptional sound quality, reliability, and modern aesthetics. Perfect for commercial audio installations, it delivers clear full‑range sound while blending seamlessly into any environment.
Available in white finish, with an optional black grille sold separately for design flexibility.
Electro-Voice EVID-C8.2-G2
Everything you need to know about this 8" ceiling subwoofer before specifying it for your project.
It delivers full-range sound with a two-way coaxial design and point-source construction for improved off-axis response. With 90° conical coverage, it's built for focused, uniform coverage across 60Hz to 20,000Hz at up to 116dB peak. Supplied and sold in pairs.
An internal transformer offers selectable taps of 3.75W (70V only), 7.5W, 15W, 30W and 60W, with an 8-ohm bypass for low-impedance systems. The tap is set by a switch on the front baffle, so power can be adjusted after installation without removing the unit.
The SwiftLock mounting system, along with the included tile rail and C-ring, makes fitting quick and secure in drop ceilings 0.5" to 1.5" thick. The bezel-less design with magnetic grille sits flush for a clean finish, and UL 2043 certification allows installation in air-handling plenum spaces.
Each pair ships with 2 ceiling loudspeakers, 2 magnetic grilles, 4 ceiling tile rails, 2 C-rings, 4 screws, a cutout template, 2 paint covers, and a quick installation guide.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install distributed ceiling audio for offices, hotels, retail and auditoriums, with genuine warranty support and after-sales service nationwide.
Premium 8‑Inch Ceiling Subwoofer
Complete two-way coaxial ceiling speaker delivering excellent sound quality, reliability, and first-class aesthetics. Sold as a pair — built for demanding commercial audio systems.
SPL & Frequency Response
Range: 45 Hz – 380 Hz
Max SPL (Continuous): 113 dB
Sensitivity (1 W/1 m): 90 dB
Coverage Angle: 360° omnidirectional
SwiftLock Mounting System
The SwiftLock system allows fast, secure installation, saving time while ensuring safety.
Point‑Source Design for Uniform Coverage
Its point‑source design improves off‑axis response and provides consistent coverage across rooms.
Flexible Power Options
Selectable transformer taps: 3.75, 7.5, 15, 30, 60 W. Works with 70‑V, 100‑V lines, or 8‑ohm bypass via a front baffle switch.
Durable Construction & Elegant Finish
Grille: Semi‑gloss white powder‑coated (black optional).
Baffle: UL 94V‑0 ABS, fire‑rated.
Rear Enclosure: Heavy‑gauge steel.
Easy Connectivity
Side cover with 4‑pin terminal block supports 12‑gauge wiring and pass‑through to additional speakers.
Safe Ceiling Installation
Includes mounting ring and tile bridge for secure suspension in drop ceilings.
Complete System Integration
Part of the EVID series, integrates with other ceiling, surface‑mount, and in‑wall speakers for complete audio solutions.
Technical Specifications
| Specification | Value |
|---|---|
| Product | EVID-C8.2-G2 Ceiling Speaker 8" 70/100V White |
| LF Transducer Size | 8 in |
| HF Transducer Size | 1 in |
| Frequency Range (-10 dB) | 60 Hz – 20,000 Hz |
| Coverage Angle (Conical) | 90° |
| Recommended High Pass | 50 Hz |
Electrical Specifications
| Specification | Value |
|---|---|
| Maximum SPL (Continuous) | 110 dB |
| Maximum SPL (Peak) | 116 dB |
| Sensitivity (1 W, 1 m) | 90 dB SPL (1 W, 1 m) |
| Power Handling (Continuous) | 90 W |
| Power Handling (Peak) | 360 W |
| Long Term Power Handling (Continuous) | 75 W |
| Long Term Power Handling (Peak) | 300 W |
| Nominal Impedance (Low Z) | 8 Ω |
| Transformer Taps – 70 V Line | 60 W; 30 W; 15 W; 7.5 W; 3.75 W |
| Transformer Taps – 100 V Line | 60 W; 30 W; 15 W; 7.5 W |
| Connector Type | 4-pin Euroblock – Input + Pass Through |
| Wire Size | 12 AWG (maximum) |
| Wire Diameter | 3.3 mm² (maximum) |
Mechanical Specifications
| Specification | Value |
|---|---|
| Material | Steel |
| Grille Material | Powder Coated Steel |
| Color | White; Customized Colors |
| Color (RAL) | RAL 9003 Signal White |
| Mounting Cutout | 10.70 in / 272 mm |
| Dimensions (Ø × D) | 11.9 in × 9.8 in / 302 mm × 249.2 mm |
| Mounting Depth | 9.6 in / 244 mm |
| Ceiling Thickness | 0.5 in – 1.5 in / 12.5 mm – 38 mm |
| Weight | 15.4 lb / 7 kg |
| Shipping Weight | 36.4 lb / 16.5 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| IP Rating | IP34 |
| Weatherization | Indoor |
| Operating Temperature | 32 °F – 122 °F / 0 °C – 50 °C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety Agency Ratings | UL 1480A |
| Air-Handling Spaces | Safe for use per UL 2043 |
| CSA Certification | CSA C22.2 No. 205 |
| IEC Standard | IEC 62368-1 |
