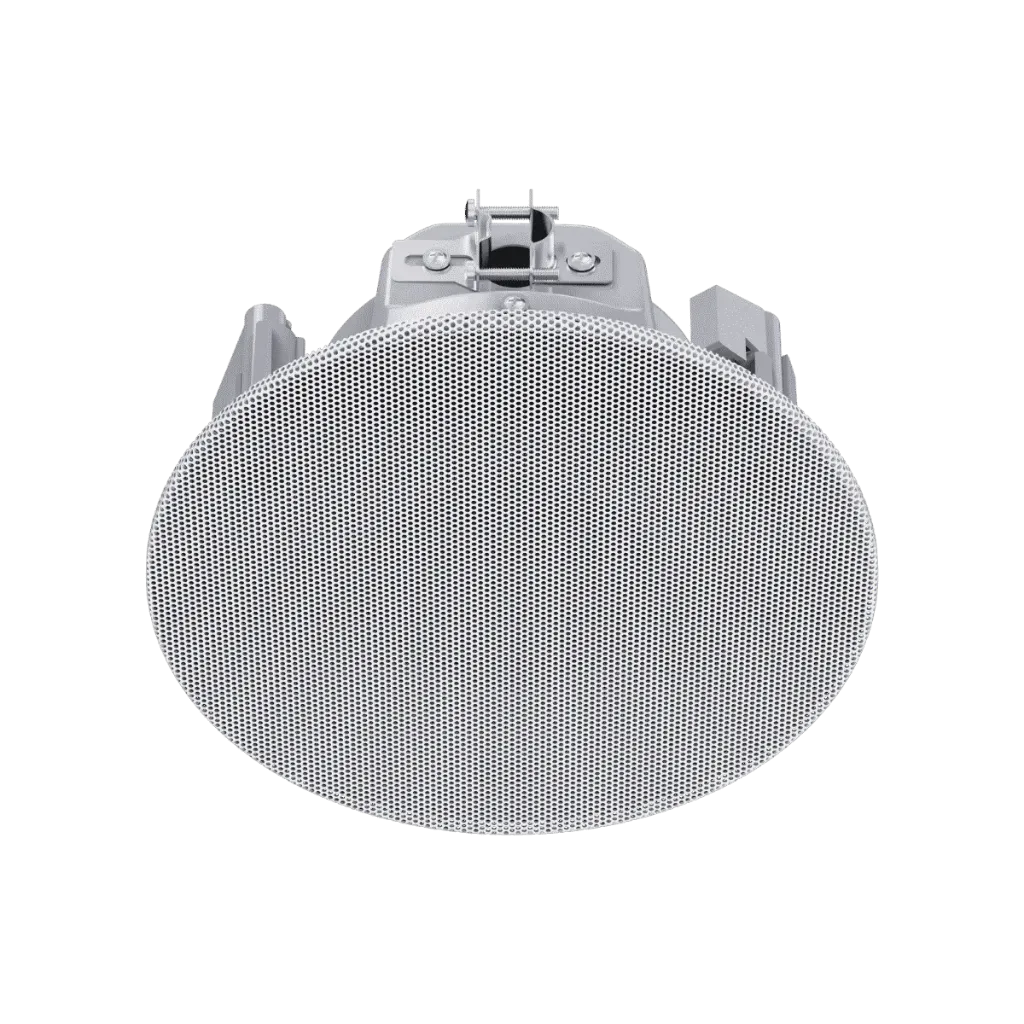

Electro‑Voice EVID‑EC3.1 Ceiling Speaker
The Electro‑Voice EVID‑EC3.1 is a premium 3‑inch ceiling speaker designed to deliver clear, full‑range audio in a compact form factor. Engineered for commercial installations, it combines outstanding sound quality with reliability and sleek aesthetics, making it ideal for background music and voice reinforcement in modern environments.
Available in white finish, with an optional black grille sold separately for versatile design integration.
Electro‑Voice EVID‑EC3.1 Ceiling Speaker
Everything you need to know about this 3" ceiling subwoofer before specifying it for your project
It delivers full-range background music and paging in commercial ceiling installations. A 3-inch coaxial driver with 135° conical coverage spreads sound evenly across the room, covering 90Hz to 19,000Hz at up to 106dB peak. Supplied and sold in pairs.
An internal transformer offers selectable taps of 0.9W (70V only), 1.88W, 3.75W, 7.5W and 15W, with an 8-ohm bypass for low-impedance systems. The tap is set by a switch on the front baffle, so power can be adjusted after installation without removing the unit.
The included tile rail, C-ring, and mounting ring make fitting quick and secure in drop ceilings 0.5" to 1.5" thick. The bezel-less design with magnetic grille sits flush for a clean finish, and UL 2043 certification allows installation in air-handling plenum spaces.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install distributed ceiling audio for offices, hotels, retail and auditoriums, with genuine warranty support and after-sales service nationwide.
Premium 3-Inch Ceiling Speaker
Compact 3-inch coaxial ceiling speaker delivering full-range sound, reliability, and first-class aesthetics. Sold as a pai
— perfect for commercial audio systems.
SPL & Frequency Response
Range: 90 Hz – 19,000 HzMax SPL (Continuous): 100 dB
Max SPL (Peak): 106 dB
Sensitivity (1 W/1 m): 84 dB
Coverage Angle: 135° conical
Bezel-Less Mounting System
The bezel-less design with easy-attach magnetic grille allows fast, secure installation while keeping a clean, near-invisible ceiling finish.

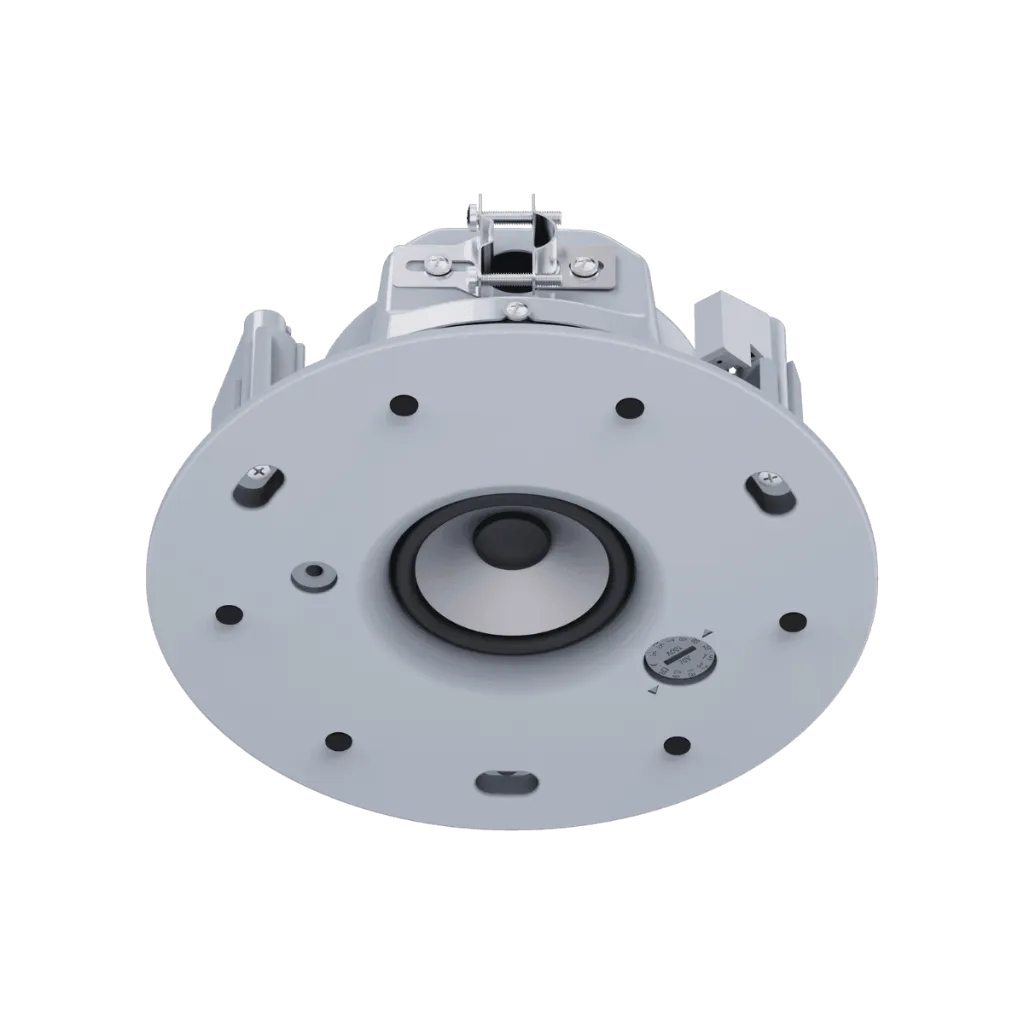

Two-Way Coaxial Design for Balanced Coverage
IIts two-way coaxial design improves off-axis response and delivers consistent 135° coverage across the room.
Flexible Power Options
Selectable transformer taps: 0.9, 1.88, 3.75, 7.5, 15 W. Works with 70-V, 100-V lines, or 8-ohm bypass via a front baffle switch.
Durable Construction & Elegant Finish
Grille: Semi-gloss white powder-coated steel (custom colors available).
Baffle: UL 94V-0 rated ABS, fire-rated.
Rear Enclosure: Heavy-gauge coated steel.

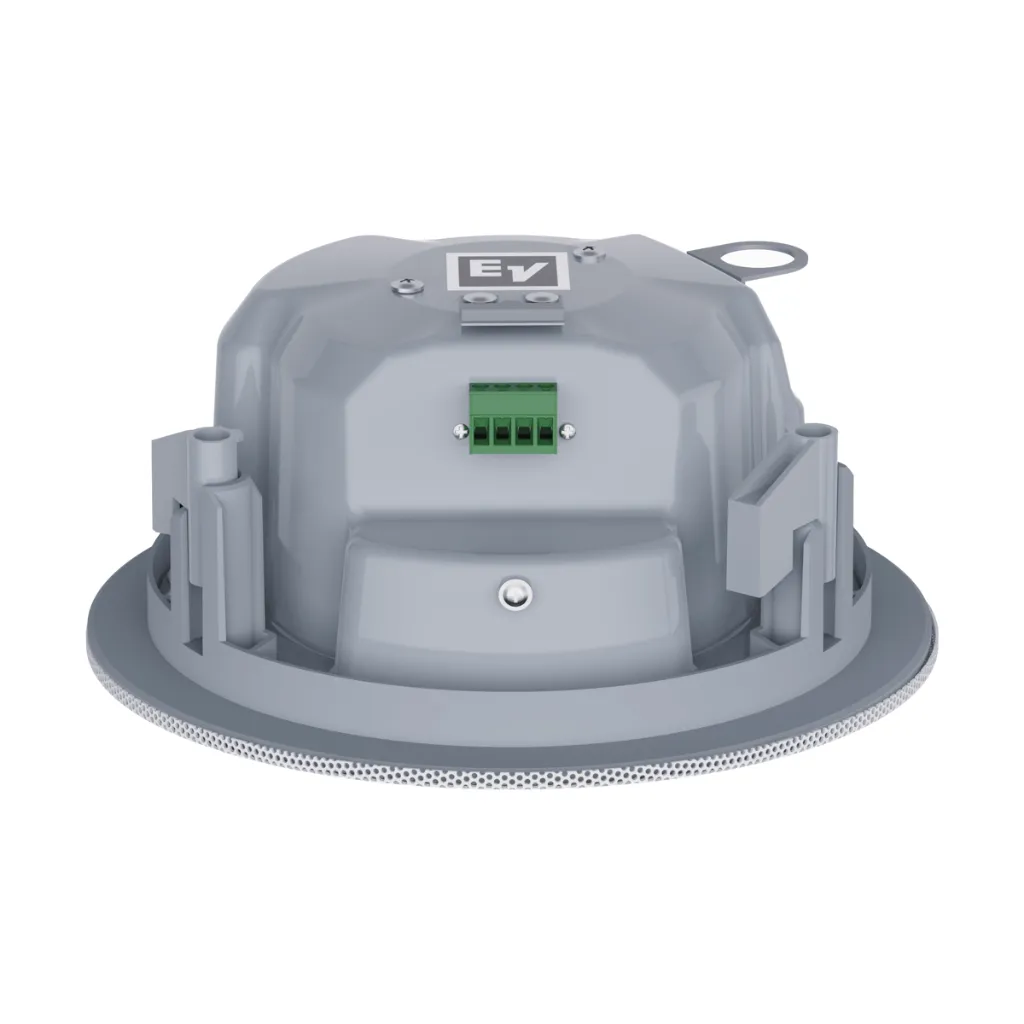

Easy Connectivity
Side terminal-cover with 4-pin Euroblock connector supports 12-gauge wiring and pass-through to additional speakers.
Safe Ceiling Installation
Includes mounting ring, tile bridge, tile rail, and C-ring for secure suspension in drop ceilings 0.5"–1.5" thick.
Complete System Integration
Part of the EVID series, integrates with other EVID surface-mount and in-wall speakers for a complete audio solution..
Technical Specifications
| Specification | Value |
|---|---|
| Product | EVID-EC3.1 Ceiling Speaker 3" 70/100V White |
| LF Transducer Size | 3 in |
| Frequency Range (-10 dB) | 90 Hz – 19,000 Hz |
| Coverage Angle (Conical) | 135° |
| Recommended High Pass | 110 Hz |
Electrical Specifications
| Specification | Value |
|---|---|
| Maximum SPL (Continuous) | 100 dB |
| Maximum SPL (Peak) | 106 dB |
| Sensitivity (1 W, 1 m) | 84 dB SPL (1 W, 1 m) |
| Power Handling (Continuous) | 40 W |
| Power Handling (Peak) | 160 W |
| Long Term Power Handling (Continuous) | 25 W |
| Long Term Power Handling (Peak) | 100 W |
| Nominal Impedance (Low Z) | 8 Ω |
| Transformer Taps – 70 V Line | 15 W; 7.5 W; 3.75 W; 1.88 W; 0.9 W |
| Transformer Taps – 100 V Line | 15 W; 7.5 W; 3.75 W; 1.88 W |
| Connector Type | 4-pin Euroblock – Input + Pass Through |
| Wire Size | 12 AWG (maximum) |
| Wire Diameter | 3.3 mm² (maximum) |
Mechanical Specifications
| Specification | Value |
|---|---|
| Material | Steel |
| Grille Material | Powder Coated Steel |
| Color | White; Customized Colors |
| Color (RAL) | RAL 9003 Signal White |
| Mounting Cutout | 7.20 in / 183 mm |
| Dimensions (Ø × D) | 8.4 in × 3.9 in / 212 mm × 98.3 mm |
| Mounting Depth | 3.7 in / 93 mm |
| Ceiling Thickness | 0.5 in – 1.5 in / 12.5 mm – 38 mm |
| Weight | 4.60 lb / 2.10 kg |
| Shipping Weight | 13.20 lb / 6 kg |
Environmental Specifications
| Specification | Value |
|---|---|
| IP Rating | IP45 |
| Weatherization | Indoor |
| Operating Temperature | 32 °F – 122 °F / 0 °C – 50 °C |
Safety & Compliance
| Specification | Value |
|---|---|
| Safety Agency Ratings | UL 1480A |
| Air-Handling Spaces | Safe for use per UL 2043 |
| CSA Certification | CSA C22.2 No. 205 |
| IEC Standard | IEC 62368-1 |
