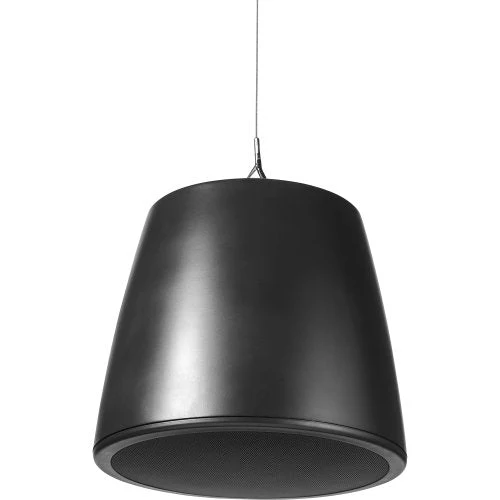

EVID-P6.2B
Pendant speaker, 6.5-inch, 30 W, black
6.5" + 1" two-way | 30 W max tap | 87 dB SPL (1W, 1m) | 60 Hz to 20 kHz | 115° coverage
EVID-P6.2B
Pendant speaker, 6.5-inch, 30 W, black
6.5" + 1" two-way | 30 W max tap | 87 dB SPL (1W, 1m) | 60 Hz to 20 kHz | 115° coverage
Electro-Voice EVID-P6.2B Product Highlights
Explore the key capabilities of the Electro-Voice EVID-P6.2B pendant speaker.
Two-Way Sound
6.5" cone and 1" titanium dome: 60 Hz to 20 kHz.
Wide Coverage
115° conical coverage from a hanging position.
70 V, 100 V or 8 Ohm
Taps 30, 15, 7.5, 3.7 W, plus 1.8 W on 70 V.
Hangs Anywhere
4.57 m steel cable included, 10 kg working load.
Protected Outdoor
Weatherised cone; optional cover raises it to IP65.
System
Mixes with EVID ceiling in-ceiling models on the same line.
Key specs
- 6.5" weatherised cone + 1" titanium dome, ported
- Taps 30/15/7.5/3.7 W, plus 1.8 W on 70 V; 8 ohm input
- 87 dB SPL at 1 W, 1 m
- 60 Hz to 20 kHz
- 115° conical coverage
- Power handling 75 W
- Indoor and protected outdoor; IP65 with optional weather cover
- 4.57 m steel suspension cable, 10 kg working load
- 301 x 310 mm (depth x diameter), 5.28 kg
- Black; white version EVID-P6.2W
|
Electrical |
|
|
Maximum power |
15 W |
|
Rated power |
10 / 5 / 2.5 W |
|
Sound pressure level at 10 W / 1 W (1kHz, 1 m) |
99 dB / 89 dB (SPL) |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
180° / 90° |
|
Effective frequency range (-10 dB) |
130 Hz to 20 kHz |
|
Rated voltage |
100 V |
|
Rated impedance |
1000 ohm |
|
Connection |
5 m 4-wire cable |
|
Mechanical |
|
|
Dimensions (D x L) |
185 x 157 mm (7.3 x 6.2 in) |
|
Weight |
2.5 kg (5.5 lb) |
|
Color |
White (RAL 9010) |
|
Environmental |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
Know before you buy
Quick answers about the EVID-P6.2B, and how it compares.
Where does the EVID-P6.2B fit?
The pendant of the EVID range, for open, exposed or very high ceilings: atriums, cafes with open ceilings, showrooms. 6.5" two-way, 60 Hz to 20 kHz, 115° coverage. White version: EVID-P6.2W (ask us).
How is it powered on a 70 V or 100 V line?
Taps 30, 15, 7.5 and 3.7 W, plus 1.8 W on 70 V, or 8 ohm.
How is it installed?
It hangs on the included 4.57 m steel cable (10 kg working load). Rated for indoor and protected outdoor use; the optional weather cover raises it to IP65.
Which EVID ceiling speaker for an office, school, restaurant or Masjid?
- Offices, meeting rooms, classrooms, corridors: EVID-EC4.2, 130° coverage for clear speech and background music.
- Small rooms and washrooms: EVID-EC3.1, IP45 and only 93 mm deep.
- Restaurants, shops and Masjid prayer halls, where music or the khutbah must be clear across a large floor: EVID-EC6.2.
- Premium music, higher ceilings: EVID-C8.2-G2, plus EVID-C8.1S-G2 for bass.
- Open or very high ceilings: the EVID-P6.2B pendant.
- Outdoor seating: EVID-S5.2TB or, fully exposed, EVID-S5.2XB.
How do the EVID ceiling speakers compare?
| Model | Drivers | Max tap | Sensitivity | Max SPL | Frequency range | Coverage | Cutout | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-EC3.1 | 3" one-way | 15 W | 84 dB | 100 dB | 90 Hz to 19 kHz | 135° | 7.2 in (183 mm) | IP45 |
| EVID-EC4.2 | 4" + 0.75" coaxial | 20 W | 89 dB | 106 dB | 80 Hz to 20 kHz | 130° | 7.2 in (183 mm) | IP34 |
| EVID-EC6.2 | 6.5" + 1" coaxial | 30 W | 92 dB | 110 dB | 80 Hz to 20 kHz | 110° | 10.7 in (272 mm) | IP34 |
| EVID-C8.2-G2 | 8" + 1" coaxial | 60 W | 90 dB | 110 dB | 60 Hz to 20 kHz | 90° | 10.7 in (272 mm) | IP34 |
| EVID-C8.1S-G2 | 8" subwoofer | 60 W | 90 dB | 113 dB | 45 Hz to 380 Hz | 360° | 12.7 in (322 mm) | IP34 |
| EVID-P6.2B | 6.5" + 1" pendant | 30 W | 87 dB | - | 60 Hz to 20 kHz | 115° | Pendant | Protected outdoor |
Frequency range at -10 dB, max SPL continuous. Every model takes 70 V or 100 V taps or 8 ohm.
Who supplies Electro-Voice in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every Electro-Voice product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed. We help with system design and installation. Prices are quoted per project: contact us for a quote, or see the full Electro-Voice range.
