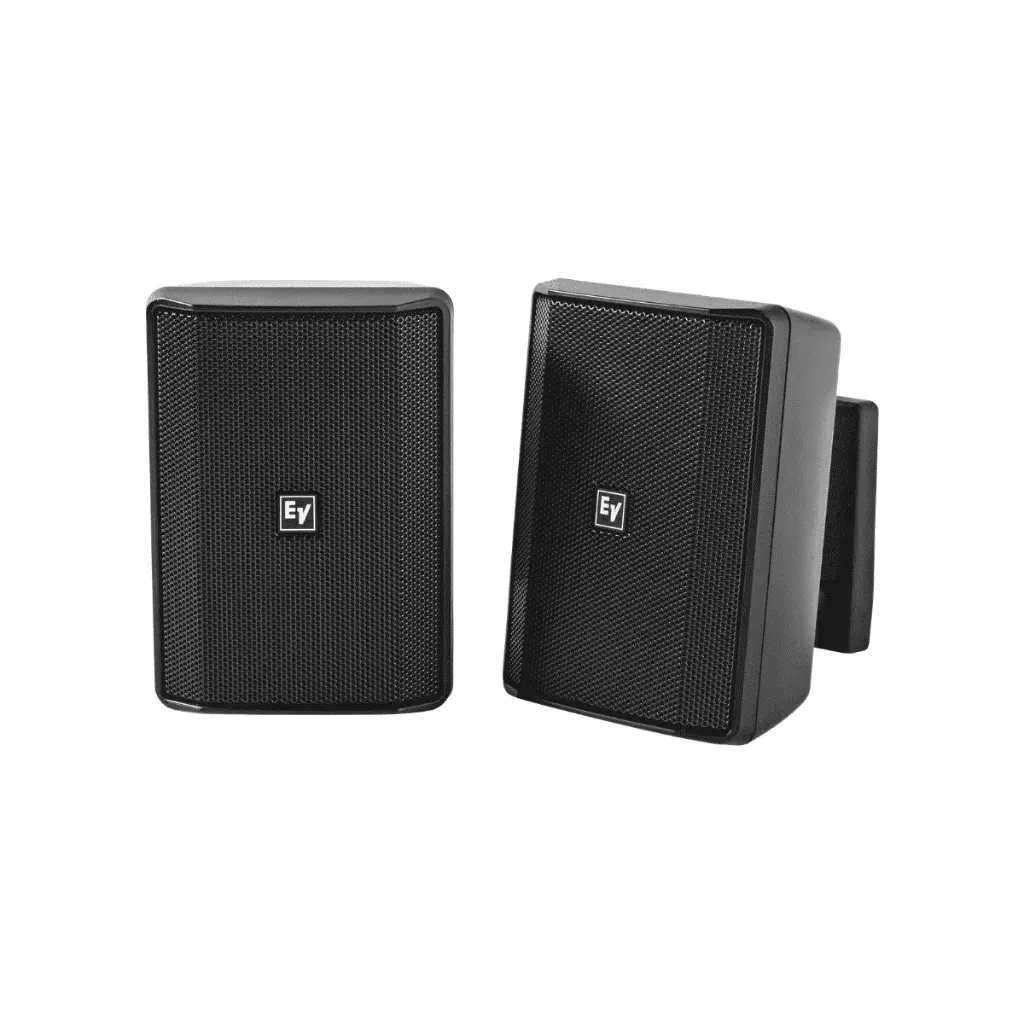

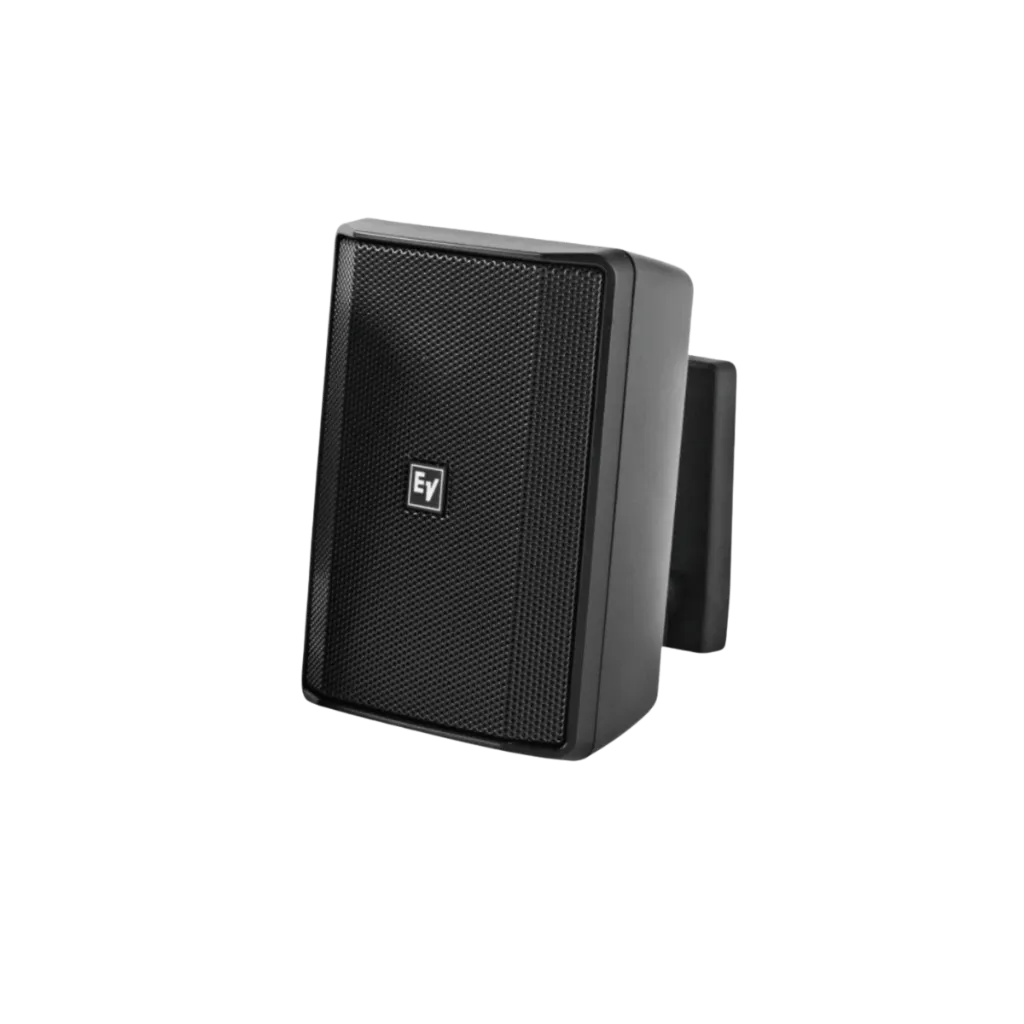

EVID-S4.2TB
Surface speaker, 4-inch, 15 W, black, pair
4" + 0.75" two-way | 15 W max tap | 86.5 dB SPL (1W, 1m) | 75 Hz to 20 kHz | IP54
EVID-S4.2TB
Surface speaker, 4-inch, 15 W, black, pair
4" + 0.75" two-way | 15 W max tap | 86.5 dB SPL (1W, 1m) | 75 Hz to 20 kHz | IP54
NEXT-GENERATION
EVID-S Subwoofers
EVID Surface Mount Speakers — Engineered for Every Environment
Electro-Voice EVID-S4.2TB Product Highlights
Explore the key capabilities of the Electro-Voice EVID-S4.2TB surface speaker.
Two-Way Sound
4" + 0.75" two-way: 75 Hz to 20 kHz, up to 98.5 dB.
Coverage
110° x 110°, 86.5 dB at 1 W.
70 V / 100 V
Taps 15/7.5/3.7 W (70 V), 15/7.5 W (100 V).
Weather
IP54 for indoor and sheltered outdoor use.
Quick Mounting
Bracket for wall or ceiling, adjustable 90° horizontal, 45° vertical.
Loop-Through
Two removable 4-pin Euroblocks: daisy-chain speakers on one line.
Mosques
Wide, even coverage for large prayer halls
and mosque interiors, ensuring azan
and khutbah reach every corner clearly
regardless of ceiling height or hall size.
Schools
Dependable PA and announcement coverage for
school hallways, corridors, and common areas,
built to run reliably all day across a
distributed 70V/100V line
without maintenance headaches
Hospitals
Clear, reliable paging and background audio for hospital corridors, waiting areas, and patient wings — where speech intelligibility for announcements matters as much as unobtrusive design that blends into a clinical interior.
Corporate Offices
Consistent background music and clear paging across open-plan offices, meeting corridors, and multi-floor business centers, supporting a professional atmosphere without drawing attention to the hardware itself.
Mosques
Wide, even coverage for large prayer halls
and mosque interiors, ensuring azan
and khutbah reach every corner clearly
regardless of ceiling height or hall size.
Schools
Dependable PA and announcement coverage for
school hallways, corridors, and common areas,
built to run reliably all day across a
distributed 70V/100V line
without maintenance headaches
Hospitals
Clear, reliable paging and background audio for hospital corridors,
waiting areas, and patient wings — where speech intelligibility
for announcements matters as much as unobtrusive
design that blends into a clinical interior.
Corporate Offices
Consistent background music and clear paging across open-plan offices,
meeting corridors, and multi-floor business centers, supporting a
professional atmosphere without drawing attention to the hardware itself.
Pre-Wired for Effortless Installation
Planning ahead saves time and money. With the EVID-S8.2TW, you don't need to wait until construction is finished to prep for audio — the wall mounting bracket and wiring terminal can be installed and wired during the construction or renovation phase, then simply capped and left flush in the wall. Once the space is finished — painted, furnished, ready to open — mounting the actual speaker takes just three simple steps and a few minutes per unit.
Step 1 — Mount the Wall Bracket & Connect Wiring
Secure the mounting bracket to the wall using standard fasteners, then connect your speaker wiring to the exposed terminal block. This step can be done early in the construction process, well before the speaker itself is installed — ideal for coordinating with electricians and contractors before walls are finished.
Step 2 — Protect the Terminal with the Included Cover
Once wiring is connected, snap the clear protective terminal cover into place over the connection points. This shields the wiring from dust and damage during the remaining construction or finishing work, and keeps the installation point clean and ready until you're set to mount the speaker.
Step 3 — Attach the Speaker Cabinet
When the space is ready, simply align the EVID-S8.2TW cabinet with the pre-installed bracket and press it firmly into place — no additional wiring, drilling, or hardware needed at this stage. The speaker locks securely onto the bracket, giving you a clean, professional installation in seconds.
Key specs
- 4" + 0.75" + two-way
- Taps 15/7.5/3.7 W (70 V), 15/7.5 W (100 V), no 8 ohm input
- 86.5 dB SPL at 1 W, 1 m; max 98.5 dB
- 75 Hz to 20 kHz (-10 dB)
- 110° x 110° coverage
- IP54
- 1.8 kg each, 193 x 140 x 118 mm
- Two 4-pin Euroblocks for loop-through, up to 12 AWG
- Sold in pairs
Technical Specifications
| Specification | Value |
|---|---|
| Product | EVID-S4.2T Speaker 4" Cabinet 70/100V Pair |
| Loudspeaker Type | Surface mount, two-way, full-range, internal passive crossover |
| LF Transducer Size | 4 in (102 mm) |
| HF Transducer Size | 0.75 in (20 mm) |
| Frequency Response (-3 dB) | 100 Hz – 20 kHz |
| Frequency Response (-10 dB) | 75 Hz – 20 kHz |
| Coverage Angle | Horizontal 110°, Vertical 110° |
| Recommended High-Pass | 70 Hz (24 dB/octave) |
Electrical Specifications
| Specification | Value |
|---|---|
| Sensitivity (1 W, 1 m) | 86.5 dB SPL |
| Max SPL (Calculated) | 98.5 dB |
| Max SPL (Peak) | 104.5 dB |
| Power Handling (Continuous) | 15 W (IEC 60268-5 pink noise, 100 hours) |
| Power Handling (Peak) | 60 W |
| Low Z | No |
| Input Transformer (70V/100V) | 15 W |
| Transformer Taps – 70V Line | 15 W; 7.5 W; 3.7 W |
| Transformer Taps – 100V Line | 15 W; 7.5 W |
| Connector Type | Captive screws on wall bracket |
| Wire Size | 12 AWG (2.5 mm²) maximum |
Mechanical Specifications
| Specification | Value |
|---|---|
| LF Cone Material | Weather-resistant polypropylene |
| Voice Coil | 1 in (25 mm) |
| HF Driver | Ferrofluid-cooled |
| Grille Material | Zinc-plated, powder coated for corrosion resistance |
| Mounting System | Ball-and-socket, quick attach/detach, no exposed wire |
| Mounting Adjustment | 90° horizontal, 45° vertical rotation |
| Enclosure Material | Fire-rated ABS plastic |
| Color | Black (RAL 9004) or White (RAL 9003); paintable |
| Dimensions (H × W × D) | 7.6 in × 5.5 in × 4.7 in / 193 mm × 140 mm × 118 mm (without brackets) |
| Net Weight | 4.0 lb / 1.8 kg |
| Shipping Weight (pair) | 11.9 lb / 5.4 kg |
| Included Hardware | Mounting bracket and 4mm Allen wrench |
| Packaged Quantity | 2 |
| Order Number | EVID-S4.2TB (Black) F.01U.332.732 / EVID-S4.2TW (White) F.01U.332.733 |
Environmental Specifications
| Specification | Value |
|---|---|
| IP Rating | IP54 (per IEC-60529) |
| Weather Resistance Testing | IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine) |
| Mounting Safety Testing | EIA 636 tested, 8:1 safety factor or better |
Know before you buy
Quick answers about the EVID-S4.2TB (Pair), and how it compares.
Where does the EVID-S4.2TB fit?
The compact model for close listeners: small rooms, patios, covered walkways. Wide 110° x 110° coverage, 98.5 dB max. For large spaces use EVID-S8.2TB.
How is it powered?
Taps 15, 7.5 and 3.7 W on 70 V, 15 and 7.5 W on 100 V. It is the only EVID surface speaker without an 8 ohm input.
How is it installed?
On the included pre-assembled ball-and-socket wall bracket, adjustable 90° horizontally and 45° vertically after mounting. IP54.
Which EVID surface speaker for my space?
- Small rooms, patios, covered walkways: EVID-S4.2TB.
- Restaurants, shops, gyms: EVID-S5.2TB.
- Exposed outdoor, coastal sites or voice alarm (EN 54-24): EVID-S5.2XB.
- Lawns, plazas, marriage halls, bars, large outdoor areas: EVID-S8.2TB or EVID-S8.2TW (50 Hz, 110 dB).
- Azan from a minaret: use Bosch horn loudspeakers; they project speech much further than a cabinet speaker.
How do the EVID surface speakers compare?
| Model | Drivers | Max tap | 8 ohm | Sensitivity | Max SPL | Frequency range | Coverage | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-S4.2TB | 4" + 0.75" | 15 W | No | 86.5 dB | 98.5 dB | 75 Hz to 20 kHz | 110° x 110° | IP54 |
| EVID-S5.2TB | 5.25" + 0.75" | 30 W | Yes | 90 dB | 109 dB | 60 Hz to 20 kHz | 90° x 90° | IP54 |
| EVID-S5.2XB | 5.25" + 0.75" | 60 W | Yes | 89 dB | 108 dB | 55 Hz to 20 kHz | 90° x 90° | IP65, EN 54-24 |
| EVID-S8.2TB / EVID-S8.2TW | 8" + 1" | 60 W | Yes | 90 dB | 110 dB | 50 Hz to 20 kHz | 90° x 90° | IP54 |
Frequency range at -10 dB, max SPL continuous. B = black RAL 9004, W = white RAL 9003. Sold in pairs.
Who supplies Electro-Voice in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every Electro-Voice product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed. We help with system design and installation. Prices are quoted per project: contact us for a quote, or see the full Electro-Voice range.
