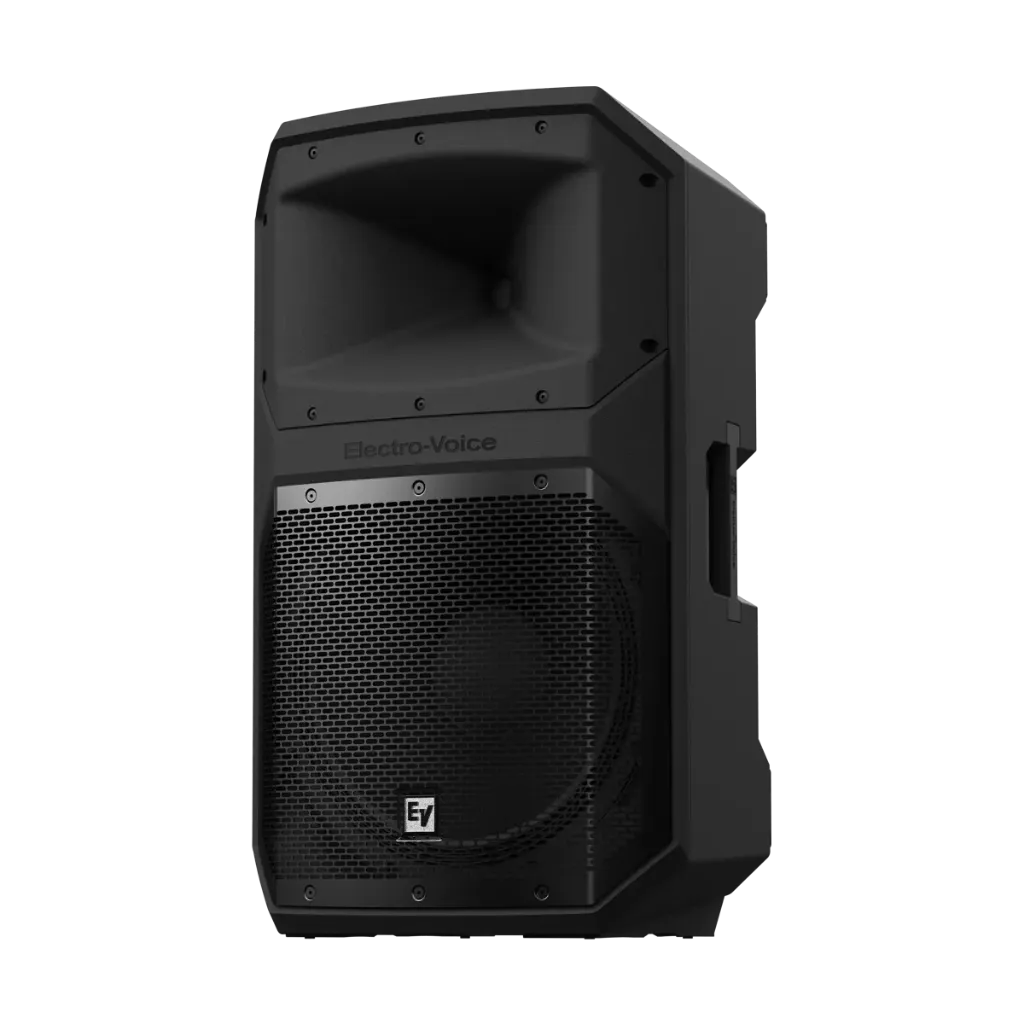

EVIVA 15P-EU
Powered speaker, 15-inch, entry level
15" two-way, 1000 W peak | 126 dB max | 45 Hz to 20 kHz | 90° x 60° | 14.6 kg
EVIVA 15P-EU
Powered speaker, 15-inch, entry level
15" two-way, 1000 W peak | 126 dB max | 45 Hz to 20 kHz | 90° x 60° | 14.6 kg
Electro-Voice EVIVA 15P-EU Product Highlights
Explore the key capabilities of the Electro-Voice EVIVA 15P-EU powered speaker.
Full Sound
15" two-way, 126 dB, 45 Hz to 20 kHz.
Simple Voicing
MUSIC / LIVE switch, no menus.
Sub Ready
WITH SUB setting for the EVIVA 18SP subwoofer.
Inputs
Two XLR combo inputs and an XLR mix output.
Light
Only 14.6 kg for a 15" speaker.
Entry Level
Electro-Voice sound for DJs, bands and small venues.
Key specs
- 15" ferrite woofer + 1" neodymium compression driver
- 1000 W peak, 126 dB max SPL
- 45 Hz to 20 kHz (-10 dB)
- 90° x 60° coverage
- MUSIC / LIVE switch; NO SUB / WITH SUB (EVIVA 18SP) switch
- 2 XLR combo inputs, 1 XLR mix output
- 725 x 426 x 402 mm, 14.6 kg
|
Electrical |
|
|
Rated power |
20 / 10 / 5 / 2.5 W |
|
Sound pressure level at 20 W / 1 W (1kHz, 1 m) |
100 dB / 87 dB (SPL) |
|
Sound pressure level at 20 W / 1 W (1kHz, 4 m) |
91 dB / 78 dB (SPL) |
|
Opening angle at 1 kHz / 4 kHz (-6 dB) |
220° / 65° |
|
Effective frequency range (-10 dB) |
75 Hz to 20 kHz |
|
Rated voltage |
100V |
|
Rated impedance |
20 W: 500 Ohm 10 W: 1000 Ohm 5 W:
2000 Ohm |
|
Connector |
3‑pole screw terminal |
|
Mechanical |
|
|
Dimensions (D x L) |
185 x 300 mm (7.3 x 11.8 in.) |
|
Weight |
3 kg (6.6 lb) |
|
Color |
White (RAL 9010) |
|
Material |
ABS |
|
Environmental |
|
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
Know before you buy
Quick answers about the EVIVA 15P-EU, and how it compares.
Where does the EVIVA 15P fit?
The entry-level 15" of Electro-Voice for DJs, bands and small venues. For more output and app control, ELX200-15P-EU; without mains power, EVERSE12-EU.
Which subwoofer goes with it?
The EVIVA 18SP (ask us): set the WITH SUB switch. The ELX200-18SP is matched to the ELX200 tops.
Which Electro-Voice portable speaker?
| Model | Type | Amplifier | Max SPL | Frequency range | Coverage | Power | Weight |
|---|---|---|---|---|---|---|---|
| EVERSE12-EU | 12" two-way, battery, 4-ch mixer | 400 W | 126 dB | 45 Hz to 20 kHz | 100° x 60° | Battery or mains, IP43 | 14.2 kg |
| EVIVA 15P-EU | 15" two-way | 1000 W peak | 126 dB | 45 Hz to 20 kHz | 90° x 60° | Mains | 14.6 kg |
| ELX200-15P-EU | 15" two-way | 1200 W | 132 dB | 48 Hz to 19 kHz | 90° x 60° | Mains | 18.9 kg |
| ELX200-18SP-EU | 18" subwoofer | 1200 W | 132 dB | 40 Hz to 145 Hz | - | Mains | 29 kg |
No mains power or outdoors: EVERSE 12. Mains events: EVIVA 15P for entry level, ELX200-15P for 6 dB more output, presets and app control, with the ELX200-18SP subwoofer.
Who supplies Electro-Voice in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every Electro-Voice product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed. We help with system design and installation. Prices are quoted per project: contact us for a quote, or see the full Electro-Voice range.
