H8x
2K+Pan & Tilt Wi‑Fi Camera
H8x
2K+Pan & Tilt Wi‑Fi Camera
Smart integration for hands-free control
The camera supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying “Alexa” or “Hey Google”.

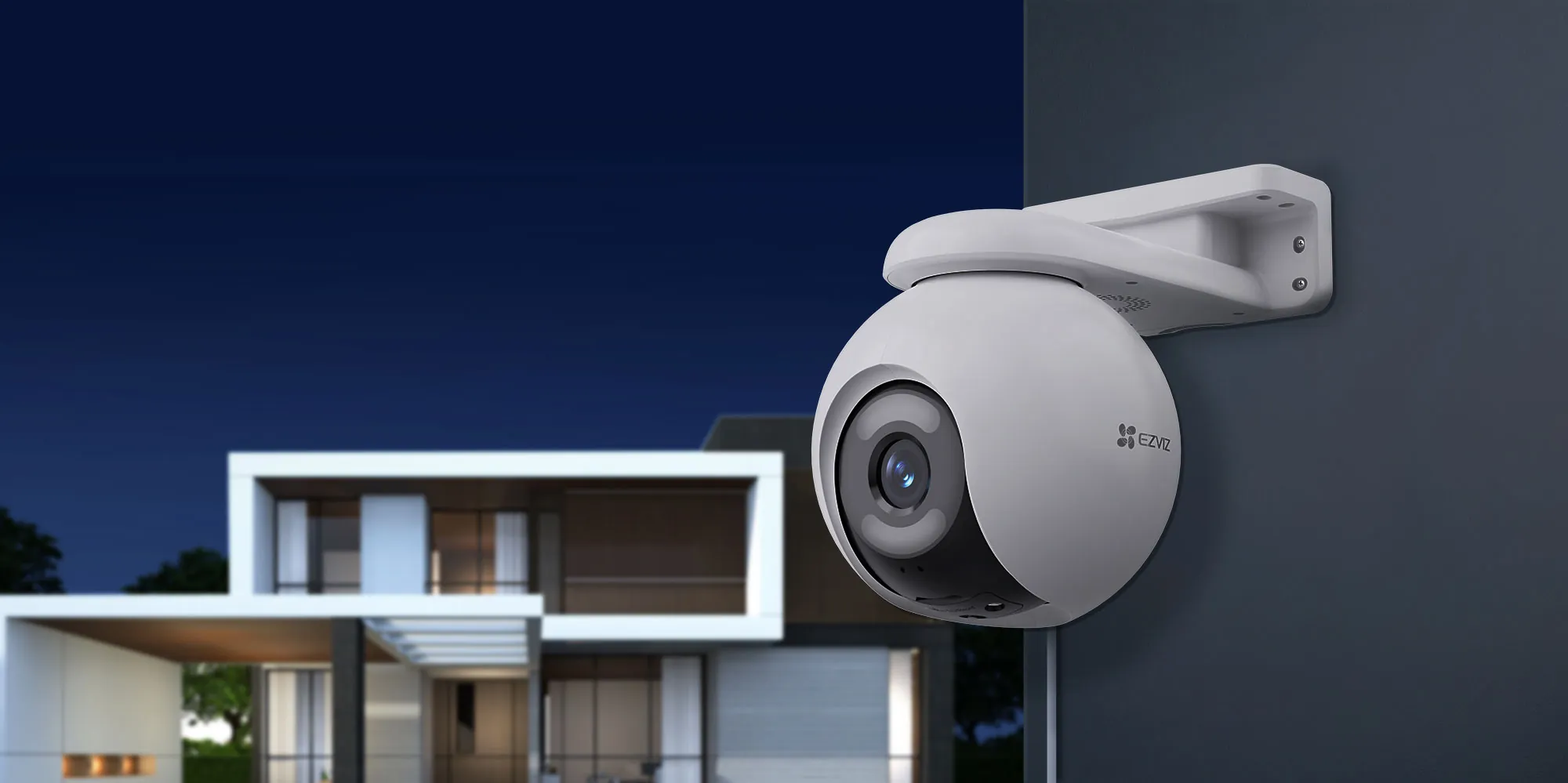

Durable design for outdoor
To better protect your property, the camera is weatherproof to deliver long-standing performance, even in tough weather conditions.
H.265 for enhanced video experience
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.
Dual storage options for important moments
The camera automatically saves detection-triggered history videos. You can choose to secure them on a large local storage card, or simply by subscribing to the EZVIZ CloudPlay.
FAQs About the Ezviz H8x 2K+
Everything you need to know about the Ezviz H8x 2K+ before specifying it.
The H8x 2K⁺ combines 2K⁺ resolution, 360° panoramic coverage, ColorFULL night vision, AI human and vehicle detection, auto-zoom tracking, and automatic patrol modes in one outdoor pan-and-tilt camera.
The camera is designed for extremely low-light environments using ColorFULL technology, but its published 0.01 Lux figure is a laboratory specification. Actual performance depends on the surrounding environment and available light.
Yes. The camera supports AI-powered human shape and vehicle shape detection, helping distinguish people and vehicles from other movement.
Electronic Security Company (ESCO) supplies EZVIZ security solutions in Pakistan, including the EZVIZ H8x 2K⁺ Pan & Tilt Wi-Fi Camera. We provide genuine products along with professional guidance, installation support, warranty assistance, and after-sales service.
| Camera | |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.0 Field of view: 48° (vertical), 92° (horizontal), 108° (diagonal) |
| PT Angle | Pan: 340° , Tilt: 70° |
| Minimum Illumination | 0.01 Lux @ (F1.0, AGC ON) (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Video & Audio | |
| Max. Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main profile |
| Video Bit Rate | Quad HD; Full HD; HD Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS |
| Transmission Rate | 11b: 11 Mbps, 11g :54 Mbps, 11n :150 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Smart Alarm | AI-powered human shape detection AI-powered vehicle shape detection |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| Auto Zoom Tracking | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -30ºC ~ 50ºC Humidity 95% or less ( non-condensing) |
| IP Grade | IP65 + 2 h rainstorm |
| Power Supply | DC 12 V / 1 A |
| Power Consumption | Max. 12W |
| Dimensions | 167 × 112 × 154 mm (6.57 × 4.41 × 6.06 inch) |
| Packaging Dimensions | 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch) |
| Weight | Product: 607 g (21.4 oz) With package: 1003 g (35.4 oz) |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
