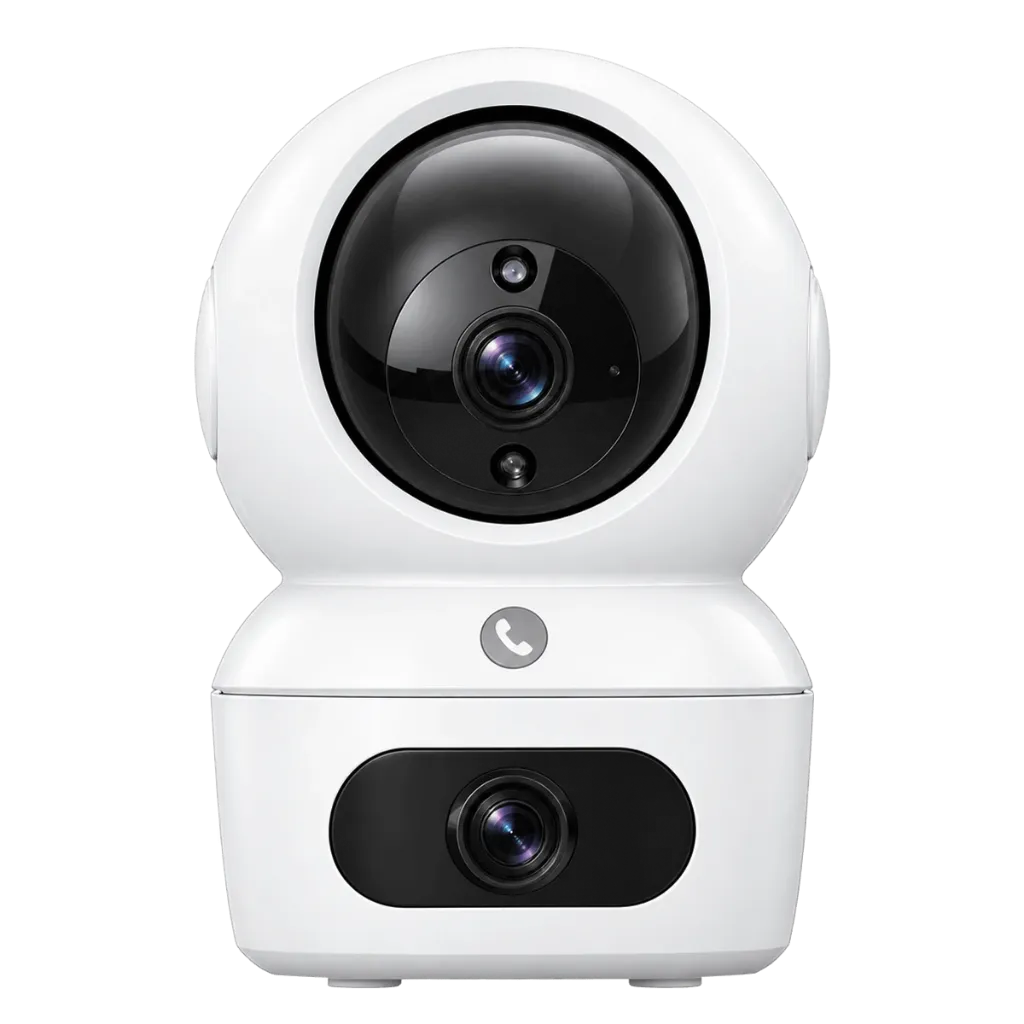

H7c Dual 2K⁺ & 2K⁺
Dual-Lens Pan & Tilt Wi-Fi Camera
The EZVIZ H7c Dual 2K⁺ is a smart indoor camera with two 2K lenses—a wide fixed view and a 360° pan‑tilt lens—for complete room coverage. It features AI human detection, auto tracking, and color night vision to capture clear details day or night. With two‑way calling, dual‑band Wi‑Fi, and support for microSD up to 512GB, it delivers reliable, flexible home monitoring in a compact design.

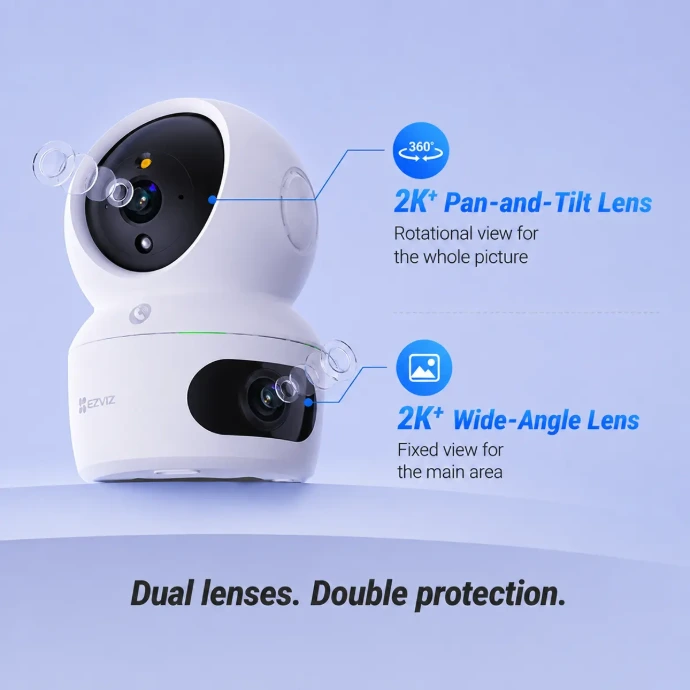

2K⁺ & 2K⁺ Dual Lenses
With dual 2K⁺ lenses working together, the H7c Dual delivers sharp, detailed images from multiple angles. Enjoy clearer indoor coverage with more detail, helping you keep a closer eye on every important area of your home.
Imaging & Night Vision
Enjoy bright, detailed visuals day and night with dual 2K⁺ lenses. With Color Night Vision, the H7c Dual captures clearer and more natural-looking images in low-light conditions, helping you stay aware even after dark.
Smart Detection & Alerts
The H7c Dual provides smarter home security with intelligent AI detection and timely alerts. It can identify human movement and notify you when important activity is detected, helping you stay informed and respond quickly when it matters most.

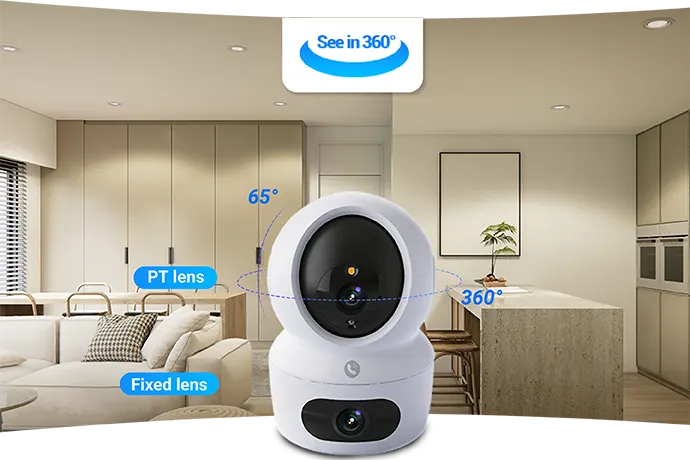

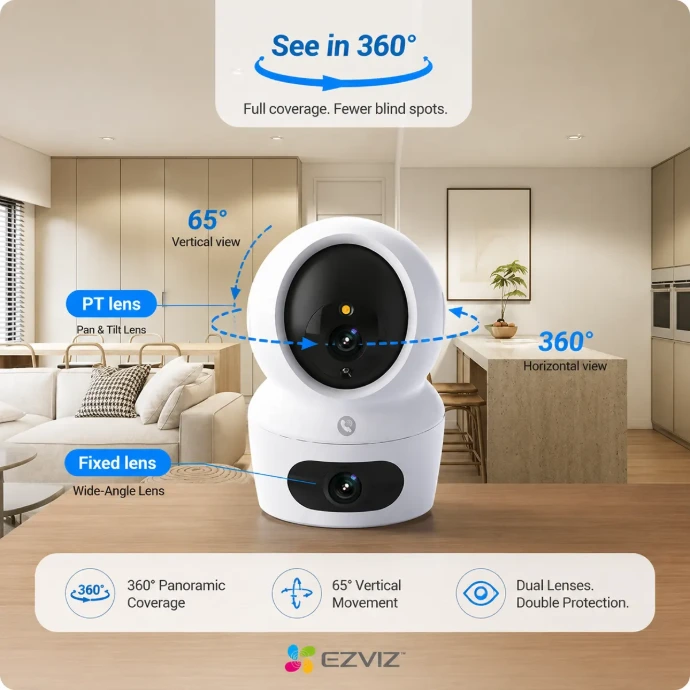

See much more for whole-home protection
The H7c Dual lets you see far more for whole‑home protection. Its pan‑tilt lens scans large indoor spaces with almost no blind spots, while the fixed lens keeps your key area in constant view. Together, they capture more detail than a traditional single‑lens camera, giving you fuller awareness at all times.
Experience smarter whole-home protection with H7c Dual, available from esco.pk

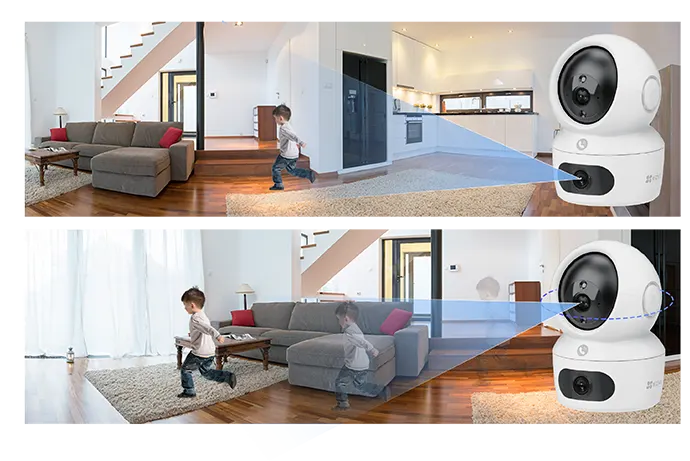

Work together for a single detection task
The H7c Dual’s two lenses work together to ensure nothing slips out of sight. When the fixed lens detects a person, the pan‑tilt lens instantly rotates to lock on, follow the movement, record the full event, and send timely alerts with video clips.

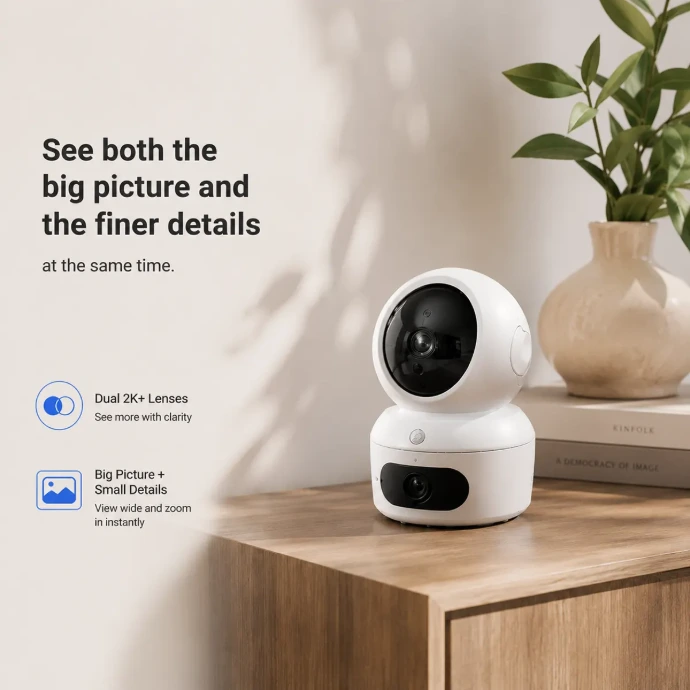

Big picture and small details both matter
The H7c Dual helps you see both the full scene and the finer details at the same time. It displays wide‑angle and close‑up views together in the EZVIZ App, and you can tap any spot in the wide view to instantly pull up a detailed close‑up for quick verification.

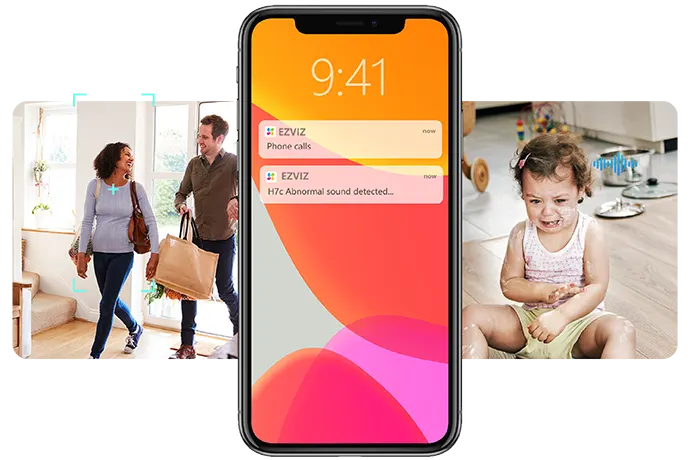

Smarter detection for activities you care about
The H7c Dual focuses on the activities that matter most. Its smart AI detects human movement while ignoring everyday distractions, and it can also capture sudden changes in sound to alert you instantly — all without any extra subscription fees.
See much more for whole-home protection
The H7c Dual gives you a wider, more complete view of your home. Its pan-tilt lens covers large areas, while the fixed lens keeps key spaces in view. Together, they provide more coverage, fewer blind spots, and greater peace of mind.
Work together for smarter detection
The H7c Dual’s two lenses work together to keep important activity in view. When the fixed lens detects a person, the pan-tilt lens automatically follows the movement, records the event, and sends timely alerts with video clips.
Big picture and small details, together
The H7c Dual lets you see the full scene and finer details at the same time. View wide-angle and close-up images together in the EZVIZ App, then simply tap any area in the wide view to instantly check it in closer detail.
Smarter detection for activities you care about
The H7c Dual uses smart AI to detect human movement and reduce unnecessary alerts from everyday activity. It can also detect sudden changes in sound and send timely alerts, helping you stay aware of what matters most.
|
Specifications |
|
|
Model |
CS-H7c-R100-8G44WF |
|
Camera |
|
|
Resolution |
Dual 2K+ Resolution |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Fixed Lens |
[email protected] , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical) |
|
PT Lens |
[email protected] , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical) |
|
Lens Mount |
M12 |
|
Day & Night |
IR-cut filter with auto-switching |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Compression |
|
|
Video Compression |
H.264/H.265 |
|
Video Bit Rate |
Adaptive bit rate. |
|
Network |
|
|
Smart Alarm |
Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
|
Wi-Fi Pairing |
AP paring |
|
Protocol |
EZVIZ cloud proprietary protocol |
|
Interface Protocol |
EZVIZ cloud proprietary protocol |
|
Image |
|
|
Max. Resolution |
2560 × 1440 |
|
Frame Rate |
Self-Adaptive during network transmission |
|
Interface |
|
|
Storage |
Micro SD card slot (Max. 512G) |
|
Power |
TYPE-C |
|
Wired Network |
RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
|
Wi-Fi |
|
|
Standard |
IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax |
|
Frequency Range |
2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz |
|
Channel Bandwidth |
2.4GHz Supports 20MHz 5GHz Supports 80MHz |
|
Security |
WPA-PSK, WPA2-PSK, WPA3-Personal |
|
Transmission Rate |
2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
|
Output Power(EIRP) |
20 dBm |
|
Antenna Gain |
|
|
General |
|
|
Operating Conditions |
-10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing) |
|
Power Consumption |
8W max |
|
Power Supply |
DC 5V/2A |
|
IR Range |
MAX. 10 meters (32.81ft) |
|
Dimensions |
88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in) |
|
Package Dimensions |
200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in) |
|
Net Weight |
270 g (9.52 oz) |
|
Bare Weight |
499 g (17.60 oz) |
