DS-K3Y501SX

DS-K3Y501SX

(0 reviews)

Hikvision Pro Flap Barrier for 600 mm lanes, indoor and outdoor. 12 pairs of IR sensors stop tailgating and climbing; the built-in access controller reads EM or Mifare cards (60,000). Also: face terminal ready (Pg versions), opens on fire alarm. Order left, middle and right pedestals for your lanes. Scroll down for details.

#Access_Control
See full specs and details Have a question? 8 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-K3Y501SX

Pro Flap Barrier, 600 mm lane, indoor and outdoor

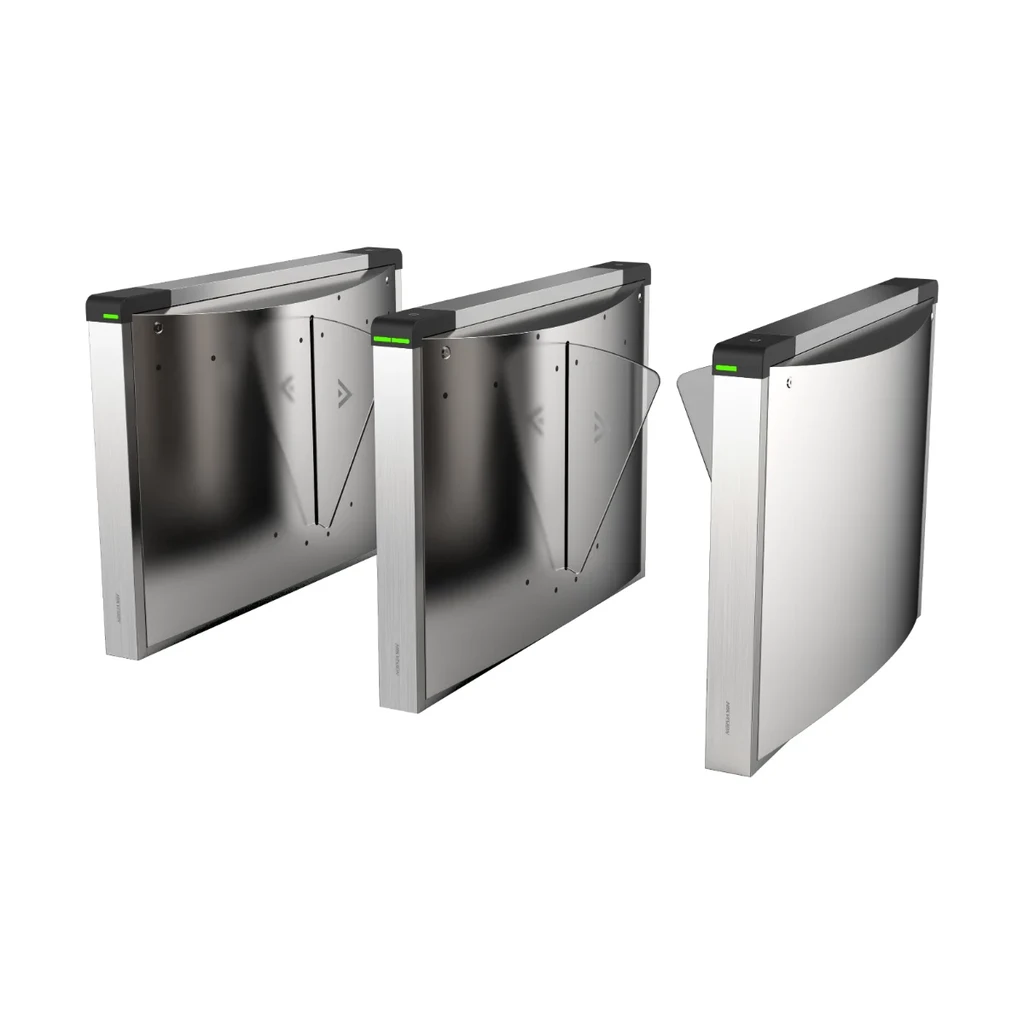

Hikvision DS-K3Y501SX Pro Flap Barrier, 600 mm lane, indoor and outdoor
  • 12 pairs of IR sensors stop tailgating and climbing
  • Built-in access controller: 60,000 cards (EM or Mifare)
  • Alarms on intrusion, tailgating and reverse passing
  • Opens on fire alarm; open when power is off
Face terminal ready (Pg)30 to 60 persons/minSUS304 stainless steelServo motor, 6 million cycles

Build your lane

Each lane sits between two pedestals. One side sends infrared beams and the other receives them; this is how the gate sees a person, a bag or someone trying to follow. Seen from the entrance:

Infrared beam: from the sending side to the receiving side

1 lane

L1REntrance

You need L1 + R

2 lanes

L2M1REntrance

You need L2 + M1 + R

3 lanes

L1M2M1REntrance

You need L1 + M2 + M1 + R

R always stands at the right end and sends.

Middle pedestals serve two lanes, so M1 and M2 take turns: M1 next to R, then M2, then M1 again.

Left end: L1 for 1 or 3 lanes (odd), L2 for 2 or 4 lanes (even).

More lanes or another layout? Send us your floor plan.

Ordering details

All versions are for a 600 mm lane. Use one card type for the whole site.

Read the part numberwhat each letter means
DS-K3Y501SX-L1/MPg-Dp60
L1 L2Left pedestal
EBuilt-in EM card reader (125 kHz)
M1 M2Middle pedestal, between two lanes
MBuilt-in Mifare card reader (13.56 MHz)
RRight pedestal
PgReady for a face terminal (bought separately)
Dp60For a 600 mm lane
Left pedestal versions5 versions
Part numberCard readerFace terminal
DS-K3Y501SX-L1/EPg-Dp60EM cardReady
DS-K3Y501SX-L1/MPg-Dp60Mifare cardReady
DS-K3Y501SX-L2/EPg-Dp60EM cardReady
DS-K3Y501SX-L2/M-Dp60Mifare cardNo
DS-K3Y501SX-L2/MPg-Dp60Mifare cardReady
Middle pedestal versions5 versions
Part numberCard readerFace terminal
DS-K3Y501SX-M1/EPg-Dp60EM cardReady
DS-K3Y501SX-M1/M-Dp60Mifare cardNo
DS-K3Y501SX-M1/MPg-Dp60Mifare cardReady
DS-K3Y501SX-M2/EPg-Dp60EM cardReady
DS-K3Y501SX-M2/MPg-Dp60Mifare cardReady
Right pedestal versions3 versions
Part numberCard readerFace terminal
DS-K3Y501SX-R/EPg-Dp60EM cardReady
DS-K3Y501SX-R/M-Dp60Mifare cardNo
DS-K3Y501SX-R/MPg-Dp60Mifare cardReady
What else you need5 parts

A typical setup. Our engineers size it for your site and send a free BOQ.

PartModelWhat it doesQty
Face terminalDS-K1T342MFWX-E1 or DS-K1T671MFFace recognition at the lane (Pg pedestals only)1 per lane, 2 for both ways
Terminal bracketDS-KAB6-ZU3 or DS-KAB6-ZU1Fits the face terminal on the pedestal; ZU3 is height adjustable1 per terminal
RemoteDS-K7R01-433Key fob for the guard to open lanes, 15 m1 per guard
Remote control padDS-K7R83X7-inch touch screen at reception, controls up to 16 lanes1 per desk
Access cardsDS-KEM125 (EM) or IC S50 (Mifare)Must match the card reader of your pedestals1 per person

Every site is different. Tell us the number of lanes, people per hour and how they will unlock (card or face), and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • 600 mm lane; indoor and outdoor
  • 12 pairs of IR sensors: anti-tailgating; alarms on intrusion, reverse passing and climbing
  • Built-in access controller: 60,000 cards (EM or Mifare by version), 180,000 events
  • Servo motor, 6 million cycles
  • 30 to 60 persons per minute
  • SUS304 stainless steel, acrylic flaps; -20 to 70 °C
  • Opens on fire alarm; open when power is off
  • Pg versions take a face terminal (bracket bought separately)
  • Remote key fob 433 or 868 MHz; 100 to 240 VAC
Chat on WhatsApp
Questions & answers

Know before you buy

Quick answers about the DS-K3Y501SX, and how it compares.

How many pedestals do I need?

One more than the number of lanes. 1 lane: L1 + R. 2 lanes: L2 + M1 + R. 3 lanes: L1 + M2 + M1 + R. See Build your lane above.

L1 or L2, M1 or M2: what is the difference?

Pedestals send and receive infrared beams in turns along the row. R always stands on the right and sends. Middle pedestals take turns from the right: M1, M2, M1. The left end is L1 for an odd number of lanes and L2 for an even number. Order the set for your lane count.

EM or Mifare card: which one do I need?

The card must match the reader. E versions read EM cards (125 kHz), M versions read Mifare cards (13.56 MHz), which are harder to copy. Use one card type for the whole site.

Can it use face recognition?

Yes, on Pg versions. A Hikvision face terminal fits on the pedestal with the DS-KAB6-ZU3 (height adjustable) or DS-KAB6-ZU1 bracket. Both are bought separately.

Can I install it outdoors?

Yes. It is made for indoor and outdoor use: SUS304 stainless steel, -20 to 70 °C. Near the sea or chemical plants, Hikvision suggests 316 stainless steel and more cleaning.

What happens in a fire alarm or power cut?

Linked to the fire alarm, the flaps open so people can leave. When the power is off, the flaps stay open.

How many people can pass per minute?

30 to 60 persons per minute per lane, depending on how fast people show their card or face.

Can I buy it online?

Hikvision turnstiles and speed gates are installed products, so we start with a free pre-sales consultation: our engineers suggest the right models for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
