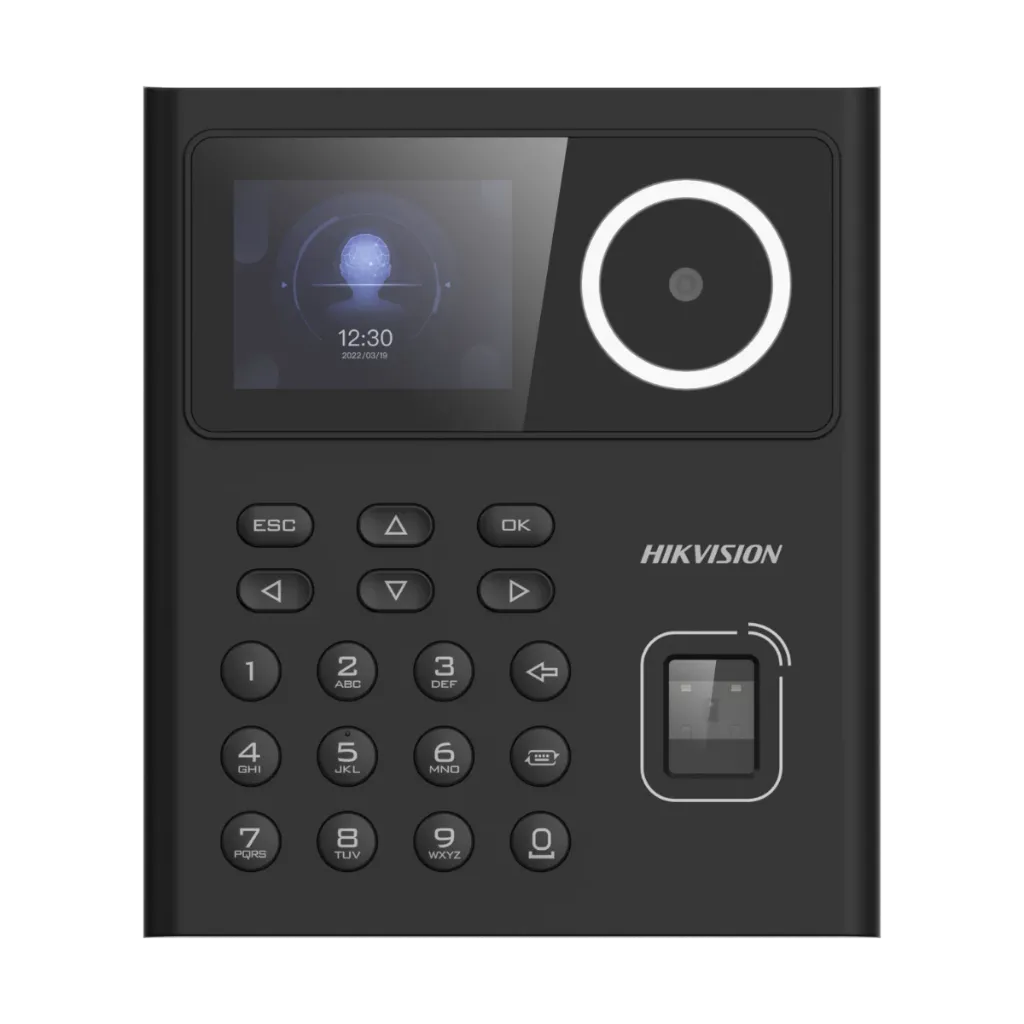

DS-K1T320MFWX-B
2.4-inch face terminal, 500 faces
- Unlock by face, fingerprint, Mifare card and PIN
- Face recognised in under 0.2 s
- Built-in door controller: lock, exit button, door contact
- Wi-Fi or cable, web set-up
DS-K1T320MFWX-B
2.4-inch face terminal, 500 faces
- Unlock by face, fingerprint, Mifare card and PIN
- Face recognised in under 0.2 s
- Built-in door controller: lock, exit button, door contact
- Wi-Fi or cable, web set-up
Key specs
- Unlock by face, fingerprint, Mifare card and PIN
- 2.4 inch LCD screen, 2 MP camera
- 500 faces, 1,000 fingerprints, 1,000 cards, 100,000 events
- Face recognised in under 0.2 s, at 0.3 to 1.5 m
- Ethernet + Wi-Fi
- Interfaces: lock, exit button, door contact
- 12 VDC, 6 W; battery in the bracket
- -10 to 55 °C
|
System |
|
|
Operating system |
Linux |
|
ROM |
4 GB |
|
RAM |
256 MB |
|
CPU |
960 MHz |
|
Display |
|
|
Screen size |
2.4 inch |
|
Type |
LCD |
|
Resolution |
320 × 240 |
|
Video |
|
|
Lens |
1 |
|
Video compression standard |
PAL (Default) and NTSC |
|
Resolution |
2 MP (video stream: 720P) |
|
FOV |
HFOV = 43°; VFOV = 25° |
|
Audio |
|
|
Audio output |
Built-in buzzer |
|
Network |
|
|
Network protocol |
ISAPI, ISUP 5.0 |
|
Wired network |
Support |
|
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
|
Interface |
|
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
|
Lock control |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
TAMPER |
1 |
|
USB |
1 |
|
Capacity |
|
|
Face capacity |
500 |
|
Fingerprint capacity |
1,000 |
|
Card capacity |
1,000 |
|
Event capacity |
100,000 |
|
Authentication |
|
|
Face recognition distance |
0.3 m ~ 1.5 m |
|
Face recognition accuracy rate |
> 99% |
|
Face recognition duration |
< 0.2 s |
|
Card type |
M1 card |
|
Card reading distance |
0 ~ 5 cm |
|
General |
|
|
Built-in access controller |
Yes |
|
Supplement light |
White light |
|
Power supply |
12 VDC Supports power supply by battery in the bracket |
|
Power consumption |
≤ 6 W |
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working humidity |
0 to 90% (No condensing) |
|
Function |
|
|
Live view |
Support |
|
Multi-factor authentication |
Support |
|
Face anti-spoofing |
Support |
Know before you buy
Quick answers about the DS-K1T320MFWX-B, and how it compares.
Does it work without a PC or internet?
Yes. The door controller is built in. Once people are enrolled, it opens the door on its own, and it keeps the last 100,000 events in memory. Hikvision HikCentral or the free iVMS-4200 client are optional, for several doors and attendance reports.
Which cards does it read?
Mifare 1 card (13.56 MHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses.
How many people can it store?
500 faces, 1,000 fingerprints, 1,000 cards and 100,000 events. Each person can have a face, fingerprints and a card.
Can it do time attendance?
Yes. It records every check-in as an event, and HikCentral or the free iVMS-4200 client turns the events into attendance reports. It also has an attendance-only mode, for a clock-in point that opens no door.
What do I need to connect a door?
A 12 VDC power supply, an electric lock (magnetic lock or bolt), an exit button inside and, if you want to know when the door is left open, a door contact. The terminal switches the lock itself.
Wi-Fi or network cable?
Both. Use the network cable where you can; Wi-Fi is there for doors with no cable run.
What happens in a power cut?
This version takes a battery in its bracket, so the terminal keeps working when the mains fails. The lock needs its own backup if the door must stay locked.
