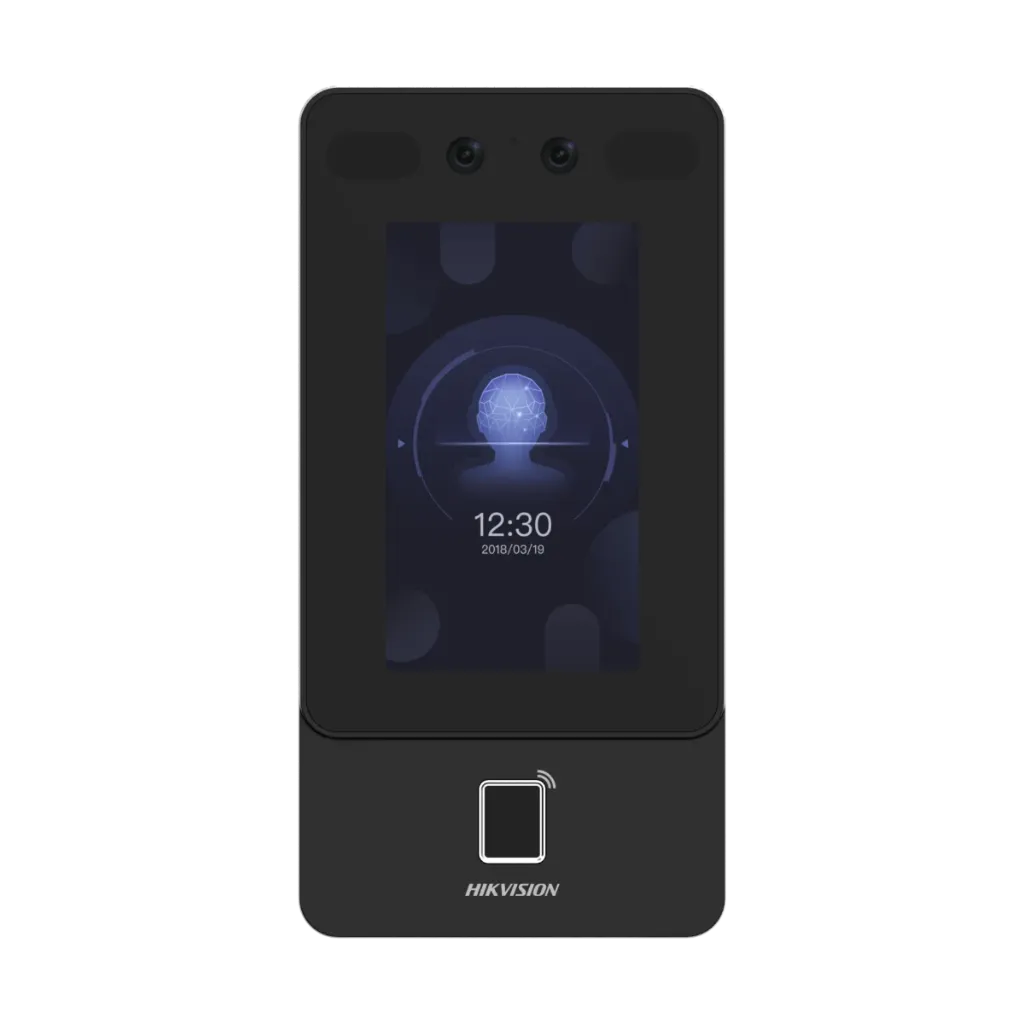

DS-K1T342MFWX-E1
4.3-inch touch face terminal, 1,500 faces
- Unlock by face, fingerprint, Mifare card and PIN
- Face recognised in under 0.2 s
- RS-485 and Wiegand: secure door unit or controller
- One PoE cable powers the terminal and the lock
DS-K1T342MFWX-E1
4.3-inch touch face terminal, 1,500 faces
- Unlock by face, fingerprint, Mifare card and PIN
- Face recognised in under 0.2 s
- RS-485 and Wiegand: secure door unit or controller
- One PoE cable powers the terminal and the lock
Key specs
- Unlock by face, fingerprint, Mifare card and PIN
- 4.3 inch LCD touch screen, 2 MP camera
- 1,500 faces, 3,000 fingerprints, 3,000 cards, 150,000 events
- Face recognised in under 0.2 s, at 0.3 to 1.5 m
- Recognises faces with a mask on
- Ethernet + Wi-Fi + PoE 802.3at (gives 12 V / 1 A to the lock)
- Interfaces: lock, exit button, door contact, RS-485, Wiegand
- 12 VDC 1 A (adapter included) or PoE 802.3at; 12 V / 1 A out for the lock; IP65
- -30 to 60 °C; 91.3 x 181.3 x 24.5 mm
|
System |
|
|
Operation system |
Linux |
|
Display |
|
|
Dimensions |
4.3-inch |
|
Resolution |
272 × 480 |
|
Type |
LCD |
|
Operation method |
Capacitive touch screen |
|
Video |
|
|
Pixel |
2 MP |
|
Lens |
× 2 |
|
Video standard |
PAL (Default) and NTSC |
|
Network |
|
|
Wired network |
10 M/100 M self-adaptive |
|
Wi-Fi |
Support |
|
Interface |
|
|
Network interface |
1, IEEE802.3at, standard PoE |
|
RS-485 |
1 |
|
Wiegand |
1 |
|
Lock output |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
TAMPER |
1 |
|
USB |
1 |
|
Capacity |
|
|
Card capacity |
3,000 |
|
Face capacity |
1,500 |
|
Fingerprint capacity |
3,000 |
|
Event capacity |
150,000 |
|
Authentication |
|
|
Card type |
Mi-fare 1 card |
|
Card reading frequency |
13.56 MHz |
|
Face recognition duration |
＜0.2 s |
|
Face recognition accuracy rate |
＞99% |
|
Face recognition distance |
0.3 to 1.5 m |
|
Fingerprint recognition duration |
＜1 s |
|
Function |
|
|
Face anti-spoofing |
Support |
|
Audio prompt |
Support |
|
Time synchronization |
Support |
|
General |
|
|
Power supply |
Power input: Power interface (12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) |
|
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
|
Working humidity |
0 to 90% (No condensing) |
Know before you buy
Quick answers about the DS-K1T342MFWX-E1, and how it compares.
Does it work without a PC or internet?
Yes. The door controller is built in. Once people are enrolled, it opens the door on its own, and it keeps the last 150,000 events in memory. Hikvision HikCentral or the free iVMS-4200 client are optional, for several doors and attendance reports.
Which cards does it read?
Mifare 1 card (13.56 MHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses.
How many people can it store?
1,500 faces, 3,000 fingerprints, 3,000 cards and 150,000 events. Each person can have a face, fingerprints and a card.
Can it do time attendance?
Yes. It records every check-in as an event, and HikCentral or the free iVMS-4200 client turns the events into attendance reports. It also has an attendance-only mode, for a clock-in point that opens no door.
What do I need to connect a door?
A PoE switch port: the terminal takes its power from it and gives 12 V / 1 A to the lock, so no separate power supply is needed. Then an electric lock (magnetic lock or bolt), an exit button inside and, if you want to know when the door is left open, a door contact. The terminal switches the lock itself. For higher security, a secure door control unit on the RS-485 line keeps the lock relay inside the room.
Does it recognise a face with a mask on?
Yes. Hikvision lists mask recognition for this model.
Wi-Fi or network cable?
Both. Use the network cable where you can; Wi-Fi is there for doors with no cable run.
Can I buy it online?
Access control is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right terminal and accessories for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
