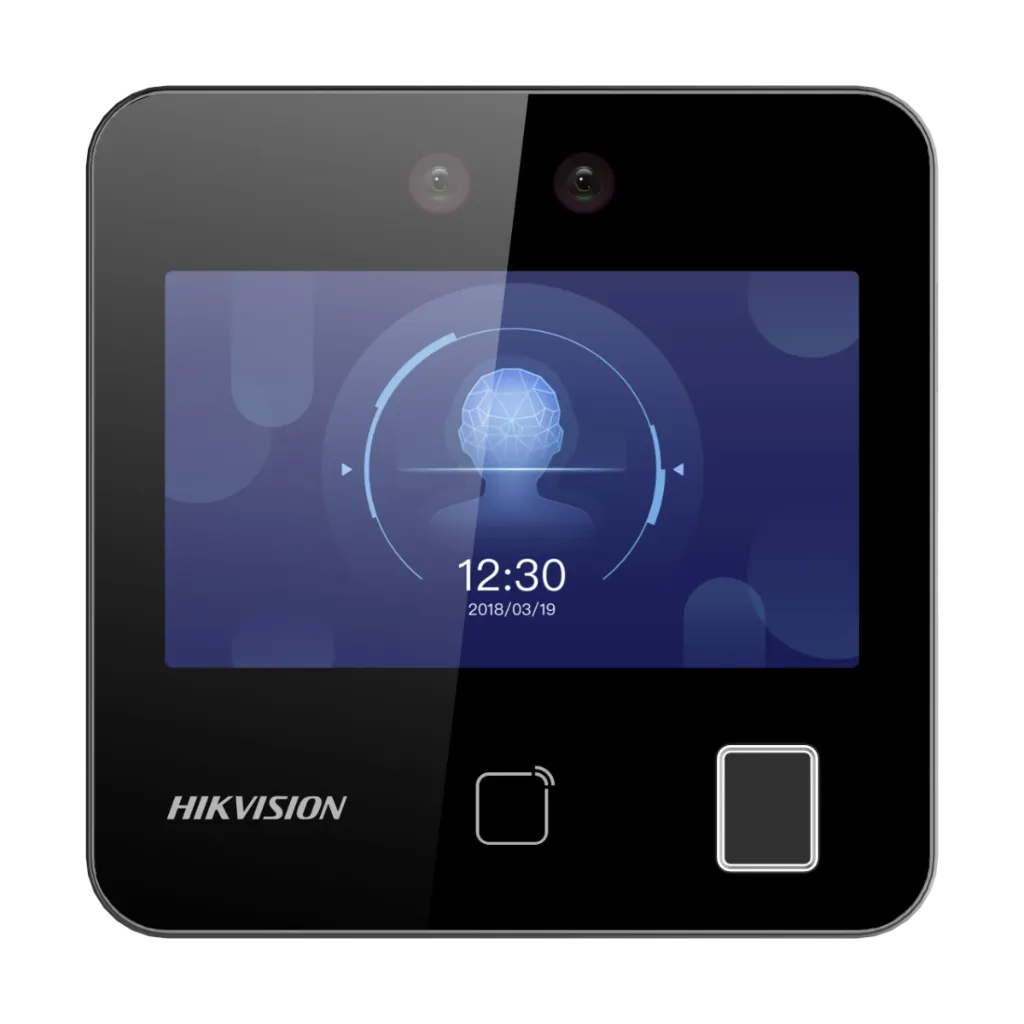

DS-K1T343MFWX-B
4.3-inch touch face terminal, wall or desk
- Unlock by face, fingerprint and Mifare card
- Face recognised in under 0.2 s
- RS-485 and Wiegand: secure door unit or controller
- Wall or desk base mounting, indoor
DS-K1T343MFWX-B
4.3-inch touch face terminal, wall or desk
- Unlock by face, fingerprint and Mifare card
- Face recognised in under 0.2 s
- RS-485 and Wiegand: secure door unit or controller
- Wall or desk base mounting, indoor
Key specs
- Unlock by face, fingerprint and Mifare card
- 4.3 inch LCD touch screen, 2 MP camera
- 1,500 faces, 3,000 fingerprints, 3,000 cards, 150,000 events
- Face recognised in under 0.2 s, at 0.3 to 1.5 m
- Ethernet + Wi-Fi
- Interfaces: lock, exit button, door contact, RS-485, Wiegand
- 12 VDC 1 A (adapter included); battery in the bracket
- -10 to 40 °C, indoor; 118.4 x 118.4 x 21.8 mm
|
System |
|
|
Operating system |
Linux |
|
ROM |
4 GB |
|
RAM |
DDR3:512 M |
|
CPU |
800 MHz |
|
Display |
|
|
Screen size |
4.3 inch |
|
Operation method |
Capacitive touch screen |
|
Type |
LCD |
|
Resolution |
480 × 272 |
|
Video |
|
|
Lens |
2 |
|
Resolution |
2 MP |
|
Wide Dynamic Range (WDR) |
Support |
|
Video standard |
PAL (Default) and NTSC |
|
Focal length |
4 mm |
|
Aperture |
F 2.0 |
|
HOV |
HFOV：75.5° VFOV：41.5° DFOV：87° |
|
Audio |
|
|
Audio compression standard |
G.711U |
|
Audio compression bitrate |
64 Kbps |
|
Audio input |
Built-in omnidirectional microphone |
|
Audio output |
Built-in loudspeaker |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjust via device or client |
|
Power output |
1 W |
|
Network |
|
|
Network protocol |
SDK, SIP, RTSP, ISAPI, ISUP5.0 |
|
Wired network |
Support |
|
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
|
Interface |
|
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
|
Lock control |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
TAMPER |
1 |
|
RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
|
Wiegand |
1 Wiegand (W26, W34) |
|
USB |
1 |
|
Capacity |
|
|
Face capacity |
1,500 |
|
Fingerprint capacity |
3,000 |
|
Card capacity |
3,000 |
|
Event capacity |
150,000 |
|
Authentication |
|
|
Face recognition distance |
0.3 to 1.5 m |
|
Face recognition accuracy rate |
＞99% |
|
Face recognition duration |
＜0.2 s |
|
Fingerprint recognition duration |
＜1 s |
|
Card type |
M1 card |
|
Card reading frequency |
13.56 MHz |
|
Card reading distance |
0 to 5 cm (Normal Card); 0 to 3 cm (Card with Different Shapes) |
|
Card reading duration |
＜1 s |
|
General |
|
|
Supplement light |
IR light |
|
Power supply |
12 VDC, 1 A (power adapter included) Supports power supply by battery in the bracket |
|
Working temperature |
-10 °C to 40 °C (14 °F to 104 °F) |
|
Working humidity |
0 to 90% (No condensing) |
|
Dimensions |
118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86") |
|
Installation |
Wall mounting, base mounting |
|
Weight |
Gross weight: 0.71 kg (1.57 lb) Net weight: 0.23 kg (0.51 lb) |
|
Application environment |
Indoor |
|
Platform |
Hik-ProConnect and HikCentral Professional |
|
Function |
|
|
Live view |
Support |
|
Two-way audio |
Support |
|
Multi-factor authentication |
Support |
|
Face anti-spoofing |
Support |
|
First person in |
Support |
Know before you buy
Quick answers about the DS-K1T343MFWX-B, and how it compares.
Does it work without a PC or internet?
Yes. The door controller is built in. Once people are enrolled, it opens the door on its own, and it keeps the last 150,000 events in memory. Hikvision HikCentral or the free iVMS-4200 client are optional, for several doors and attendance reports.
Which cards does it read?
Mifare 1 card (13.56 MHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses.
How many people can it store?
1,500 faces, 3,000 fingerprints, 3,000 cards and 150,000 events. Each person can have a face, fingerprints and a card.
Can it do time attendance?
Yes. It records every check-in as an event, and HikCentral or the free iVMS-4200 client turns the events into attendance reports. It also has an attendance-only mode, for a clock-in point that opens no door.
What do I need to connect a door?
A 12 VDC power supply, an electric lock (magnetic lock or bolt), an exit button inside and, if you want to know when the door is left open, a door contact. The terminal switches the lock itself. For higher security, a secure door control unit on the RS-485 line keeps the lock relay inside the room.
Wi-Fi or network cable?
Both. Use the network cable where you can; Wi-Fi is there for doors with no cable run.
What happens in a power cut?
This version takes a battery in its bracket, so the terminal keeps working when the mains fails. The lock needs its own backup if the door must stay locked.
Can I buy it online?
Access control is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right terminal and accessories for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
