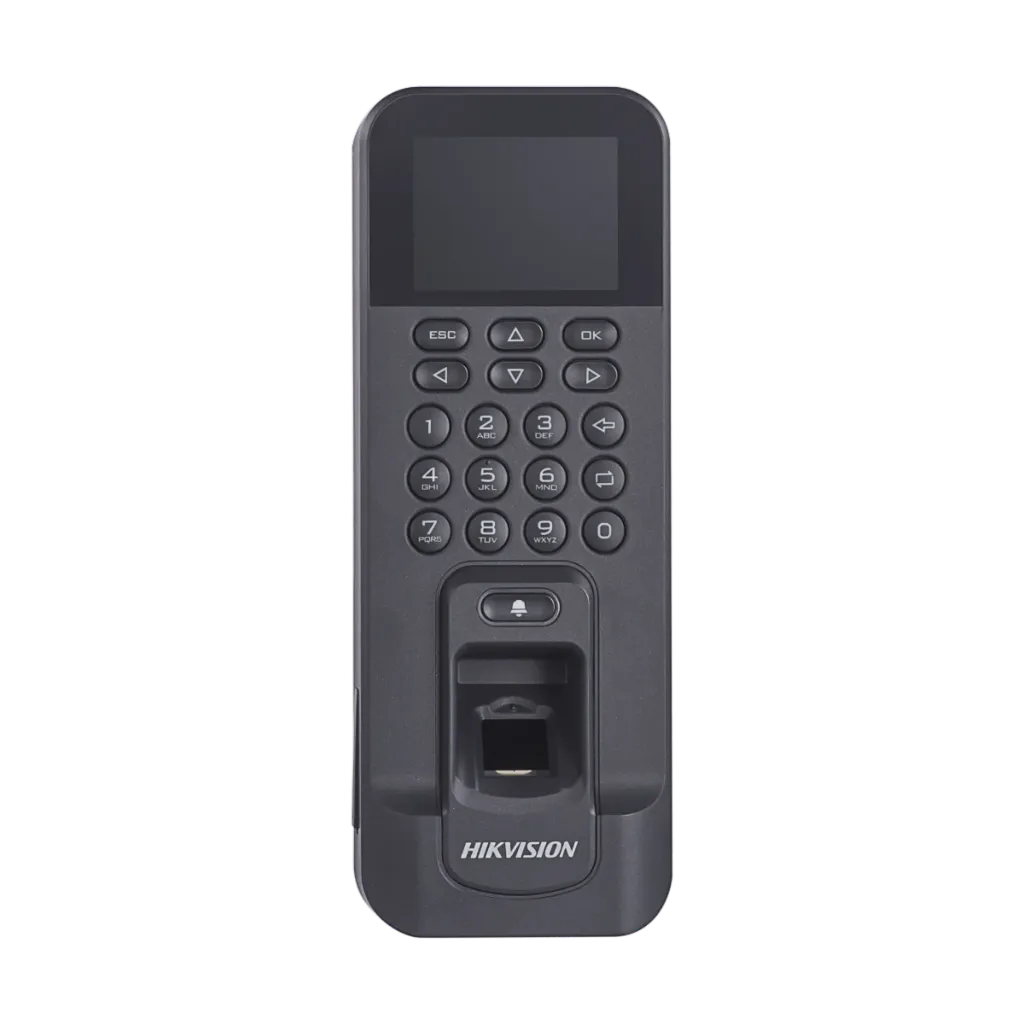

DS-K1T804BEF
Fingerprint access and attendance terminal
- Unlock by fingerprint and EM card
- 3,000 fingerprints and 3,000 cards
- Built-in door controller, alarm in and out
- Wi-Fi or cable, Wiegand
DS-K1T804BEF
Fingerprint access and attendance terminal
- Unlock by fingerprint and EM card
- 3,000 fingerprints and 3,000 cards
- Built-in door controller, alarm in and out
- Wi-Fi or cable, Wiegand
Key specs
- Unlock by fingerprint and EM card
- 2.4 inch LCD screen
- 3,000 fingerprints, 3,000 cards, 100,000 events
- Ethernet + Wi-Fi
- Interfaces: lock, exit button, door contact, Wiegand, alarm in/out
- 12 VDC 1 A
- -10 to 55 °C; 205 x 76.5 x 37 mm
| System | |
|---|---|
| Operating system | Linux |
| Display | |
| Screen size | 2.4-inch |
| Resolution | 320 × 240 |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| IO input | 1 |
| IO output | 1 |
| TAMPER | 1 |
| USB | 1 |
| Indicator | Power/status (red/green) |
| Capacity | |
| Card capacity | 3000 |
| Fingerprint capacity | 3000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | EM card |
| Card reading distance | 0 to 5 cm |
| Card reading duration | < 1 s |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | < 1 s |
| Fingerprint False Acceptance Rate (FAR) | ≤ 0.001 % |
| Fingerprint False Rejection Rate (FRR) | ≤ 0.01 % |
| General | |
| Power supply | 12 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Dimensions | 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46") |
| Installation | Surface mounting |
Know before you buy
Quick answers about the DS-K1T804BEF, and how it compares.
Does it work without a PC or internet?
Yes. The door controller is built in. Once people are enrolled, it opens the door on its own, and it keeps the last 100,000 events in memory. Hikvision HikCentral or the free iVMS-4200 client are optional, for several doors and attendance reports.
Which cards does it read?
EM card (125 kHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses.
How many people can it store?
3,000 fingerprints, 3,000 cards and 100,000 events. Each person can have fingerprints and a card.
Can it do time attendance?
Yes. It records every check-in as an event, and HikCentral or the free iVMS-4200 client turns the events into attendance reports.
What do I need to connect a door?
A 12 VDC power supply, an electric lock (magnetic lock or bolt), an exit button inside and, if you want to know when the door is left open, a door contact. The terminal switches the lock itself.
Wi-Fi or network cable?
Both. Use the network cable where you can; Wi-Fi is there for doors with no cable run.
Can I buy it online?
Access control is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right terminal and accessories for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
