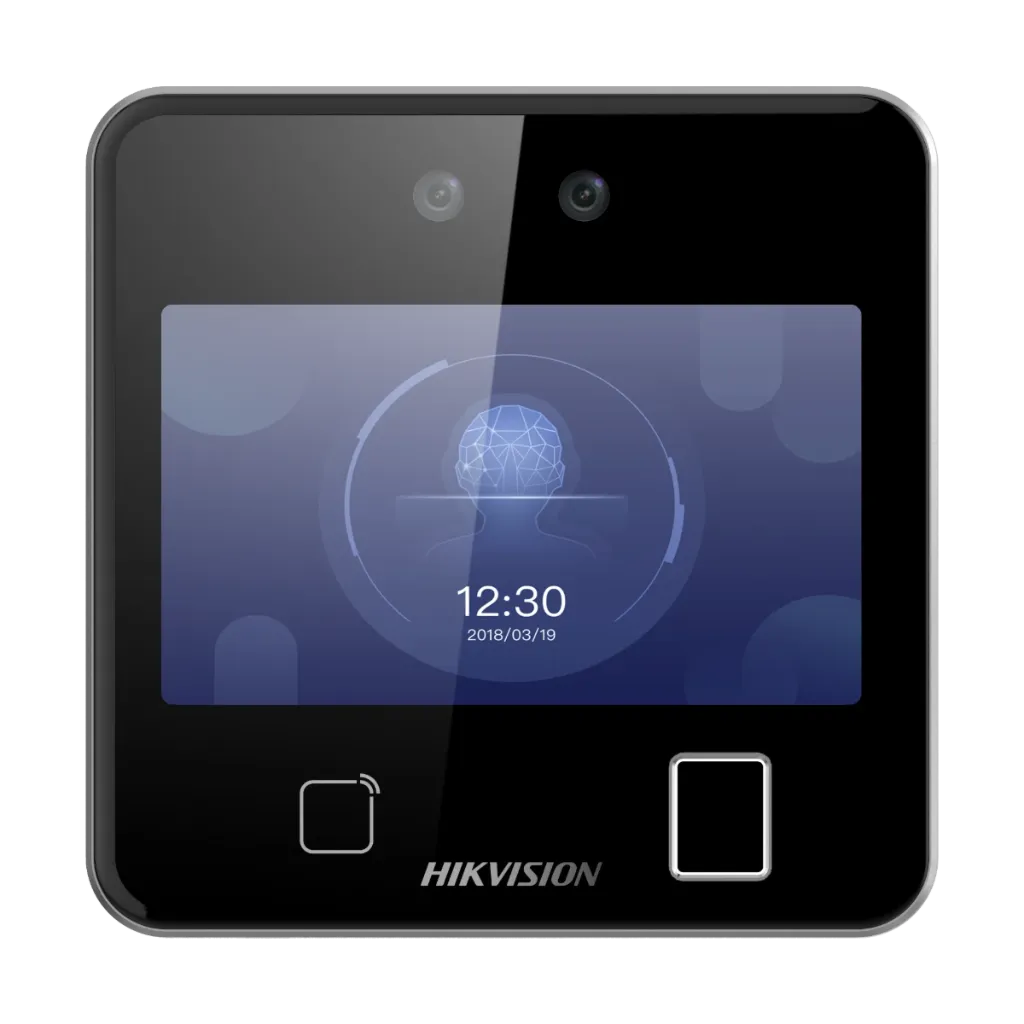

DS-K1T642EFW
MinMoe 4.3-inch face terminal, 6,000 faces
- Unlock by face, fingerprint, EM card and QR code
- Face recognised from up to 3 m
- Remote door open and live view in Hik-Connect
- Mask alerts and two-way audio
DS-K1T642EFW
MinMoe 4.3-inch face terminal, 6,000 faces
- Unlock by face, fingerprint, EM card and QR code
- Face recognised from up to 3 m
- Remote door open and live view in Hik-Connect
- Mask alerts and two-way audio
Key specs
- Unlock by face, fingerprint, EM card and QR code
- 4.3 inch IPS touch screen, 2 MP camera
- 6,000 faces, 5,000 fingerprints, 10,000 cards, 150,000 events
- Face recognised in under 0.2 s, at 0.3 to 3 m
- Mask alert with voice reminder
- Ethernet + Wi-Fi
- Interfaces: lock, exit button, door contact, RS-485, Wiegand
- 12 VDC 2 A (adapter not included), 10 W
- -10 to 50 °C, indoor; 118 x 118 x 20 mm
| Display | |
|---|---|
| Screen size | 4.3 inch |
| Operation method | Capacitive touch screen |
| Type | IPS |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 41.5°; VFOV = 75.5°; DFOV = 87° |
| Audio | |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Interface | |
| Network interface | 1 RJ-45, 10/100/1000 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand (Hik 26bit, Hik 34bit) |
| USB | 1 |
| Capacity | |
| Face capacity | 6,000 |
| Fingerprint capacity | 5,000 |
| Card capacity | 10,000 |
| Event capacity | 150,000 |
| Authentication | |
| Face recognition distance | 0.3 to 3 m |
| Face recognition duration | < 0.2 s |
| Face recognition accuracy rate | ≥ 99% |
| Card type | EM card |
| Card reading frequency | 125 KHz |
| General | |
| Power supply | 12 VDC, 2 A (power adapter not included) |
| Power consumption | ≤ 10 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Dimensions | 118 mm × 118 mm × 20 mm (4.6" × 4.6" × 0.7") |
| Installation | Surface, optional base stand |
| Application environment | Indoor |
| Platform | Hik-ProConnect and HikCentral Professional |
| Function | |
| QR code recognition | Support |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
Know before you buy
Quick answers about the DS-K1T642EFW, and how it compares.
Does it work without a PC or internet?
Yes. The door controller is built in. Once people are enrolled, it opens the door on its own, and it keeps the last 150,000 events in memory. Hikvision HikCentral or the free iVMS-4200 client are optional, for several doors and attendance reports.
Which cards does it read?
EM card (125 kHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses. The Mifare version is the DS-K1T642MFW.
How many people can it store?
6,000 faces, 5,000 fingerprints, 10,000 cards and 150,000 events. Each person can have a face, fingerprints and a card.
Can it do time attendance?
Yes. It records every check-in as an event, and HikCentral or the free iVMS-4200 client turns the events into attendance reports.
What do I need to connect a door?
A 12 VDC power supply, an electric lock (magnetic lock or bolt), an exit button inside and, if you want to know when the door is left open, a door contact. The terminal switches the lock itself. For higher security, a secure door control unit on the RS-485 line keeps the lock relay inside the room.
Can it check that people wear a mask?
Yes. It detects a missing mask and gives a voice reminder; you choose whether the person still gets in.
Wi-Fi or network cable?
Both. Use the network cable where you can; Wi-Fi is there for doors with no cable run.
Can I buy it online?
Access control is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right terminal and accessories for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
