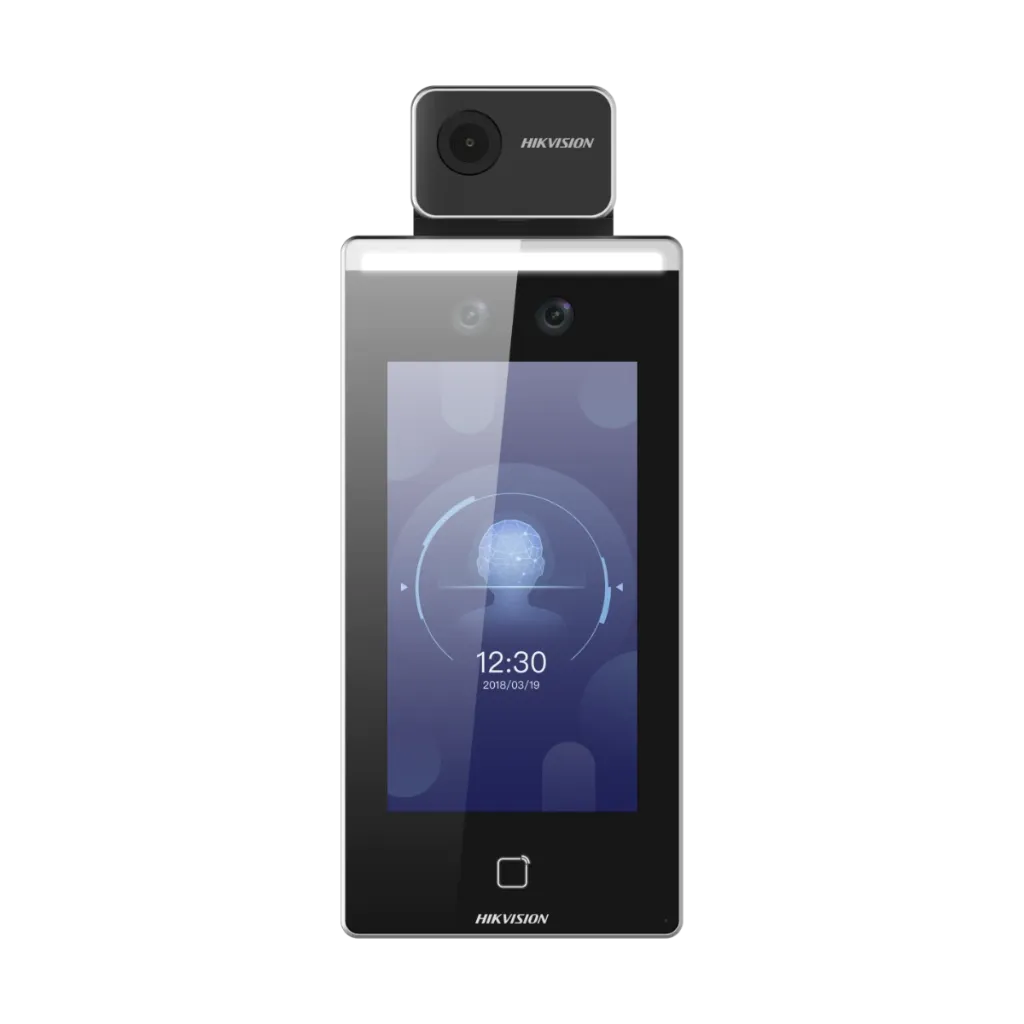

DS-K1TA70MI-T
7-inch face terminal with temperature screening
- Unlock by face and Mifare card
- Skin temperature in 0.1 °C steps, ±0.5 °C
- Mask detection, 2 MP dual lens
- RS-485 and Wiegand, alarm in and out
DS-K1TA70MI-T
7-inch face terminal with temperature screening
- Unlock by face and Mifare card
- Skin temperature in 0.1 °C steps, ±0.5 °C
- Mask detection, 2 MP dual lens
- RS-485 and Wiegand, alarm in and out
Key specs
- Unlock by face and Mifare card
- 7 inch touch screen, 2 MP camera
- 6,000 faces, 6,000 cards, 100,000 events
- Face recognised in under 0.2 s, at 0.3 to 1.8 m
- Skin temperature 30 to 45 °C in 0.1 °C steps, ±0.5 °C, at 0.3 to 1.8 m
- Ethernet
- Interfaces: lock, exit button, door contact, RS-485, Wiegand, alarm in/out
- 12 VDC 2 A
- 0 to 50 °C (measuring 10 to 35 °C), indoor
|
Temperature Measurement |
|
|
Temperature range |
30 °C to 45 °C (86 °F to 113 °F) |
|
Sensor |
Vanadium Oxide uncooled sensor |
|
Resolution |
120 × 160 |
|
Frame rate |
25 fps |
|
Measurement accuracy |
0.1 °C |
|
Measurement deviation |
± 0.5 °C |
|
Measuring distance |
0.3 to 1.8 m |
|
Display |
|
|
Size |
7-inch |
|
Type |
Touch screen |
|
Video |
|
|
FOV |
HFOV= 46°; VFOV= 87° |
|
Pixel |
2 MP |
|
Lens |
Dual-lens |
|
Network |
|
|
Wired network |
Support, 10/100/1000 Mbps self-adaptive |
|
Interface |
|
|
Network interface |
1 |
|
RS-485 |
1 |
|
Wiegand |
1 |
|
Lock output |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
IO input |
2 |
|
IO output |
1 |
|
TAMPER |
1 |
|
Capacity |
|
|
Card capacity |
6000 |
|
Face capacity |
6000 |
|
Event capacity |
100,000 |
|
Authentication |
|
|
Card type |
Mifare 1 card |
|
Card reading distance |
0 to 5 cm |
|
Card reading duration |
＜ 1 s |
|
Face recognition duration |
＜ 0.2 s per person |
|
Face recognition distance |
0.3 to 1.8 m |
|
Function |
|
|
Face anti-spoofing |
Support |
|
Live view |
Support |
|
Audio prompt |
Support |
|
General |
|
|
Power supply |
12 VDC/2 A |
|
Working temperature |
0 °C to 50 °C (32 °F to 122 °F) For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F) |
|
Working humidity |
10 to 90% (No condensing) |
|
Application environment |
Indoor and windless environment use only |
|
Weight |
Gross Weight: 1.89 kg (4.17 lb) Net Weight: 1.04 kg (2.29 lb) |
Know before you buy
Quick answers about the DS-K1TA70MI-T, and how it compares.
Does it work without a PC or internet?
Yes. The door controller is built in. Once people are enrolled, it opens the door on its own, and it keeps the last 100,000 events in memory. Hikvision HikCentral or the free iVMS-4200 client are optional, for several doors and attendance reports.
Which cards does it read?
Mifare 1 card (13.56 MHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses.
How many people can it store?
6,000 faces, 6,000 cards and 100,000 events. Each person can have a face and a card.
Can it do time attendance?
Yes. It records every check-in as an event, and HikCentral or the free iVMS-4200 client turns the events into attendance reports.
What do I need to connect a door?
A 12 VDC power supply, an electric lock (magnetic lock or bolt), an exit button inside and, if you want to know when the door is left open, a door contact. The terminal switches the lock itself. For higher security, a secure door control unit on the RS-485 line keeps the lock relay inside the room.
Can it check that people wear a mask?
Yes. Hikvision lists face mask detection for this model.
How accurate is the temperature?
The sensor reads skin temperature between 30 and 45 °C in 0.1 °C steps with ±0.5 °C deviation, at 0.3 to 1.8 m, indoors without wind. It is a screening aid, not a medical thermometer.
Can I buy it online?
Access control is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right terminal and accessories for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
