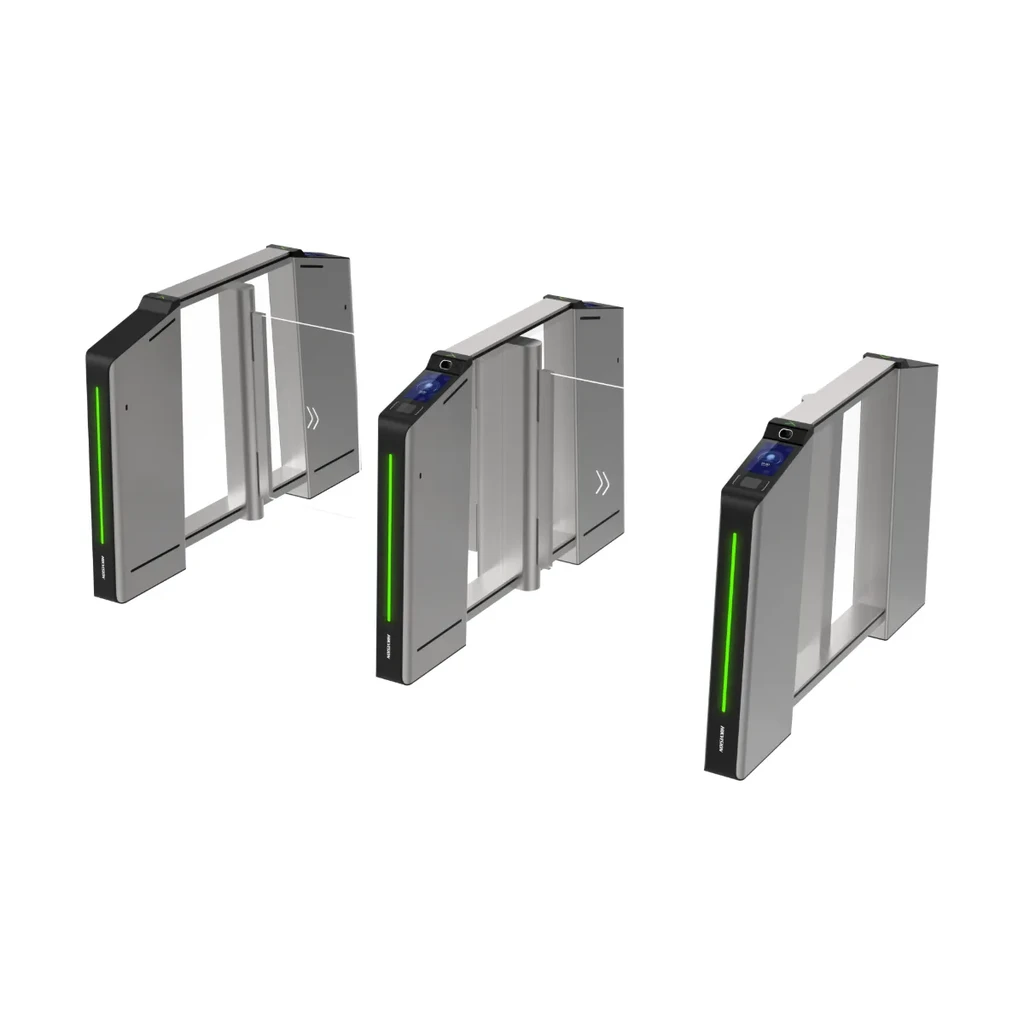

DS-K3B631TX
Smart swing barrier with face recognition, 550 to 1100 mm lanes
- Face in 0.3 s on a 6.95-inch screen, card or QR code
- 20 pairs of IR detectors stop tailgating
- Servo motor, MCBF more than 12 million
- Opens on fire alarm; nipping alarm
DS-K3B631TX
Smart swing barrier with face recognition, 550 to 1100 mm lanes
- Face in 0.3 s on a 6.95-inch screen, card or QR code
- 20 pairs of IR detectors stop tailgating
- Servo motor, MCBF more than 12 million
- Opens on fire alarm; nipping alarm
Key specs
- Swing barrier: acrylic glass wings, SUS304 stainless steel pedestals
- Built-in access controller and 6.95-inch touch screen (one side)
- Face recognition in 0.3 s, up to 2 m, accuracy 99% or more
- 50,000 faces, 250,000 cards, 1,000,000 events
- 20 pairs of IR detectors: anti-tailgating
- Lanes 550 to 1100 mm; 30 to 60 persons per minute
- Servo motor, MCBF more than 12 million
- Opens on fire alarm; audible and visual nipping alarm; self-diagnostics
- 100 to 240 VAC, 70 W standby; indoor, -10 to 50 °C; 1500 x 130 x 1000 mm per pedestal
| System | |
|---|---|
| MCBF | > 12 million times |
| Motor | Servo motor |
| Display | |
| Screen size | 6.95 inch |
| Operation method | Touch (single side only) |
| Resolution | 600 × 1024 |
| Interface | |
| Network interface | 1 |
| Exit button | 2 |
| Lock control | 2 |
| Alarm input | 2 |
| Alarm output | 2 |
| Wiegand | 2 |
| Capacity | |
| User capacity | 50,000 |
| Face capacity | 50,000 |
| Card capacity | 250,000 |
| Event capacity | 1,000,000 |
| Authentication | |
| Face recognition distance | 2 m |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition duration | 0.3 s |
| Function | |
| IR light detectors | 20 pairs: permission validation and anti-tailgating |
| Direction indicator | Arrow LED shows the passing direction |
| Nipping alarm | Audible and visual; the barrier stops for a while when it detects an obstruction while opening or closing |
| Self-check | Self-detection, self-diagnostics and automatic alarm |
| Valid passing duration | Permission is cancelled if the person does not pass in time |
| Fire alarm | The barrier opens automatically when the fire alarm is triggered |
| General | |
| Throughput | 30 to 60 persons per minute (the actual throughput depends on the person passing rate and passing method) |
| Power supply | 100 to 240 VAC; 50 to 60 Hz |
| Power consumption | 70 W (standby) |
| Working temperature | -10 °C to 50 °C |
| Working humidity | 10% to 95% (no condensing) |
| Lane width | 550 mm to 1100 mm (21.65" to 43.31") across the series |
| Built-in access controller | Yes |
| Dimensions | Without packaging: 1500 mm × 130 mm × 1000 mm (59.05" × 5.12" × 39.37"); with packaging: 1690 mm × 465 mm × 1105 mm |
| Barrier material | Acrylic glass |
| Pedestal material | SUS304 stainless steel |
| Weight (net) | Left: 62 kg; middle: 105 kg; right: 64 kg |
| Approval | CE / FCC / CB / RoHS / REACH / WEEE |
| Application environment | Indoor |
Know before you buy
Quick answers about the DS-K3B631TX Series, and how it compares.
How do people get through?
By face on the built-in 6.95-inch touch screen (0.3 s, up to 2 m), by card or by QR code. The access controller is built in and stores 50,000 faces, 250,000 cards and 1,000,000 events.
Which pedestals do I need?
One L (left end) and one R (right end) for the first lane, then one M (middle) for every extra lane: 1 lane = L + R, 2 lanes = L + M + R, 3 lanes = L + M + M + R.
How wide can the lane be?
Hikvision makes this series for lanes from 550 to 1100 mm. Tell us your lane width and we confirm the set before you order.
How does it stop tailgating?
20 pairs of IR detectors check each passage and raise an alarm when someone follows without permission. If a person is let in but does not pass in time, the valid passing duration cancels the permission.
What if the wing touches someone?
The barrier has an audible and visual nipping alarm: when it detects an obstruction while opening or closing, it stops for a while. It also runs self-diagnostics and raises an alarm on faults.
What happens in a fire alarm?
When the fire alarm is triggered, the barrier opens automatically so people can leave.
How many people can pass per minute?
30 to 60 persons per minute, depending on how fast people authenticate and walk through.
Can it go outdoors?
No. Hikvision rates it for indoor use, -10 to 50 °C. For outdoor gates, see our tripod and full height turnstiles.
Can I buy it online?
Turnstiles are installed products, so we start with a free pre-sales consultation: our engineers survey the entrance, suggest the version and terminals, and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
