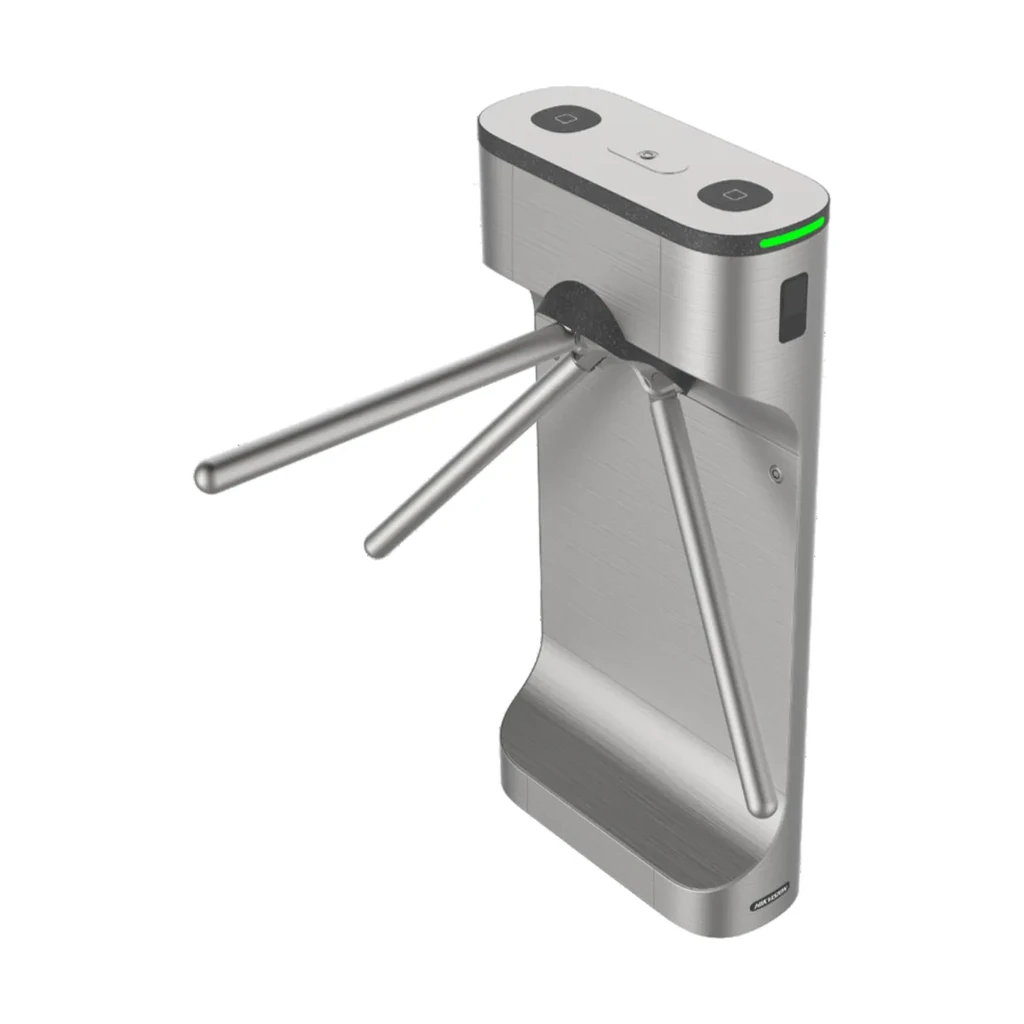

DS-K3G411
Tripod turnstile, face terminal ready (Pg)
- Entering and exiting, 550 mm lane
- More than 35 persons per minute, MCBF over 3 million
- 60,000 cards and 180,000 events stored
- Arms drop on fire alarm, for evacuation
DS-K3G411
Tripod turnstile, face terminal ready (Pg)
- Entering and exiting, 550 mm lane
- More than 35 persons per minute, MCBF over 3 million
- 60,000 cards and 180,000 events stored
- Arms drop on fire alarm, for evacuation
Key specs
- One 550 mm lane, entering and exiting
- Pg: takes a Hikvision face terminal, bought separately
- E version: EM cards; stores 60,000 cards and 180,000 events
- More than 35 persons per minute; MCBF more than 3 million
- Arms drop automatically on fire alarm; valid passing time
- Free access and forbidden modes; LED direction and status
- TCP/IP (encrypted), 6 RS-485 / RS-232, 2 lock out, 2 IO in, 2 IO out
- SUS304 stainless steel; 100 to 240 VAC; indoor
- -10 to 50 °C; 502 x 202 x 1010 mm, 26 kg
| System | |
|---|---|
| MCBF | > 3 million times |
| Interface | |
| RS-232 | 6 interfaces can be switched to RS-232 by DIP switch; 2 for a fingerprint module or QR code scanner |
| RS-485 | 6 (can be switched to RS-232 by DIP switch) |
| Lock output | 2 |
| IO input | 2 |
| IO output | 2 |
| Network interface | 1 |
| Capacity | |
| Card capacity | 60,000 |
| Event capacity | 180,000 |
| Function | |
| Modes | Free access and forbidden modes selectable |
| Direction | Bidirectional (entering / exiting) lane |
| Network | TCP/IP, encrypted communication; remote control and management |
| Indicator | LED shows entrance / exit and passing status |
| Fire alarm passing | When triggered, the barrier drops automatically for emergency evacuation |
| Valid passing duration | Permission is cancelled if the person does not pass in time |
| General | |
| Throughput | More than 35 persons per minute (the actual throughput depends on the person passing rate and passing method) |
| Power supply | 100 to 240 VAC; 50 to 60 Hz |
| Lane width | 550 mm |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 0% to 95% (no condensing) |
| Pedestal material | SUS304 stainless steel |
| Dimensions | Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0"); with package: 745 mm × 365 mm × 1120 mm (29.3" × 14.4" × 44.1") |
| Application environment | Indoor |
| Weight | Without package: 26 kg (57.3 lb); with package: 31 kg (68.41 lb) |
| Approval | CE / FCC / CB / RoHS / REACH / WEEE |
Know before you buy
Quick answers about the DS-K3G411-R/EPg-Dm55, and how it compares.
How do people get through?
The Pg version takes a Hikvision face terminal on the turnstile, bought separately. The E version also works with EM cards; it stores 60,000 cards and 180,000 events. Ask us which terminal fits.
How many people can pass per minute?
More than 35 persons per minute. The real figure depends on how fast people authenticate and walk through.
What happens in a fire alarm?
When the fire alarm is triggered, the arms drop automatically so people can leave.
Does it work in both directions?
Yes. The lane is bidirectional, with free access and forbidden modes to choose from. If a person is let through but does not pass in time, the valid passing duration cancels the permission.
Can it go outdoors?
No. Hikvision rates the DS-K3G411 for indoor use, -10 to 50 °C. For an outdoor gate, see our Pro tripod or full height turnstiles.
Can I add a fingerprint or QR code reader?
It has 2 RS-232 ports for a fingerprint module or QR code scanner, plus RS-485 ports. Ask us which one fits before ordering.
Can I buy it online?
Turnstiles are installed products, so we start with a free pre-sales consultation: our engineers survey the entrance, suggest the version and terminals, and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
