Hikvision Pro Series barrier gate for car parks, gates and factory entrances. Opens in 1.8 s with a 3 m boom, DC brushless motor rated for 5 million cycles, rebounds if it touches a car and holds the boom up on a radar or loop signal. Straight booms from 3 to 6 m, light boom version with arrow indicator, boom direction switchable on site. Scroll down for the versions and what else a lane needs.

#Access_Control
See full specs and details Have a question? 8 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-TMG420

Pro Series barrier gate, straight boom up to 6 m

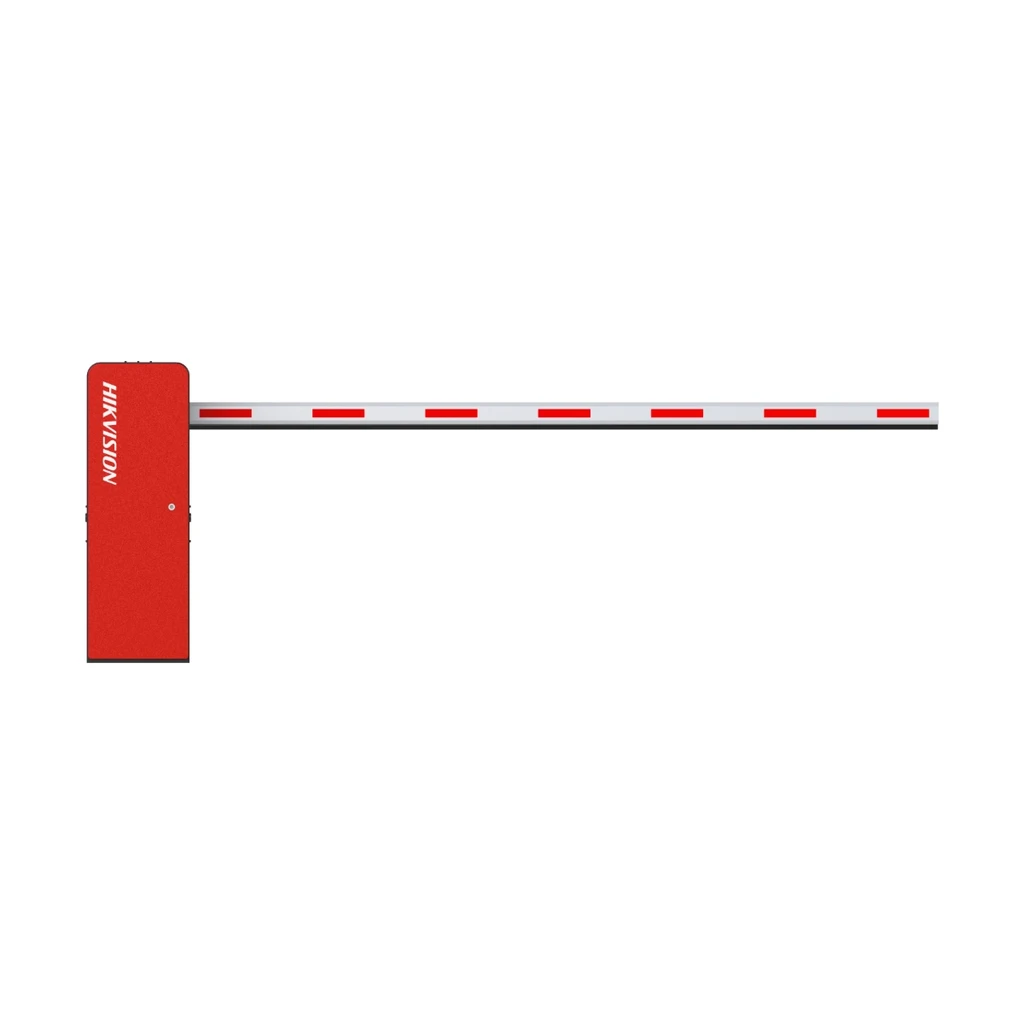

Hikvision DS-TMG420 Pro Series barrier gate, straight boom up to 6 m
  • Opens in 1.8 s with a 3 m boom
  • DC brushless motor, 5 million cycles
  • Rebounds if it touches a car; radar, loop or IR input
  • IP54 and IK09, -30 to 60 °C
433 MHz remote includedLight boom versionRS-485Boom direction switchable

Choose your boom

Hikvision makes the DS-TMG420 for three boom lengths. The opening and closing times are the factory defaults and can be set on the barrier (three speed levels).

3 m

3 m boom

Octagonal, anti-collision round or light boom.

1.8 sopens1.8 scloses
4 m

4 m boom

Octagonal, anti-collision round or light boom.

2.5 sopens2.5 scloses
6 m

6 m boom

Octagonal boom, with a support at the far end.

5 sopens5 scloses

Ordering details

Versions we supply. The boom direction is set on site (right by default, switchable to left). Ask us for 3 m booms, the folding boom DS-TMG421 and the fence boom DS-TMG423.

Straight boom1 version
Part numberBoomExtra
DS-TMG420 6m6 mOctagonal boom; 3 m and 4 m on request
Light boom + arrow indicator1 version
Part numberBoomExtra
DS-TMG420/A/B (4m/24V Light)4 mLED strip boom (green open, red closed) and arrow indicator on the body; 3 m on request
What else you need6 parts

A typical car park lane. Our engineers size it for your site and send a free BOQ.

PartModelWhat it doesQty
In the boxDS-TMG001-5 boom, DS-TMG012-5 remoteBoom and 433 MHz remote (DS-TMG001-3 light boom on the /A/B)
Anti-fall radarDS-TMG035 or DS-TMG034Holds the boom up while a car or person is under it1 per lane
Loop detector + coilDS-TMG022 + DS-TMG023Detects cars through a loop in the roadinstead of the radar
Number plate cameraDS-TCG406-EReads the plate and opens the barrier for listed cars1 per lane
Power-cut openingDS-TMG060-42Supercapacitor board: raises the boom when the power fails1 per barrier
Traffic lightDS-TVL221-1-6DRed and green signal for drivers1 per lane

Every site is different. Tell us the lane width, cars per day and how drivers get in (number plate, tag, remote or guard), and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • Straight boom 3, 4 or 6 m; anti-collision round boom 3 or 4 m; light boom 3 or 4 m (/A/B)
  • Opens in 1.8 s (3 m), 2.5 s (4 m) or 5 s (6 m); three speed levels, fast rise and slow drop
  • DC brushless motor with variable frequency drive, 5 million cycles, 100% duty
  • Anti-collision: rebounds on contact; anti-fall input for radar, loop detector or IR beam
  • Control by relay, 433 MHz remote (included, up to 48 paired) or software; RS-485 and traffic light output
  • LED strip light boom and arrow indicator on the /A/B version; boom direction switchable left or right
  • IP54 and IK09 housing, 1.5 mm steel, -30 to 60 °C; fault codes on the display, event log
  • Power cut: hand wheel opens the boom; optional supercapacitor board raises it automatically
  • 220 VAC, 125 W (155 W /A/B); 1060 x 370 x 262 mm, 43 kg
Chat on WhatsApp
Questions & answers

Know before you buy

Quick answers about the DS-TMG420, and how it compares.

Which boom length do I need?

The boom covers the lane, so measure the lane width: 3 m, 4 m or 6 m booms. The 6 m boom gets a support at the far end. The light boom version takes 3 m or 4 m booms.

Left or right: which direction do I order?

Either. The DS-TMG420 is delivered for a boom on the right (seen from the front) and the direction is switched on site, so one model fits both sides of the lane.

What stops the boom hitting a car?

Two things. The boom rebounds as soon as it touches something while closing. And an anti-fall radar (DS-TMG035 or DS-TMG034), a loop detector in the road or an IR beam holds the boom up while a car or person is under it. The barrier has one input for any of the three.

Can it open by number plate?

Yes. A Hikvision entrance ANPR camera such as the DS-TCG406-E reads the plate and switches the barrier through its relay output. Listed cars (up to 100,000) get in without a guard, also when the network is down.

What happens in a power cut?

The boom stays where it is and the guard opens it with the hand wheel on the motor. With the optional DS-TMG060-42 supercapacitor board the boom rises on its own when the power fails, so no car is trapped.

What does the /A/B version add?

An LED strip inside the boom, green when open and red when closed, visible from far away at night, plus an arrow indicator on the body. The plain DS-TMG420 has neither.

How many remotes can it take?

One 433 MHz remote (DS-TMG012-5) comes in the box, with a range of about 30 m. Hikvision pairs up to 48 remotes with a 42 Series barrier.

Can I buy it online?

Barrier gates are installed products, so we start with a free pre-sales consultation: our engineers suggest the right version and accessories for your lane and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
