DS-6920UDI-U
Out of stock

DS-6920UDI-U

(0 reviews)

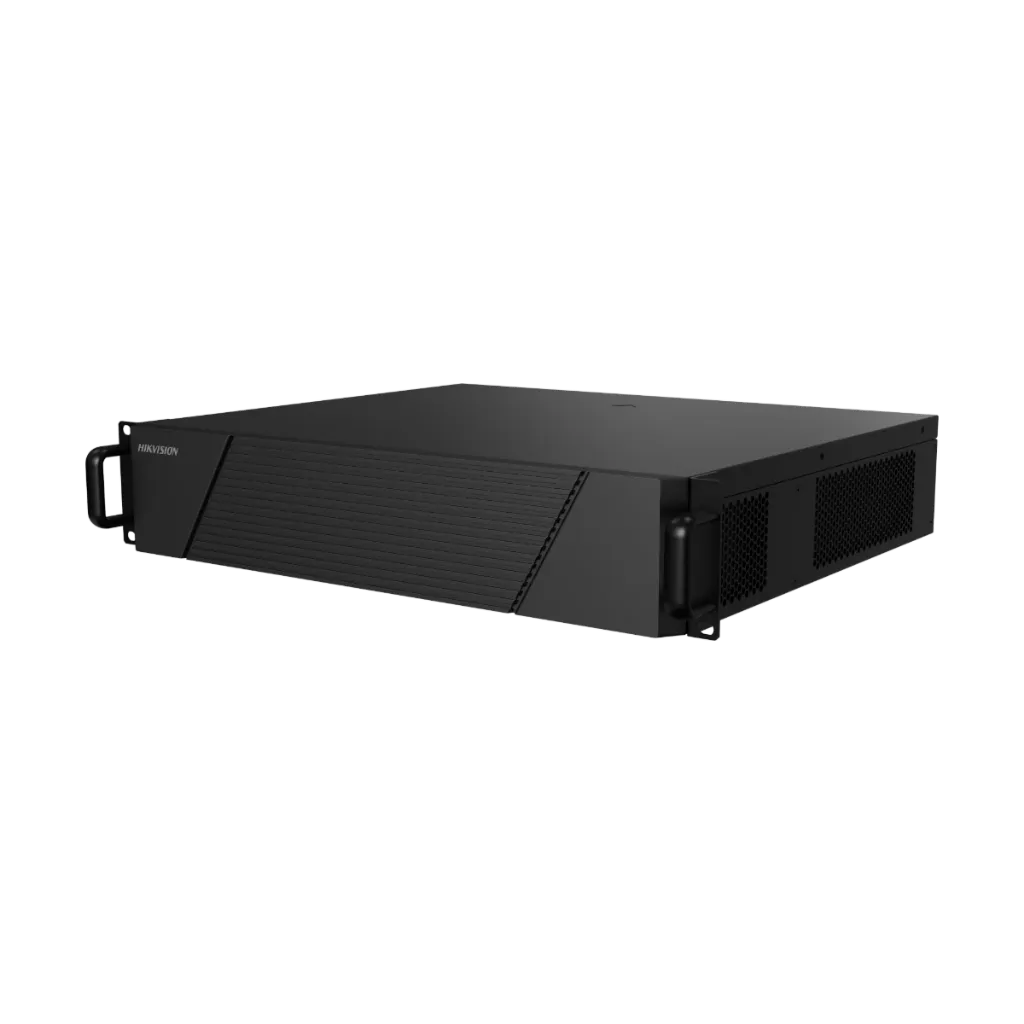

The Hikvision DS-6920UDI-U is a video wall decoder: it pulls camera streams over the network and shows them on up to 20 screens through its HDMI 1.4 outputs (up to 4K). Decoding capacity: 10-ch 32 MP / 24 MP, 20-ch 16 MP / 12 MP, 40-ch 8 MP, 60-ch 6 MP / 5 MP, 90-ch 4 MP, 180-ch 1080p, 360-ch 720p / D1 and lower (30 fps). It also takes HDMI sources such as PCs (4 × HDMI 1.4). ONVIF lets it decode cameras of other brands too.

Our engineers size the decoder to your cameras and screens and send a free BOQ.

#Display
See full specs and details Have a question? 4 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

What you need

The decoder sits between your cameras and the screens; our engineers size it to both.

PartModelWhat it doesQty
Cameras or NVRHikvision IP cameras / NVR (ONVIF cameras too)The video streams it decodesas needed
Network switchGigabit switchCarries the streams to the decoder1
Screensvideo wall displays or monitorsOne per outputup to 20

Planning a control room? Tell us the screens, the cameras and the PC or NVR sources, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • Video wall decoder
  • Decoding: 10-ch 32 MP / 24 MP
  • Up to 32 MP, 360 channels
  • 20 × HDMI 1.4 output, max 4K
  • Input: 4 × HDMI 1.4
  • Video wall up to 16 screens
Chat on WhatsApp
Chassis
Chassis Height2U
Bus TypeNetwork switching
Service Board SlotInput slots: 1, output slots: 5
Main Control Board Slot2
Interface
Optical Interface1 × 10 Gigabit optical port (SFP+)
Electrical Interface2 × 1000 Mbps Ethernet port (RJ-45)
USB Interface1 × USB 2.0
Video Input
Video Input Interface TypeHDMI 1.4
Video Input Interfaces4
Max. Video Input Resolution4K (odd-numbered ports only)
Video Output
Video Output Interface TypeHDMI 1.4
Video Output Interfaces20
Max. Video Output Resolution4K
Loading Capacity for Video Output to LEDSingle port load 2,600,000 pixels
Video Decoding
Video Decoding FormatH.264, H.265, Smart264, Smart265, HIK264, MPEG2, MPEG4
Video Decoding Resolution32 MP
Video Decoding Channels360
Video Decoding Capability10-ch 32 MP / 24 MP; 20-ch 16 MP / 12 MP; 40-ch 8 MP; 60-ch 6 MP / 5 MP; 90-ch 4 MP; 180-ch 1080p; 360-ch 720p / D1 and lower (30 fps)
Video Wall
Video Walls8
Video Wall Scale≤ 16
Window Division1, 4, 6, 8, 9, 16, 25, 36
Scenes128
Power
Power Interface100 VAC to 240 VAC, 50/60 Hz
Device Power Consumption200 W
General
Dimensions (W × H × D)442 mm × 88.1 mm × 385 mm
Net Weight8.27 kg
Working Humidity10% RH to 90% RH, no condensation
Questions & answers

Know before you buy

Quick answers about the DS-6920UDI-U, and how it compares.

How many cameras can it show?

Up to 360 channels at the same time (decoding capacity: 10-ch 32 MP / 24 MP, 20-ch 16 MP / 12 MP, 40-ch 8 MP, 60-ch 6 MP / 5 MP, 90-ch 4 MP, 180-ch 1080p, 360-ch 720p / D1 and lower (30 fps)).

How many screens can it drive?

20 HDMI 1.4 outputs, up to 4K. One video wall of up to 16 screens.

Does it work with other camera brands?

Yes, it takes ONVIF cameras as well as Hikvision cameras and NVRs.

Can I buy it online?

Video wall controllers and decoders are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
