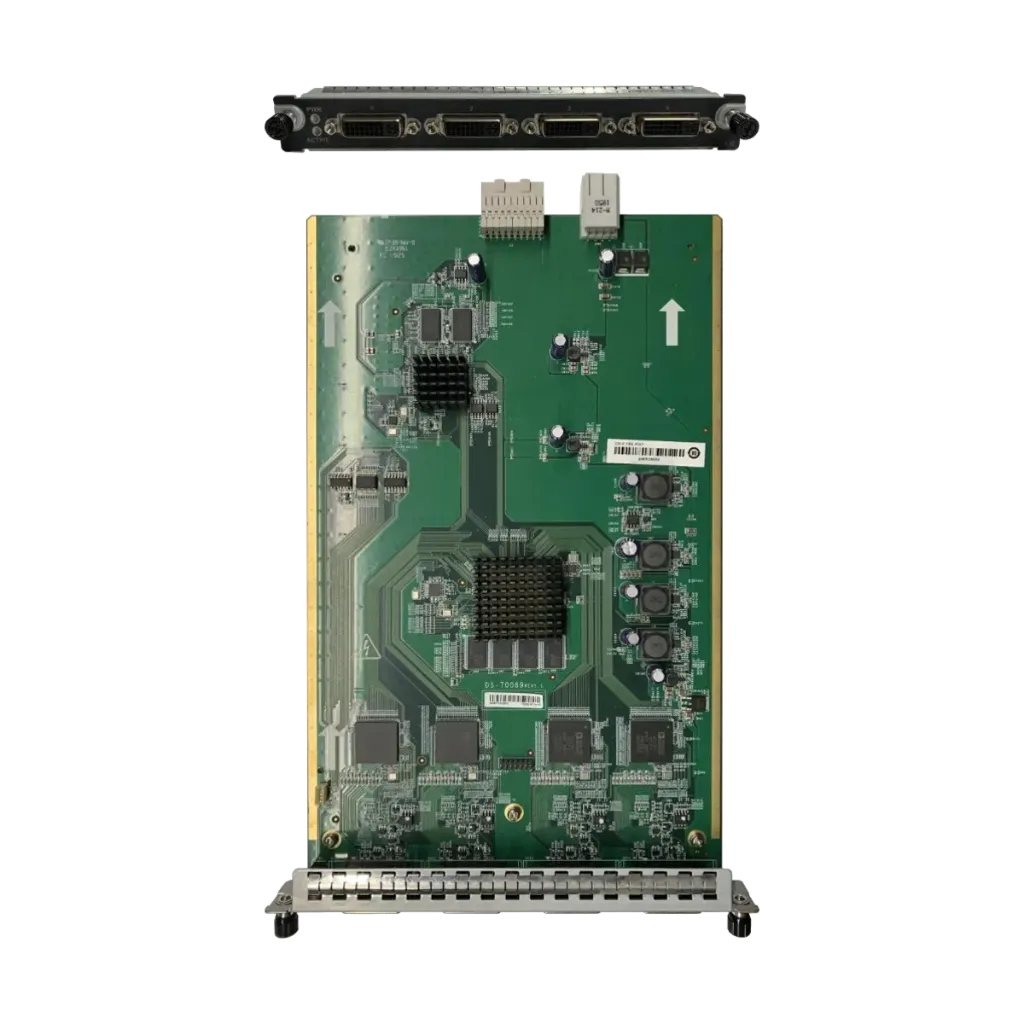

The Hikvision DS-C10S-DI4T is a 4-channel DVI input board for the DS-C10S video wall controller (DS-C10S-S09T, DS-C10S-S11T and DS-C10S-S22T).

Our engineers choose the boards for your sources and screens and send a free BOQ.

#Display
See full specs and details
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

Key specs

  • 4-channel DVI input board
  • 4 × DVI
  • Max. 1920 × 1200@60Hz
  • Fits: DS-C10S-S09T, DS-C10S-S11T, DS-C10S-S22T
Chat on WhatsApp
Card
ModelDS-C10S-DI4T
Card TypeInput card (DVI)
Input InterfaceDVI
Channels per Card4
DVI Input Resolution720P@50Hz, 720P@60Hz, 1080P@50Hz, 1080P@60Hz, 1600 × 1200@60Hz, 1920 × 1200@60Hz
Max. Input Resolution1920 × 1200@60Hz
Chassis (DS-C10S-SXXT Series)
Hardware Slot NumberDS-C10S-S09T: 9 (6 × Input, 3 × Output); DS-C10S-S11T: 11 (6 × Input, 5 × Output); DS-C10S-S22T: 22 (12 × Input, 10 × Output)
ChassisStandard 4U chassis / Standard 8U chassis (per-model mapping not explicit)
Dimensions (D × H × W)352 × 177 × 442.4 mm (13.9 × 7 × 17.4 inch) / 352 × 354 × 442.4 mm (13.9 × 13.9 × 17.4 inch)
Power Supply100 to 240 VAC, 50/60 Hz; built-in power supply / built-in redundant power supply
Power Consumption≤ 250 W (full-loaded) / ≤ 450 W (full-loaded)
Weight≤ 20 kg (full-loaded) / ≤ 35 kg (full-loaded)
Working Temperature+0 °C to +50 °C (+32 °F to +122 °F)
Working Humidity10 to 90% (non-condensing)
Motherboard (DS-C10S-MSUT)
Network Interface1, 10M/100M/1000M self-adaptive Ethernet interface
RS-232 Serial Interface2
USB1 × USB 2.0 (reserved)
Cascade Network Interface2, SYNC OUT/IN (reserved)
