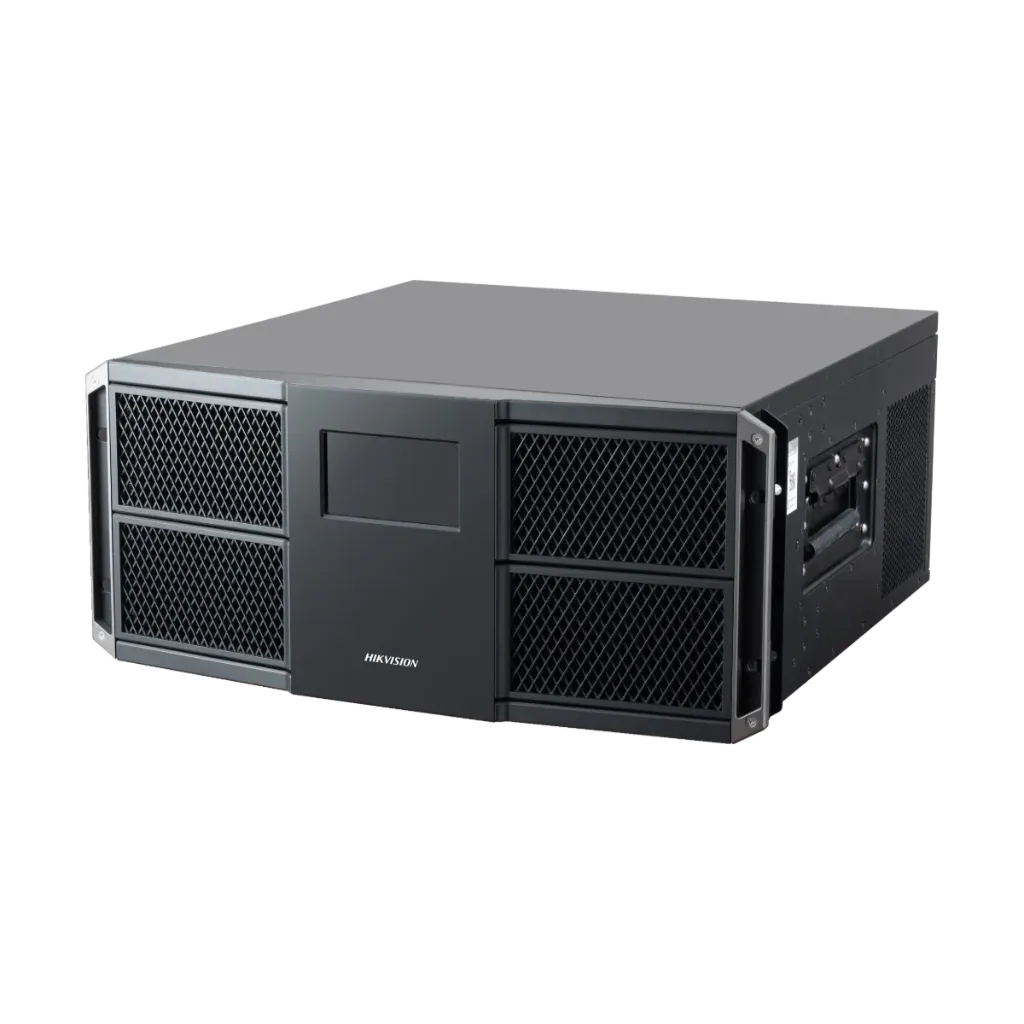

DS-C30S-S11
Video wall controller, 11-slot chassis, 4.5 U
- 11 service board slots
- Up to 8 video walls, up to 40 screens
- HDMI and 4K input and output boards
- Redundant power supply design; 4 intelligent fans with automatic temperature adjustment
DS-C30S-S11
Video wall controller, 11-slot chassis, 4.5 U
- 11 service board slots
- Up to 8 video walls, up to 40 screens
- HDMI and 4K input and output boards
- Redundant power supply design; 4 intelligent fans with automatic temperature adjustment
Key specs
- Video wall controller chassis
- 11 service board slots, 4.5 U
- Video walls: 8
- Video wall scale: up to 40 screens
- Scenes: 128
- Hot-swappable boards
- Input boards: DS-C30S-04HI
- Output boards: DS-C30S-02HO/4K
- Power: ≤ 550 W (full configuration)
| Chassis | |
|---|---|
| Chassis Height | 4.5 U |
| Bus Type | 10 GB network switching |
| Signal Sampling Quality | YUV 444 |
| Mixed Installation of Service Boards | Supported |
| Main Control Board Slot | 2 |
| Service Board Slot | 11 |
| Installed Main Control Boards | 1 |
| Max. Input Slot | 10 |
| Max. Output Slot | 10 |
| Power Supply Slot | 3 |
| Installed Power Supplies | 1 |
| Fans | 4 |
| Dual Device Hot Backup | Supported |
| Interface | |
| USB Interface | 2 × USB 2.0 |
| Serial Interface | 2 × Console port (RJ-45) and 1 × RS-485/RS-232 multiplex interface (RJ-45), 115200 baud, 8 data bits |
| Screen | |
| Screen Type | 4.3-inch non-touch |
| Size | 105.42 mm × 67.07 mm (4.15 in × 2.64 in) |
| Resolution | 480 × 272 |
| Power | |
| Power Interface | 100 VAC to 240 VAC, 50/60 Hz |
| Device Power Consumption | ≤ 550 W (full configuration) |
| Network | |
| Management Network Interface | 2 × 10/100/1000 Mbps auto-sensing Ethernet (2 on the switching board, 1 reserved on the main control board) |
| Transmission Protocol | SDK, RTSP, ONVIF |
| Video Wall | |
| Video Walls | 8 |
| Video Wall Scale | 40 |
| Split Window | Supported |
| Open Windows | 16 |
| Window Division per Output Port | 1, 4, 6, 8, 9, 16 |
| Input Source Copy Capability | Each output board duplicates eight 2K images; LED controller board has no copy capability |
| Layers Per Port | 8 × 1080p or 4 × 4K |
| Layers per Device | 512 (fully installed with output boards) |
| Scenes | 128 |
| Scene Auto-Switch Delay | 400 ms |
| Plans | 128 |
| UHD Fusions | ≤ 16 |
| Background Image | 8 in total, one per video wall; 16382 × 8192; JPG, JPEG |
| Subtitles | ≤ 12 in total; single video wall ≤ 3 |
| Input OSD | Supported |
| Input Image Clipping | Supported; 200 pixels each on top, bottom, left and right |
| Local Signal Source Decoding Delay | 50 ms |
| Network Signal Source Decoding Delay | 200 ms |
| Display Video Wall Image | Supported |
| Live View Resolution | |
| Standard | 16-channel D1 or 32-channel CIF |
| Video wall preview on client (all service boards installed) | 4-channel D1 or 16-channel CIF |
| Device Parameters | |
| Device Splicing Capability | 40 channels |
| Environment | |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 10% to 90% |
| General | |
| Net Weight | ≤ 33.39 kg (73.65 lb), full configuration (chassis 21.84 kg; 1.05 kg (2.31 lb) per service board) |
| Gross Weight | ≤ 51.32 kg (113.13 lb), full configuration (chassis 29.1 kg; 2.02 kg (4.45 lb) per service board) |
| Dimensions (W × H × D) | 442 mm × 207.8 mm × 447 mm (17.4 in × 8.18 in × 17.59 in) |
| Packing List | 1 grounding cable, 1 audio adapter cable, 1 serial port cable, 1 AC power cord, 1 power supply, 1 regulatory compliance and safety information manual |
