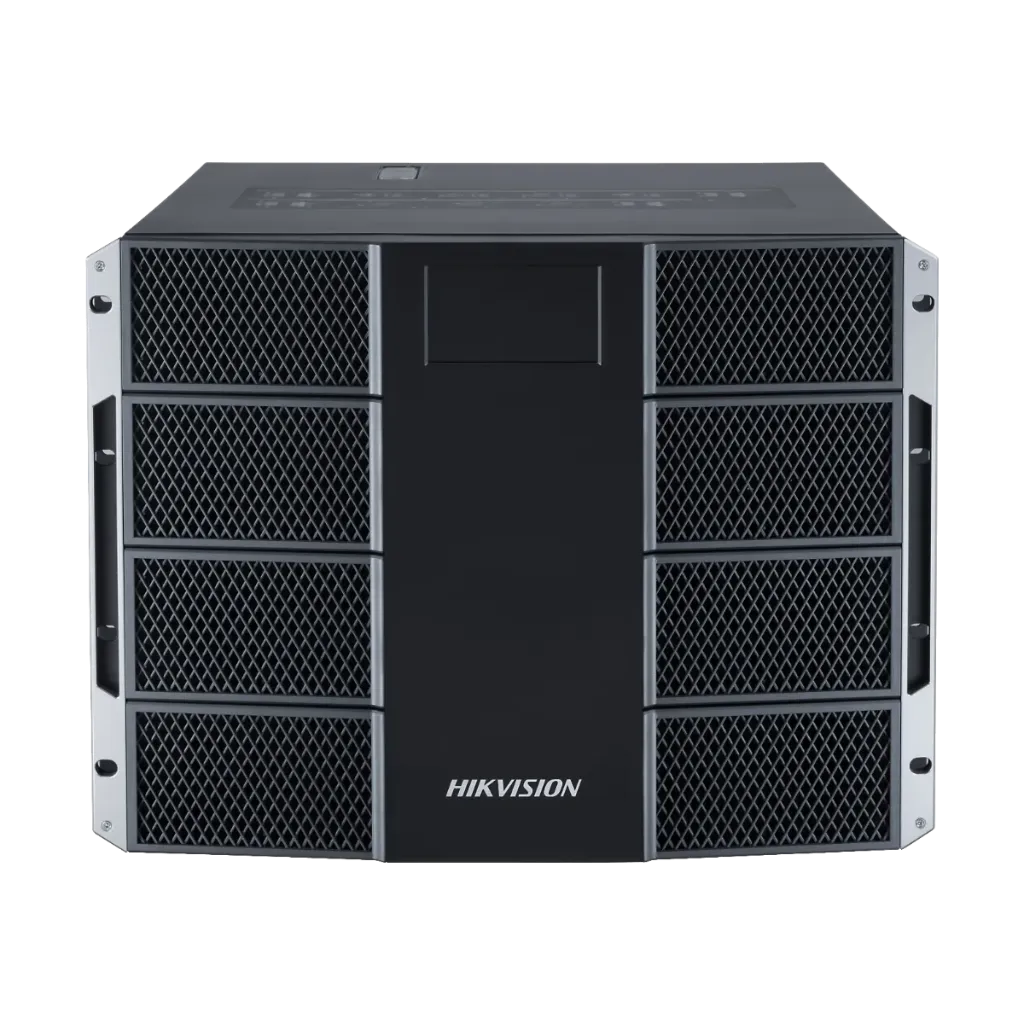

DS-C30S-S23
Video wall controller, 23-slot chassis, 8U
- 23 service board slots
- Up to 8 video walls, up to 88 screens
- HDMI and 4K input and output boards
- Redundant power supply design, 6 intelligent fans, 2 main control board slots
DS-C30S-S23
Video wall controller, 23-slot chassis, 8U
- 23 service board slots
- Up to 8 video walls, up to 88 screens
- HDMI and 4K input and output boards
- Redundant power supply design, 6 intelligent fans, 2 main control board slots
Key specs
- Video wall controller chassis
- 23 service board slots, 8U
- Video walls: 8
- Video wall scale: up to 88 screens
- Scenes: 128
- Hot-swappable boards
- Input boards: DS-C30S-04HI
- Output boards: DS-C30S-02HO/4K
- Power: ≤ 1000 W (full configuration)
| Chassis | |
|---|---|
| Chassis Height | 8U |
| Bus Type | 10 GB network switching |
| Signal Sampling Quality | YUV 444 |
| Mixed Installation of Service Boards | Supported |
| Main Control Board Slot | 2 |
| Service Board Slot | 23 |
| Installed Main Control Boards | 1 |
| Max. Input Slot | 22 |
| Max. Output Slot | 22 |
| Device Splicing Capability | 88 channels |
| Power Supply Slot | 3 |
| Installed Power Supplies | 2 |
| Fan | 6 |
| Dual Device Hot Backup | Supported |
| Interface | |
| USB | 2 × USB 2.0 |
| Serial Interface | 2 × console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45) |
| Screen | 4.3-inch non-touch screen, 480 × 272 |
| Network | |
| Management Network Port | 2 × 10/100/1000 Mbps auto-sensing Ethernet |
| Transmission Protocol | SDK, RTSP, ONVIF |
| Video Wall | |
| Video Walls | 8 |
| Video Wall Scale | 88 |
| Open Windows | 16 |
| Window Division per Screen | 1, 4, 6, 8, 9, 16 |
| Layers Per Screen | 8 × 1080p layers or 4 × 4K layers |
| Layers per Device | 512 (fully installed with output boards) |
| Scenes | 128 |
| Scene Auto-Switch Delay | 400 ms |
| Plans | 128 |
| UHD Fusions | ≤ 16 |
| Background Image | 8 in total, one per video wall, 16382 × 8192, JPG / JPEG |
| Subtitles | ≤ 12 in total, ≤ 3 per video wall |
| Input Image Clipping | 200 pixels on top, bottom, left and right |
| Local Signal Source Decoding Delay | 50 ms |
| Network Signal Source Decoding Delay | 200 ms |
| Power | |
| Power Interface | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | ≤ 1000 W (full configuration) |
| Environment | |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 10% to 90% |
| General | |
| Net Weight | ≤ 57.54 kg full configuration (chassis 31.14 kg, 1.05 kg per service board) |
| Dimensions (W × H × D) | 442 mm × 354.8 mm × 447 mm |
| Packing List | Grounding cable, audio adapter cable, serial port cable, AC power cord, 2 × power supply, safety manual |
