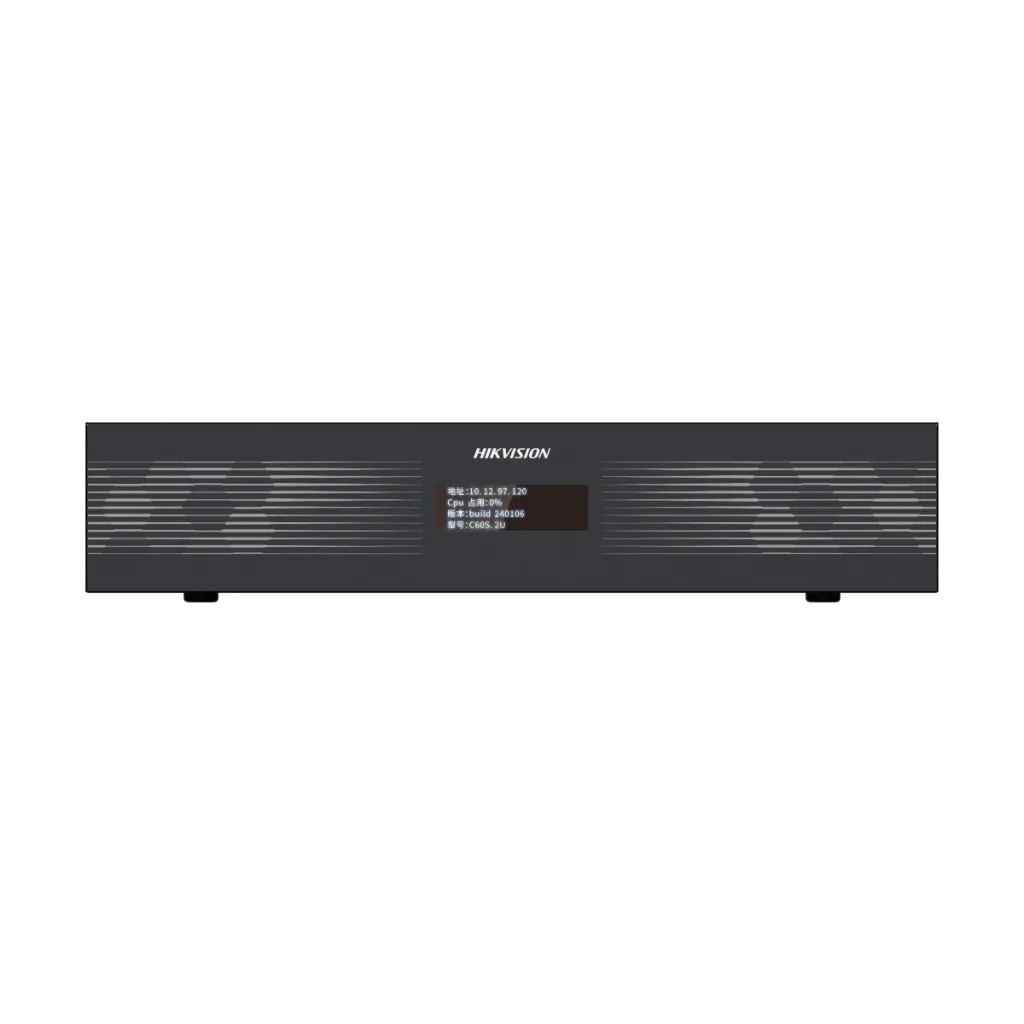

DS-C60S-S6
Video wall controller, 6-slot chassis, 2 U
- 6 service board slots (mixed input / output)
- Up to 3 video walls, up to 16 screens when fully installed with input and output boards
- HDMI and 4K input and output boards
- LED walls through the 20-port LED board
DS-C60S-S6
Video wall controller, 6-slot chassis, 2 U
- 6 service board slots (mixed input / output)
- Up to 3 video walls, up to 16 screens when fully installed with input and output boards
- HDMI and 4K input and output boards
- LED walls through the 20-port LED board
Key specs
- Video wall controller chassis
- 6 service board slots, 2 U
- Video walls: 3
- Video wall scale: Up to 16 screens when fully installed with input and output boards
- Scenes: 128
- Hot-swappable boards
- Input boards: DS-C60S-02HI/4K
- Power: ≤ 150 W (full configuration)
| Chassis | |
|---|---|
| Chassis Height | 2 U |
| Chassis Bus Type | High speed bus |
| Main Control Board Slot | 1 |
| Service Board Slot | 6 (2 input slots, 2 output slots, 2 mixed input/output slots) |
| Installed Main Control Boards | 1 |
| Installed Power Supplies | 1 |
| Fans | 1 (left air duct and right air duct ventilation) |
| Screen | 3.3-inch non-touch status panel |
| Main Control Board (DS-C60S-MCU) | |
| Serial Interface | 1 × debug serial port + 1 × RS-485 port (Phoenix contact, 115200 baud, 8 data bits) + 1 × RS-232 port (Phoenix contact, 115200 baud, 8 data bits) |
| Audio Input Interfaces | 2 × 3.5 mm |
| Audio Output Interfaces | 4 × 3.5 mm |
| Control Network Port | 1 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) |
| Power | |
| Power Interface | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | ≤ 150 W (full configuration) |
| Video Wall | |
| Video Walls | 3 |
| Splicing | Up to 16 screens when fully installed with input and output boards |
| Window Division | 1/4/6/8/9/16 |
| Layers | A single port supports window opening of any layer |
| Scenes | 128 |
| Auto-switch Groups | Up to 64 source groups |
| Subtitles | Up to 9, up to 3 per video wall |
| Background Images | 3 at 1080p, one per video wall |
| UHD Fusion | Up to eight 4K inputs |
| Decoding (with DS-C60S-DEC board) | |
| Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
| Decoding Channels | 48 |
| Decoding Capability | 24 channels of 1080p@30 fps or 48 channels of 720p@30 fps (Smart H.265/Smart H.264/H.264/H.265); MJPEG: 4 channels of 1080p@30 fps |
| Audio Decoding | G.711-A/U, G.722.1, G.726-16/U, MPEG, AAC-LC |
| Environment | |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 10% to 90% |
| General | |
| Dimensions (W × H × D), chassis | 442 mm × 88.1 mm × 385 mm (17.40 in × 3.47 in × 15.16 in) |
| Dimensions (W × H × D), board | 192 mm × 20.1 mm × 223.5 mm (7.56 in × 0.79 in × 8.80 in) |
| Net Weight | ≤ 7.6 kg (16.76 lb), full configuration; chassis 5.21 kg (11.49 lb); each board 0.46 kg (1.01 lb) |
