Out of stock

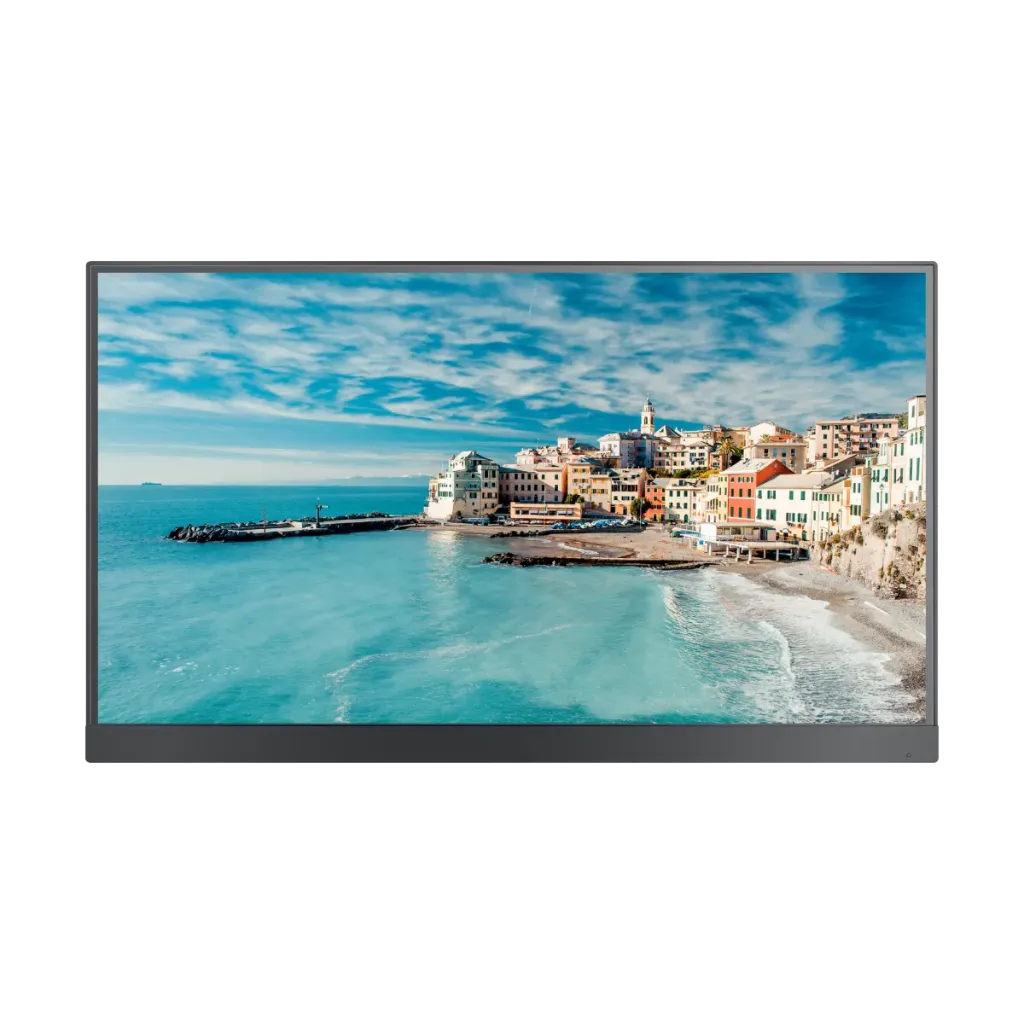

DS-D6022FN-B
21.5-inch digital signage
- 1920 × 1080, 250 cd/m²
- Wi-Fi and LAN for remote content
DS-D6022FN-B
21.5-inch digital signage
- 1920 × 1080, 250 cd/m²
- Wi-Fi and LAN for remote content
Key specs
- 21.5-inch digital signage
- 1920 × 1080
- 250 cd/m²
- Network: RJ45, Wi-Fi
- ≤ 40 W, 3.03 kg
| Display | |
|---|---|
| Screen Size | 21.5 inch |
| Active Display Area | 478.656 mm (H) × 260.28 mm (V) |
| Backlight | ELED |
| Pixel Pitch | 0.24795 mm × 0.24795 mm |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit (16.7 M colors) |
| Contrast Ratio | 3000:1 |
| Response Time | 6.5 ms |
| Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Built-in System | |
| CPU | Cortex-A17, 4-core, 1.6 GHz |
| Built-in Memory | 2 GB |
| Built-in Storage | 16 GB |
| Interface | |
| Network | LAN × 1, Wi-Fi |
| Data Transmission | USB 2.0 × 2, TF card × 1, BT 4.0 (printed as × 2) |
| Power | |
| Power Input | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | ≤ 40 W |
| Standby Consumption | ≤ 10 W |
| Working Environment | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 20% to 90% RH |
| General | |
| Product Dimensions (W × H × D) | 516.75 × 320.03 × 46.55 mm |
| Package Dimensions (W × H × D) | 593 × 434 × 157 mm |
| Net Weight | 3.03 kg |
| Gross Weight | 4.63 kg |
