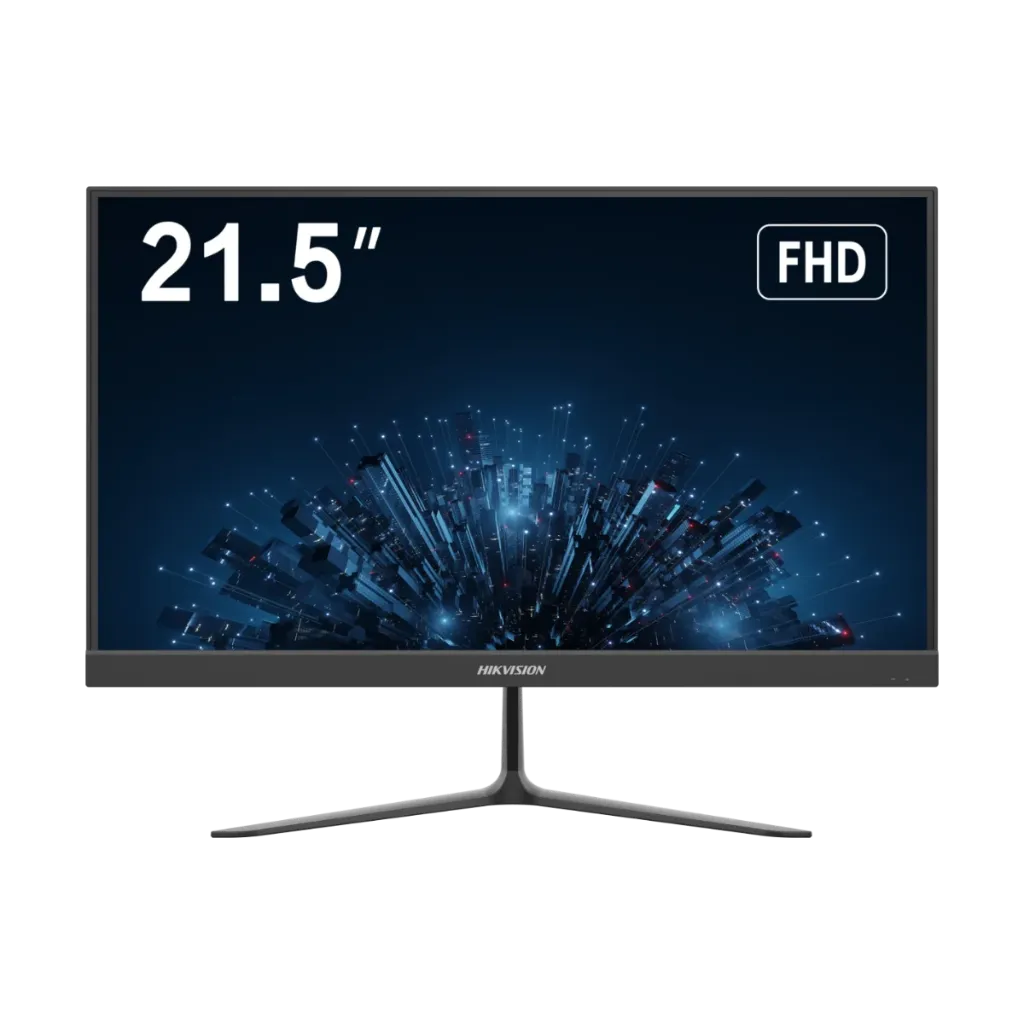

DS-D5022F2-6P2
21.5-inch Full HD monitor, 7 × 16 h
- 1920 × 1080, 100 Hz
- 250 cd/m²
- Inputs: HDMI 1.4, VGA
- Rated for 7 × 16 h operation
DS-D5022F2-6P2
21.5-inch Full HD monitor, 7 × 16 h
- 1920 × 1080, 100 Hz
- 250 cd/m²
- Inputs: HDMI 1.4, VGA
- Rated for 7 × 16 h operation
Key specs
- 21.5-inch Full HD monitor
- 1920 × 1080, 100 Hz
- 250 cd/m², 1000:1 contrast
- Response time 8 ms
- Inputs: HDMI 1.4, VGA
- Rated for 7 × 16 h operation
- Stand included, VESA 75 × 75 mm
- ≤ 24 W, 2.0 ±0.5 kg
| Display | |
|---|---|
| Screen Size | 21.5 inch |
| Active Display Area | approx. 478.7 mm (H) × 260.3 mm (V) (rounded in extraction) |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.0831 mm (H) × 0.241 mm (V) |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 1000:1 |
| Response Time | 8 ms |
| Refresh Rate | 100 Hz |
| Haze | 25%, 3H |
| Reliability | 7 × 16H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1 |
| Video & Audio Output | Audio Out × 1 (3.5 mm) |
| Power Input | DC 12 V, 2.0 A |
| Power | |
| Power Supply | DC 12 V, 2.0 A |
| Power Consumption | ≤ 24 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 20% to 90% RH (non-condensing) |
| Storage Temperature | -20 °C to 60 °C |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 75 mm × 75 mm (4 × M4 × 6 mm) |
| Bezel Width | 2.38 mm (top/left/right), 21.55 mm (bottom) |
| Product Dimensions (with base, W × H × D) | 493.26 × 369.12 × 162.75 mm (19.42 × 14.53 × 6.41 in) |
| Product Dimensions (without base, W × H × D) | 493.26 × 290.14 × 42.68 mm (19.42 × 11.42 × 1.68 in) |
| Package Dimensions (W × H × D) | 598 × 391 × 106 mm (23.54 × 15.39 × 4.17 in) |
| Net Weight | 2.0 ± 0.5 kg (4.4 ± 1.1 lb) |
| Gross Weight | 3.2 ± 0.5 kg (7.1 ± 1.1 lb) |
| Packing List | |
| Contents | Monitor × 1, Base × 1 (included by default), 12 V 2 A power adapter × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
Know before you buy
Quick answers about the DS-D5022F2-6P2, and how it compares.
How many hours a day can it run?
Hikvision rates it for 7 × 16 h operation (16 hours a day, 7 days a week). For round-the-clock viewing, choose a model rated 7 × 24 h.
Can I connect it to my NVR or DVR?
Yes. Connect the HDMI output of the NVR or DVR to the monitor (an HDMI cable is in the box).
Can it be wall-mounted?
Yes. It takes a VESA 75 × 75 mm wall mount such as DS-DM1940W. The table stand is in the box too.
Can I buy it online?
Monitors and their mounts are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
