DS-D5027F3-2P2
Out of stock

DS-D5027F3-2P2

(0 reviews)

The Hikvision DS-D5027F3-2P2 is a 27-inch Full HD monitor: 1920 × 1080 100 Hz, 300 cd/m², 1300 : 1 contrast. Hikvision rates it for 7 × 24 h operation, so it suits CCTV viewing in guard rooms and control rooms. Inputs: HDMI1.4, VGA.

The stand is in the box. For the wall, use DS-DM1940W (VESA 100 × 100 mm).

#Display#Screen_27
See full specs and details Have a question? 4 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-D5027F3-2P2

27-inch Full HD monitor, 7 × 24 h

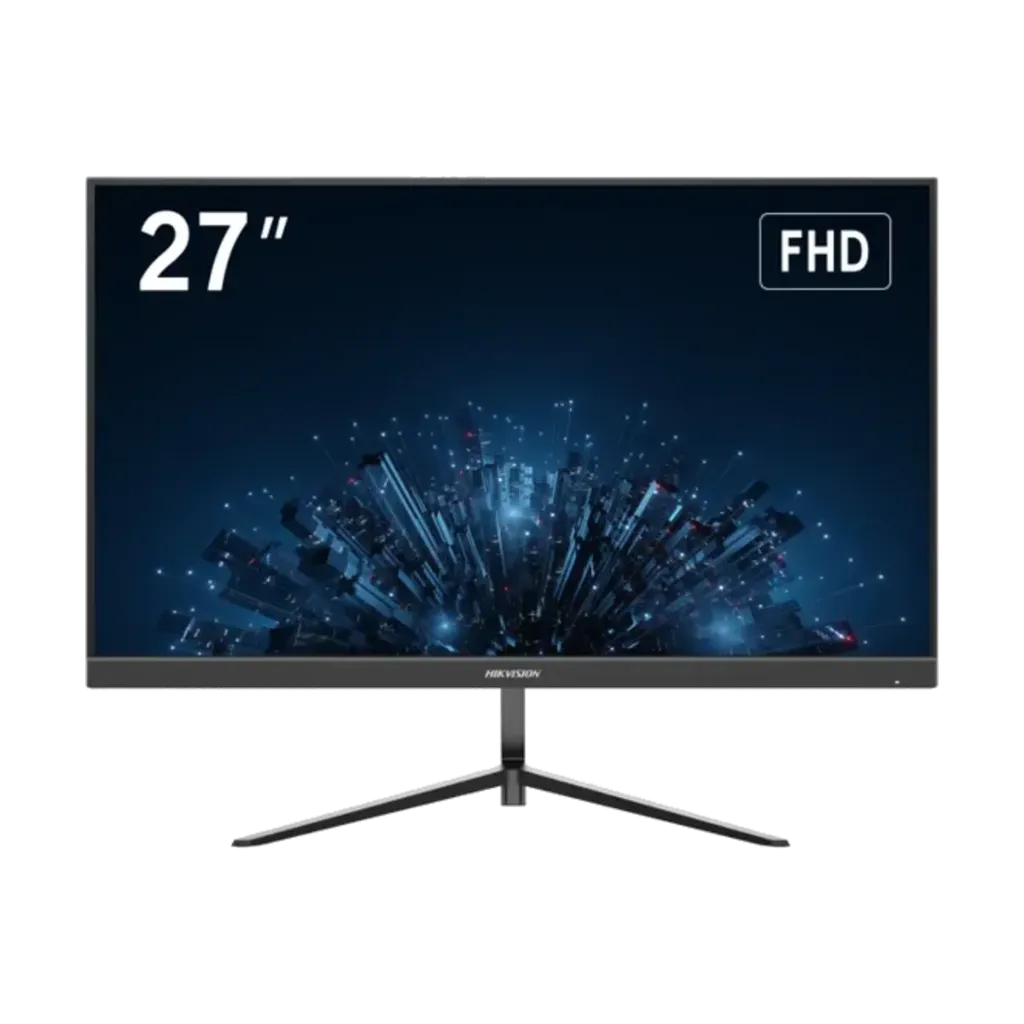

Hikvision DS-D5027F3-2P2 27-inch Full HD monitor, 7 × 24 h
  • 1920 × 1080, 100 Hz
  • 300 cd/m²
  • Inputs: HDMI1.4, VGA
  • Rated for 7 × 24 h operation
Video wallControllers & decodersInteractive displaysDigital signage

What you need

Connect a source and the monitor is ready; our engineers match monitors to your NVR and room.

PartModelWhat it doesQty
Video sourceHikvision NVR, DVR or a PCShows your cameras or a PC screen1
CableHDMI (1.5 m cable in the box)Connects the source to the monitor1
Wall mount (optional)DS-DM1940WVESA 100 × 100 mm bracket for the wall1

Several screens? Tell us the sizes, the sources (NVR, DVR, PC) and how they are mounted, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • 27-inch Full HD monitor
  • 1920 × 1080, 100 Hz
  • 300 cd/m², 1300 : 1 contrast
  • Response time 14 (Typ) ms
  • Inputs: HDMI1.4, VGA
  • Rated for 7 × 24 h operation
  • Stand included, VESA 100 × 100 mm
  • ≤ 30 W, 3.45 ±0.5 kg
Chat on WhatsApp
Display
Screen Size27 inch
Active Display Area597.888 (H) mm × 336.312 (V) mm
Resolution1920 × 1080
BacklightE-LED
Pixel Pitch0.3114 (H) mm × 0.3114 (V) mm
Brightness300 cd/m²
Viewing Angle178° (H) / 178° (V)
Color Depth8 bit, 16.7 M
Contrast Ratio1300 : 1
Response Time14 (Typ) ms
Refresh Rate100 Hz
HazeHaze 25%, 3H
Reliability7 * 24H
Color Gamut72% NTSC
Interface
Video & Audio InputHDMI1.4 × 1, VGA × 1
Video & Audio OutputLine-Out × 1 (3.5 mm audio)
Data Transmission InterfaceNULL
Control InterfaceNULL
Power
Power SupplyDC 12V, 2.5A Max
Power Consumption≤ 30 W
Standby Consumption≤ 0.5 W
Working Environment
Operating Temperature0 °C to 40 °C
Operating Humidity10% to 90% RH (non-condensing)
Storage Temperature-20 °C to 60 °C
Storage Humidity5% to 90% RH (non-condensing)
General
Casing MaterialPlastic
VESA100 mm × 100 mm (4-M4 × 10 mm)
Bezel Width0.12 inch (top/left/right), 0.87 inch (bottom)
Product Dimensions (without base)24.16 (W) × 14.5 (H) × 1.87 (D) inch
Product Dimensions (with base)24.16 (W) × 18.56 (H) × 7.6 (D) inch
Package Dimensions27.01 (W) × 17.72 (H) × 5.04 (D) inch
Net Weight3.45 ± 0.5 kg (7.61 ± 1.1 lb.)
Gross Weight4.90 ± 0.5 kg (10.80 ± 1.1 lb.)
Packing List
ContentsMonitor, base component, base screws (hex socket), hex key, 12V 2.5A adapter, HDMI cable (1.5 m), user manual, multilingual manual
Questions & answers

Know before you buy

Quick answers about the DS-D5027F3-2P2, and how it compares.

Can it run 24/7?

Yes. Hikvision rates it for 7 × 24 h operation.

Can I connect it to my NVR or DVR?

Yes. Connect the HDMI output of the NVR or DVR to the monitor (an HDMI cable is in the box).

Can it be wall-mounted?

Yes. It takes a VESA 100 × 100 mm wall mount such as DS-DM1940W. The table stand is in the box too.

Can I buy it online?

Monitors and their mounts are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
