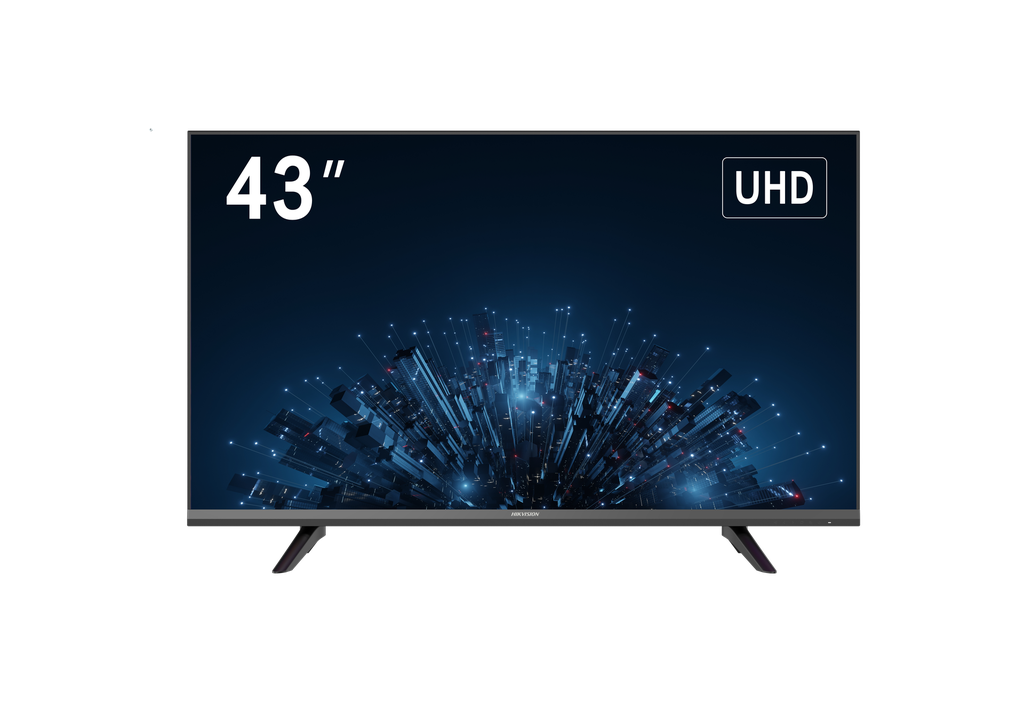

43-inch 4K UHD monitor, 7 × 24 h
- 3840 × 2160 @ 60 Hz
- 300 cd/m²
- Built-in speakers 8 Ω 10 W × 2
- Rated for 7 × 24 h operation
DS-D5043U3-1V0S
43-inch 4K UHD monitor, 7 × 24 h
- 3840 × 2160 @ 60 Hz
- 300 cd/m²
- Built-in speakers 8 Ω 10 W × 2
- Rated for 7 × 24 h operation
Key specs
- 43-inch 4K UHD monitor
- 3840 × 2160 @ 60 Hz
- 300 cd/m², 4000:1 contrast
- Response time 6.5 ms (Typ)
- Speakers 8 Ω 10 W × 2
- Rated for 7 × 24 h operation
- Stand included, VESA 200 × 200 mm
- ≤ 80 W, 6.81 ±0.5 kg
| Display | |
|---|---|
| Screen Size | 43 inch |
| Active Display Area | 941.184 (H) mm × 529.416 (V) mm |
| Resolution | 3840 × 2160 @ 60 Hz |
| Backlight | D-LED |
| Pixel Pitch | 0.2451 (H) × 0.2451 (V) mm |
| Brightness | 300 cd/m² |
| Viewing Angle | 178° / 178° |
| Color Depth | 8 bit + FRC |
| Contrast Ratio | 4000:1 |
| Response Time | 6.5 ms (Typ) |
| Refresh Rate | 60 Hz |
| Haze | 25% |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | HDMI × 1, DP × 1, VGA × 1, LINE IN × 1 |
| Video & Audio Output | Speaker OUT × 2 (8Ω 10W) |
| Data Transmission Interface | USB2.0 × 1 |
| Control Interface | RS232-IN × 1, RS232-OUT × 1 |
| Physical Interfaces | AC 100-240V~, 50/60Hz, 1.0A Max; HDMI 1.4 digital input; DP 1.2 digital input; VGA analog input; USB2.0 input; 3.5mm Audio input; RS232-IN; RS232-OUT |
| Interface | |
| Video & Audio Input | HDMI × 3 |
| Video & Audio Output | LINE OUT × 1, Speaker OUT × 2 (8Ω 10W) |
| Data Transmission Interface | USB2.0 × 1 |
| Control Interface | RS232-IN × 1, RS232-OUT × 1 |
| Physical Interfaces | AC 100-240V~, 50/60Hz, 1.0A Max; HDMI 1.4 digital input; USB2.0 input; 3.5mm Audio output; RS232-IN; RS232-OUT |
| Power | |
| Power Supply | 100-240 V~, 50/60 Hz, 1.0 A Max |
| Power Consumption | ≤ 80 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0 °C to 50 °C (41 °F to 104 °F) |
| Working Humidity | 10% ~ 90% RH (Non-Condensing) |
| Storage Temperature | -20 °C to 60 °C (14 °F to 140 °F) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| General | |
| Speaker | 8 Ω 10 W × 2 |
| Casing Material | Plastic |
| VESA | 7.87 inch × 7.87 inch |
| Bezel Width | 0.04 inch (top/left/right), 0.94 inch (bottom) |
| Product Dimensions (without base) | 37.67 (W) inch × 22.11 (H) inch × 2.99 (D) inch |
| Product Dimensions (with base) | 37.67 (W) inch × 24.26 (H) inch × 9.53 (D) inch |
| Package Dimensions | 1073 (W) mm × 668 (H) mm × 161 (D) mm (42.24 × 26.3 × 6.34 inch) |
| Net Weight | 6.81 ± 0.5 kg (15.01 ± 1.1 lb) |
| Gross Weight | 9.88 ± 0.5 kg (21.78 ± 1.1 lb) |
| Packing List | |
| Contents | Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6 |
| Remarks | Base is included by default |
Questions & answers
Know before you buy
Quick answers about the DS-D5043U3-1V0S, and how it compares.
Can it run 24/7?
Yes. Hikvision rates it for 7 × 24 h operation.
Can I connect it to my NVR or DVR?
Yes. Connect the HDMI output of the NVR or DVR to the monitor (an HDMI cable is in the box).
Can it be wall-mounted?
Yes. It takes a VESA 200 × 200 mm wall mount such as DS-DM4255W. The table stand is in the box too.
Does it have speakers?
Yes, built-in speakers: 8 Ω 10 W × 2.
Can I buy it online?
Monitors and their mounts are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
