Out of stock
Key specs

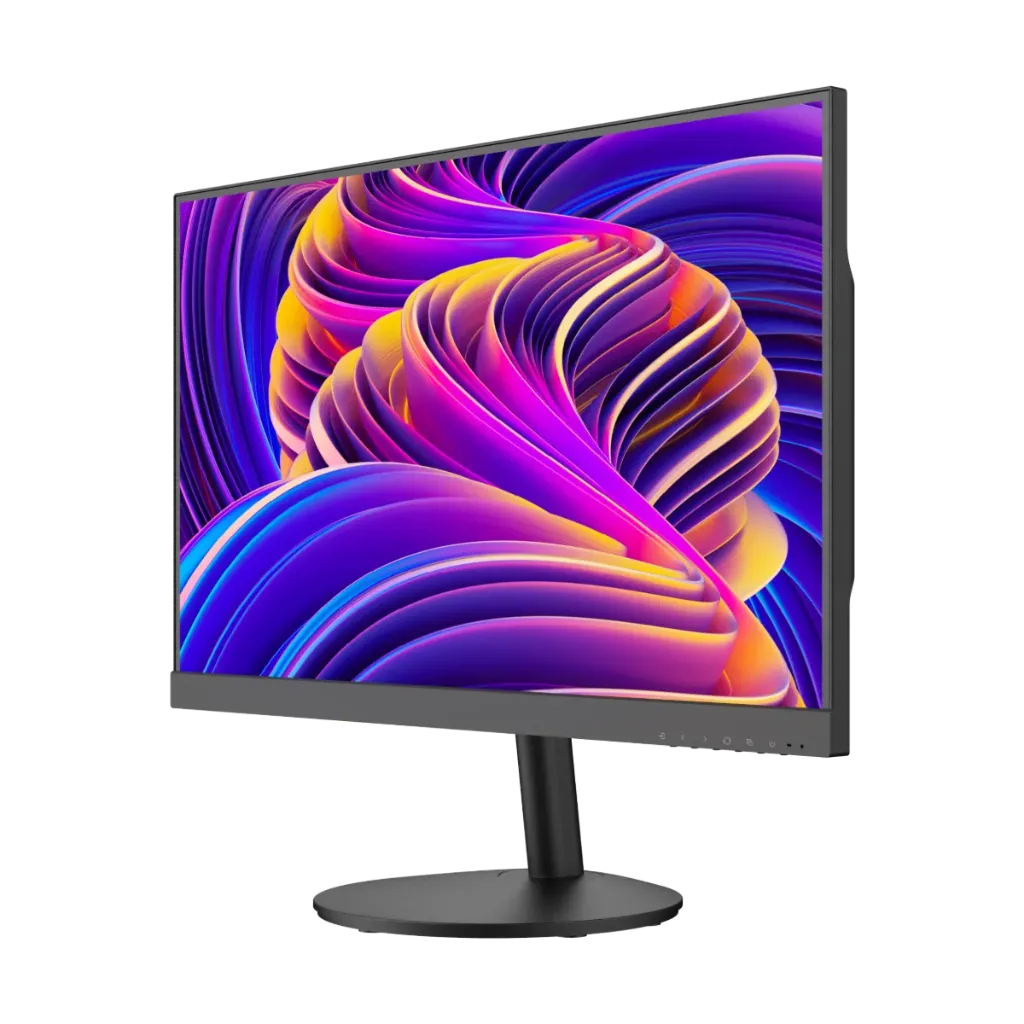

- 21.45-inch Full HD monitor
- 1920 × 1080, Max. 75 Hz, Typ. 60 Hz
- 250 cd/m², 3000:1 contrast
- Response time 6.5 ms
- Inputs: HDMI 1.4, VGA, CVBS, AUDIO IN
- Rated for 7 × 24 h operation
- VESA 75 × 75 mm
- ≤ 25 W, 2.65 ±0.5 kg
| Display | |
|---|---|
| Screen Size | 21.45 inch |
| Active Display Area | 478.656 (H) mm × 260.280 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.241 (H) mm × 0.241 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 3000:1 |
| Response Time | 6.5 ms |
| Refresh Rate | Max. 75 Hz, Typ. 60 Hz |
| Haze | 25%, 3H |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1, CVBS × 1, AUDIO IN × 1 |
| Video & Audio Output | Speaker (2 W 8 Ω) × 2 |
| Data Transmission Interface | USB 2.0 (program upgrade and USB online playback) × 1 |
| Power | |
| Power Supply | AC 100 to 240 V, 50/60 Hz, 0.5 A max |
| Power Consumption | ≤ 25 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C |
| Working Humidity | 10% RH to 80% RH (non-condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 75 mm × 75 mm (4 - M4 × 6 mm) |
| Bezel Width | 1.89 mm (top / left / right), 22.55 mm (bottom) |
| Product Dimensions (W × H × D) | 492.36 mm × 403.93 mm × 209.99 mm with stand |
| Net Weight | 2.65 ± 0.5 kg |
| Packing List | Monitor, base, AC power cable (1.5 m), HDMI cable (1.5 m), user manual |
Questions & answers
Know before you buy
Quick answers about the DS-D5222F2-1V1S, and how it compares.
Can it run 24/7?
Yes. Hikvision rates it for 7 × 24 h operation.
Can I connect it to my NVR or DVR?
Yes. Connect the HDMI output of the NVR or DVR to the monitor.
Can it be wall-mounted?
Yes. It takes a VESA 75 × 75 mm wall mount such as DS-DM1940W.
Can I buy it online?
Monitors and their mounts are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
