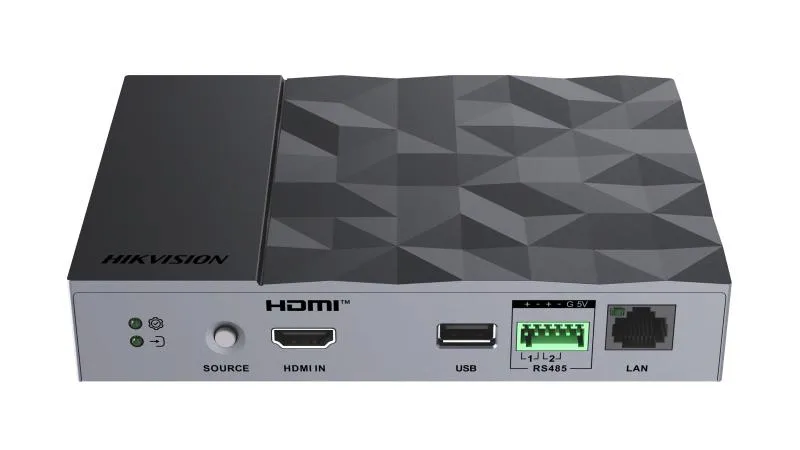

DS-DT30P-01HI01NO
1-port LED controller, up to 0.65 MP
- 1 network output, 0.65 MP
- 1 × HDMI 1.3, 1 × built-in Android
- Built-in Android 14 player
- 7680 Hz refresh
DS-DT30P-01HI01NO
1-port LED controller, up to 0.65 MP
- 1 network output, 0.65 MP
- 1 × HDMI 1.3, 1 × built-in Android
- Built-in Android 14 player
- 7680 Hz refresh
Key specs
- 1-port LED controller (DT30P, built-in Android 14)
- Inputs: 1 × HDMI 1.3, 1 × built-in Android
- Load up to 0.65 MP, 0.65 MP per network port
- Android 14 with 2 GB memory, 64 GB storage
- Refresh rate 7680 Hz
- Average consumption 11 W
| Product | |
|---|---|
| Product Type | LED controller |
| Processing Performance | |
| Brightness Control | 1 to 100 tunable (level-by-level white balance) |
| Input Frame Rate | 25 Hz to 60 Hz |
| Grey Level | 256 |
| Display Color | 16 MP |
| Processing Depth | 8 bit |
| Image Scaling | Supported |
| Chassis | |
| Chassis Height | 28.9 mm |
| Chassis Width | 156 mm |
| LED Controller Power | |
| Average Consumption | 11 W |
| Power Interface Quantity | 1 |
| Power Interface | 12 V, Ø2.1 |
| Interface | |
| USB Interface | 1 × USB 2.0 |
| Network | |
| Control Network Port | 1 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45), connects to the external network |
| Video Wall | |
| Open Windows | Simultaneous display of 1 channel of HDMI signal source and 1 channel of Android source |
| Background Images | 2 |
| Background Resolution | Min.: 640 × 480, Max.: 1920 × 1200 |
| Background Format | JPG/JPEG |
| Audio Input | |
| Audio Input Interfaces | 1 |
| Audio Input Interface Type | 1 channel of embedded HDMI input |
| Video Input | |
| Video Input Interfaces | 2 |
| Video Input Interface Type | 1 channel of HDMI 1.3 + 1 channel of embedded Android |
| Max. Video Input Resolution | 1080p |
| Max. Resolution (HDMI 1.3 port) | 1920 × 1080@60 Hz |
| Min. Resolution (HDMI 1.3 port) | 320 × 180@60 Hz |
| Custom Resolution | Supported; total resolution no more than 2.07 MP@60 Hz |
| Max. Width | 320 to 2048, alignment: multiple of 4 |
| Max. Height | 180 to 2048, alignment: multiple of 2 |
| HDCP | HDCP 1.4 supported; interlaced signal input not supported |
| Video Input Processing Feature | |
| Processing Depth | 8 bit |
| Sampling Format | RGB: 444; YUV: 444; YUV: 422 |
| Video Output | |
| Max. Video Output Resolution | 0.65 MP |
| Single Port Load | 0.65 MP |
| Width | 144 - 2048 |
| Height | 64 - 2048 |
| Alignment | Width must be a multiple of 2; height must be a multiple of 1 |
| LED Loading Interfaces | 1 |
| LED Loading Interface Type | RJ-45 |
| Audio Output | |
| Audio Output Interfaces | 1 |
| Audio Output Interface | 3.5 mm audio output |
| System | |
| System | Android 14 |
| Memory Capacity | 2 GB |
| Storage Capacity | 64 GB |
| CPU | 4-core 64-bit ARM Cortex-A53 2.0 GHz |
| Wireless | |
| Wi-Fi | 2.4 GHz |
| Antenna | 1 × rod-shaped Wi-Fi antenna |
| Remote Control | Supported (RF remote control) |
| Device Parameters | |
| Button | Source: change signal source between HDMI and Android sources |
| Serial Interface | |
| RS-485 central control serial port | Green Phoenix contact; baud rate: 115200; data bit: 8 |
| RS-485 serial port for temperature humidity sensor | Green Phoenix contact; baud rate: 115200; data bit: 8 |
| Broadcast Control Feature | |
| File Format | Video, image, music, document, text, stream media, clock, network camera, HDMI signal source |
| Program Playback | Supports starting and stopping program playback |
| Playback Attribute | Configurable window size, position and playback time; program creation and schedule configuration |
| Video Playback Performance | 1 channel of 4K@30 or 2 channels of 1080p@60 multi-media video |
| Front Panel | |
| Indicator: Active | The device is running |
| Indicator: Source | The signal source is accessed |
| General | |
| Working Humidity | 10% RH to 90% RH, no condensation |
| Dimensions (W × H × D) | 156 mm × 28.9 mm × 110 mm |
| Net Weight | 0.18 kg |
| Packing List | |
| Contents | 1 × DC adapter, 1 × terminal block, 1 × rod-shaped Wi-Fi antenna, 1 × regulatory compliance and safety information manual |
Questions & answers
Know before you buy
Quick answers about the DS-DT30P-01HI01NO, and how it compares.
How big a screen can it drive?
Up to 0.65 MP (0.65 MP per network port). For example, a P2.5 screen of 640 × 384 pixels (1.6 m × 0.96 m) is 0.25 MP.
What inputs does it take?
1 × HDMI 1.3, 1 × built-in Android.
Can it play content without a PC?
Yes. The built-in Android 14 player plays programs from a USB drive.
