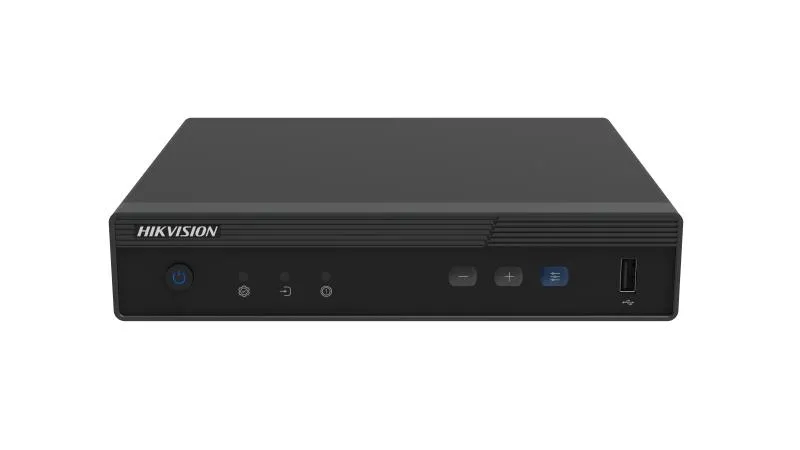

DS-DT60C-01HI04NO
4-port LED controller, up to 2.6 MP
- 4 network outputs, 2.6 MP
- HDMI 1.4
- Pixel-level calibration
DS-DT60C-01HI04NO
4-port LED controller, up to 2.6 MP
- 4 network outputs, 2.6 MP
- HDMI 1.4
- Pixel-level calibration
Key specs
- 4-port LED controller (DT60C)
- Inputs: HDMI 1.4
- Load up to 2.6 MP, 0.65 MP per network port
- Max. 5120 pixels wide or high
- 1U rack chassis
- Average consumption ≤ 13 W
| Processing Performance | |
|---|---|
| Brightness Control | 1 to 100 tunable (level-by-level white balance) |
| Input Frame Rate | 25 Hz to 60 Hz |
| Grey Level | 256 |
| Display Color | 16 MP |
| Processing Depth | 8 bit |
| Image Scaling | Supported |
| Chassis | |
| Chassis Height | 1 U |
| Chassis Width | Half-width |
| LED Controller Interface | |
| Light Sensor Port | Not supported |
| LED Controller Power | |
| Average Consumption | ≤ 13 W |
| Power Interface Quantity | 1 |
| Power Interface | 100 to 240 VAC, 50/60 Hz |
| Interface | |
| USB Interface | 1 channel of USB 2.0 |
| Network | |
| Control Network Port | 2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) |
| Video Wall | |
| Background Images | 2 |
| Background Resolution | Min.: 640 × 480, Max.: 1920 × 1200 |
| Background Format | JPG/JPEG |
| Audio | |
| Audio Input Interfaces | 1 |
| Audio Input Interface Type | 1 channel of embedded HDMI input |
| Audio Output Interfaces | 1 |
| Audio Output Interface Type | 3.5 mm audio output |
| Video Input | |
| Video Input Interfaces | 1 |
| Video Input Interface Type | HDMI 1.4 |
| Max. Video Input Resolution | 1080P |
| Max. Resolution (HDMI 1.4 port) | 1920 × 1200 @ 60 Hz |
| Min. Resolution (HDMI 1.4 port) | 320 × 180 @ 60 Hz |
| Custom Resolution | Total no more than 2.6 MP @ 60 Hz |
| Max. Width | 144 to 4096, alignment: 2 |
| Max. Height | 144 to 4096, alignment: 1 |
| HDCP | HDCP 1.4 supported |
| Interlaced Signal Input | Not supported |
| Video Input Processing Feature | |
| Processing Depth | 8 bit |
| Sampling Format | RGB 444; YUV 444; YUV 422 |
| Video Output | |
| Max. Video Output Resolution | 2600000 |
| Single Port Load | 650000 |
| Width | 144 to 5120 |
| Height | 64 to 5120 |
| Alignment | Width multiple of 2; height multiple of 1 |
| LED Loading Interfaces | 4 |
| LED Loading Interface Type | RJ-45 |
| Loading Mode | Single port load 0.65 MP |
| Wireless | |
| Remote Control | Supports IR remote control |
| Device Parameters | |
| Button | +: increase brightness; -: decrease brightness; Source: change signal source |
| Serial Interface | |
| Ports | 1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) |
| Baud Rate | 115200 |
| Data Bit | 8 |
| Front Panel | |
| Indicator | Active: device running; Source: signal accessed; Error: operation exception |
| Power Switch | On: started and running; Off: not powered on or not started |
| Control Interface | |
| IR Input | 1 × 3.5 mm connector |
| General | |
| Working Temperature | -10°C to 50°C |
| Working Humidity | 10% to 90% |
| Dimensions (W × H × D) | 210 mm × 180 mm × 42 mm |
| Net Weight | 1.1 kg |
| Packing List | |
| Contents | 1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control |
Questions & answers
Know before you buy
Quick answers about the DS-DT60C-01HI04NO, and how it compares.
How big a screen can it drive?
Up to 2.6 MP in total (4 ports × 0.65 MP per port), and up to 5120 pixels wide or high. For example, a P2.5 screen of 1280 × 768 pixels (3.2 m × 1.92 m) is 0.98 MP and uses 2 ports.
What inputs does it take?
HDMI 1.4.
Can I buy it online?
LED controllers are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
