The Hikvision DS-DT60P-02HDI20NO/U is a 20-port LED controller: it takes your video (1 × HDMI 2.0, 1 × DVI, 1 × built-in Android) and feeds the receiving cards of an LED screen over network cable, with 20 output ports for up to 13 MP.

Our engineers match the controller to your screen and send a free BOQ.

#Display#LEDC_Ports_12_20#LEDC_HDMI#LEDC_4K#LEDC_DVI#LEDC_Android#LEDC_Port_Backup
See full specs and details Have a question? 3 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-DT60P-02HDI20NO/U

20-port LED controller, up to 13 MP

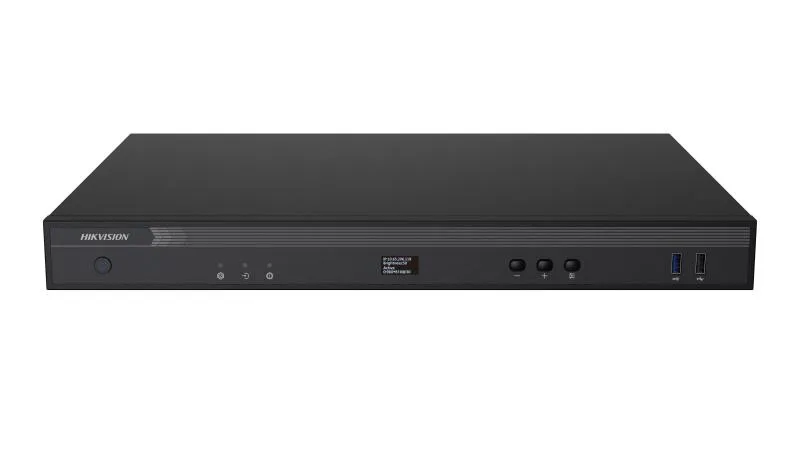

Hikvision DS-DT60P-02HDI20NO/U 20-port LED controller, up to 13 MP
  • 20 network outputs, 13 MP
  • 1 × HDMI 2.0, 1 × DVI, 1 × built-in Android
  • Pixel-level calibration
  • Dual power and network backup
LED modulesLED cabinetsReceiving cards & powerVideo wall

What you need

The controller sits between your video source and the LED screen; our engineers size it to both.

PartModelWhat it doesQty
LED controllerDS-DT60P-02HDI20NO/UTakes the video and feeds the screen1 per screen
Receiving cardsDS-DR32H-16 / DS-DR32H-12 / DS-DR32H-08One per group of modules, chained by network cableby screen resolution
Network cableCAT6 cableFrom each controller port to the first receiving card of its chainper port
Video sourcePC, media player or camera system (HDMI)What the screen showsas needed
LED screenLED modules or LED cabinetsThe screen itselfas planned
Cables and installationPower cable, CAT6 network cable, installation, testing and commissioningWiring, setup and calibration by our team1 per site

Sizing a controller? Tell us the screen size and pixel pitch and your video sources, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • 20-port LED controller (DT60P)
  • Inputs: 1 × HDMI 2.0, 1 × DVI, 1 × built-in Android
  • Load up to 13 MP, 0.65 MP per network port
  • 1U rack chassis
  • Average consumption ≤45 W
Chat on WhatsApp
Product
Product TypeLED controller
Processing Performance
Brightness Control1 to 100 tunable (level-by-level white balance)
Frame Frequency25 Hz to 60 Hz
Grey Level256
Display Color16 MP
Processing Depth8 bit
Image ScalingSupported
Chassis
Chassis Height1 U
Chassis Width440 mm
LED Controller Power
Average Consumption≤45 W
Power Interface Quantity1
Power Interface100 to 240 VAC, 50/60 Hz
Video Wall
Open Windows3 signal source + 2 image + 1 scrolling text + 1 background window
Layers per Device7
Scenes10
Background Images1
Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
Background FormatJPG/JPEG
Subtitles1
Subtitle Width32760
Subtitle FontXiaomi font and custom font
Audio Input
Audio Input Interfaces2
Audio Input Interface Type1 HDMI 2.0 + 1 embedded Android
Video Input
Video Input Interfaces3
Video Input Interface Type1 HDMI 2.0 + 1 DVI + 1 embedded Android
Max. Video Input ResolutionHDMI 2.0: 4K; DVI: 1080p
DVI Max. Resolution1920 × 1200@60 Hz
DVI Min. Resolution320 × 180@60 Hz
DVI Custom ResolutionTotal ≤2.6 MP@60 Hz; width 320 to 3840 (alignment 2); height 180 to 3840 (alignment 1)
DVI HDCPHDCP 1.4; interlaced input not supported
HDMI 2.0 Max. Resolution4096 × 2160@60 Hz
HDMI 2.0 Min. Resolution320 × 180@60 Hz
HDMI 2.0 Custom ResolutionTotal ≤8.8 MP@60 Hz; width 320 to 8192 (alignment 2); height 180 to 8192 (alignment 1)
HDMI 2.0 HDCPHDCP 2.2; interlaced input not supported
Video Input Processing Feature
Processing Depth8 bit
Sampling FormatRGB 444; YUV 444; YUV 422; YUV 420
Video Output
Video Output Interfaces20
Max. Video Output Resolution13 MP
Single Port Loading0.65 MP; width 320 to 32760 (alignment 2); height 64 to 8192 (alignment 1)
Video Output Resolution InterfaceRJ-45
Video Loop Output
Video Loop Output Interfaces2
Loop Output Interface Type1 HDMI 2.0 + 1 DVI
DVI LoopMax 1920 × 1200@60 Hz; Min 320 × 180@60 Hz; custom total ≤2.6 MP@60 Hz; HDCP 1.4
HDMI 2.0 LoopMax 4096 × 2160@60 Hz; Min 320 × 180@60 Hz; custom total ≤8.8 MP@60 Hz; HDCP 2.2
Video Live View Output
Interfaces1
Interface TypeHDMI 1.4
Resolution720p@60 Hz
Audio Output
Audio Output Interfaces1
Audio Output Interface Type3.5 mm
System
Operating SystemAndroid 12
Memory Capacity4 GB
Storage Capacity32 GB
CPU4-core 64-bit ARM Cortex-A55, 2.0 GHz
Wireless
Wi-FiSTA 2.4 GHz; AP 2.4 & 5 GHz
Bluetooth4.0
Antenna3 × bar antenna
Remote ControlIR and RF
Front Panel
Screen128 × 64 OLED
USB Port1 × USB 2.0 + 1 × USB 3.0
Buttons+: increase brightness; -: decrease brightness; Source: change signal source
IndicatorsActive (device running), Source (signal accessed), Error (operation exception)
Power SwitchOn (started and running); Off (not powered or not started)
Control Interface
Control Network Port2 × 10/100/1000 Mbps self-adaptive Ethernet (RJ-45)
IR Input1 × 3.5 mm
Serial Interface1 × debug serial (4-pin); 1 × RS-485 central control (green Phoenix contact); 1 × RS-485 light perception (green Phoenix contact)
Baud Rate / Data Bit115200 / 8
Power Switch TypeButton switch
General
Working Temperature-10°C to 50°C
Working Humidity10% to 90%
Dimensions (W × H × D)440 mm × 44.5 mm × 320.8 mm (17.32 × 1.75 × 12.63 inch)
Net Weight3.35 kg
Packing List
Contents1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1 × RF remote control
Questions & answers

Know before you buy

Quick answers about the DS-DT60P-02HDI20NO/U, and how it compares.

How big a screen can it drive?

Up to 13 MP in total (20 ports × 0.65 MP per port). For example, a P2.5 screen of 1280 × 768 pixels (3.2 m × 1.92 m) is 0.98 MP and uses 2 ports.

What inputs does it take?

1 × HDMI 2.0, 1 × DVI, 1 × built-in Android.

Can I buy it online?

LED controllers are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
