Key specs

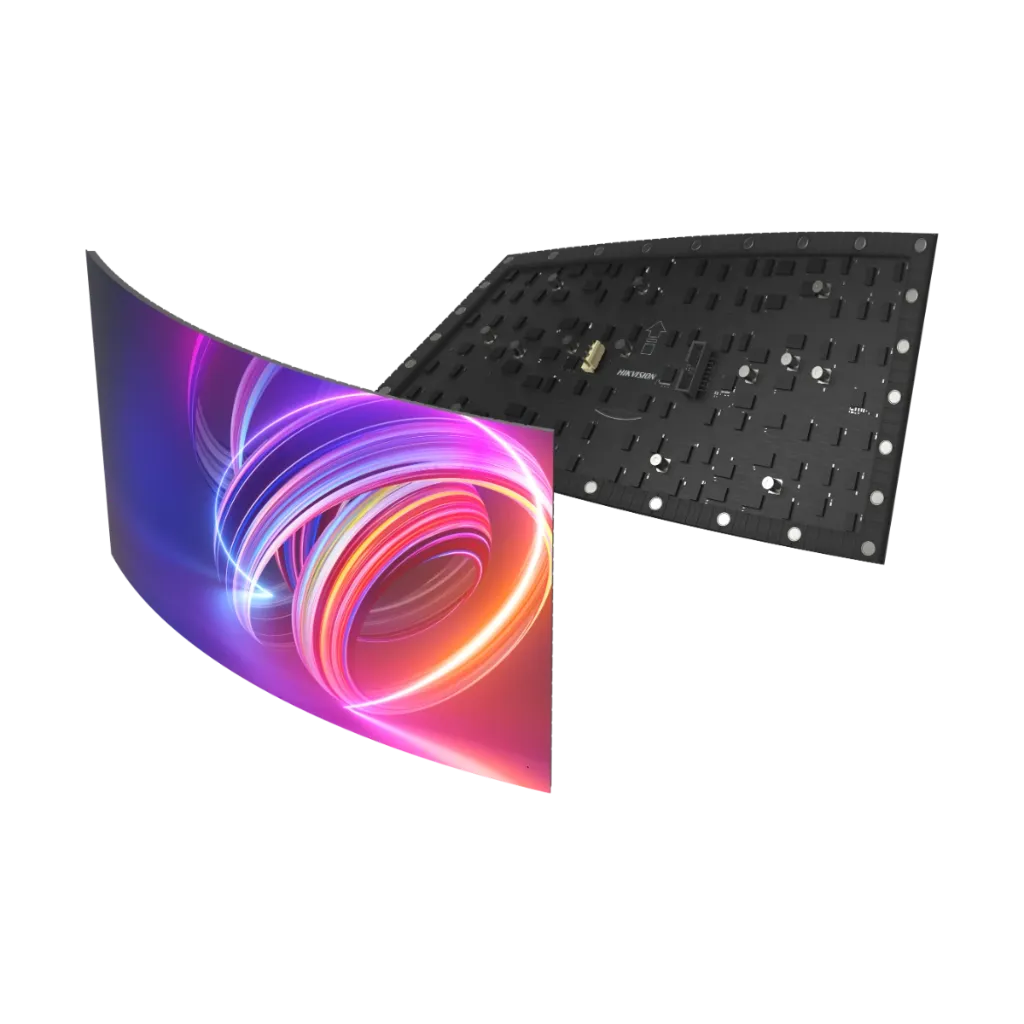

- P2.5 soft (flexible) indoor LED module
- Pixel pitch 2.5 mm
- Module 634 × 410 mm, 128 × 64 pixels
- Brightness 600 cd/m²
- Refresh rate 3840 Hz, grey level up to 16 bit
- SMD (1515)
- Interface HUB75E, 5 V DC
- Power max. 450 W/m², average 150 W/m²
- IP30
| Module | |
|---|---|
| Pixel Configuration | SMD |
| Pixel Pitch | 2.5 |
| Lamp Bead Dimensions | 1515 |
| Dimension (W × H × D) | 320 mm × 160 mm × 13 mm (connectors contained) |
| Resolution | 128 × 64 |
| Weight | 0.19 kg |
| Pixel Density | 160000 dot/m² |
| Maintenance Method | Front and Rear Maintenance |
| Signal Source Interface | HUB75E |
| Module Flatness | ≤ 0.3 mm |
| Waterproof Level | IP30 |
| Component Material | Silicon soft panel |
| Curvature | Out Arc & Inner Arc ≥ 157° |
| Display Parameters | |
| Blind Spot Rate | < 0.0003, 0 by default |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 3000 K to 10000 K adjustable |
| Viewing Angle | 160°(H)/160°(V) |
| Brightness Uniformity | ≥ 97% |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Contrast Ratio | 3000:1 |
| Refresh Rate | 3840 Hz |
| Optimal View Distance | 3.2 m to 8.4 m |
| Interface | |
| Power Interface | VH4PIN |
| Processing Performance | |
| Driving Method | Constant current driving |
| Scanning Amount | 32S |
| Frame Frequency | 60 Hz |
| Grey Level | Up to 16 bit |
| Power | |
| Max. Consumption | 450 W/m² |
| Average Consumption | 150 W/m² |
| Input Voltage | AC 100 V to 240 V~ |
| Working Voltage | DC 4.5 V to 5 V |
| Modular Max. Consumption | 23 W |
| Modular Max. Current | 5 A |
| Working Environment | |
| Working Temperature | -10 °C to 40 °C |
| Working Humidity | 10% RH to 80% RH (without condensation) |
| General | |
| Packing Method | 48 modules in 1 package |
| Net Weight | 0.19 kg |
| Structure | |
| Min. Diameter | 815 mm |
Know before you buy
Quick answers about the DS-D41Q25CA-1GS/DH Soft-320mm*160mm, and how it compares.
How many modules do I need?
Divide the screen width by 0.634 m and the height by 0.41 m. For example, a 6.34 m × 4.92 m screen takes 10 × 12 = 120 modules, 1280 × 768 pixels (0.98 MP). Our engineers size it for your wall and add the receiving cards, power supplies and controller.
What else does an LED screen need?
Receiving cards (HUB75E), 5 V power supplies, an LED controller, a steel frame with magnetic screws, power and network cabling, and installation. See What you need above; our engineers prepare the full BOQ.
Can it be used outdoors?
No, it is an indoor module (600 cd/m², IP30). For outdoor screens use our outdoor LED modules, P3 to P8, IP65 front.
What is the best viewing distance?
Hikvision gives an optimal viewing distance of 3.2 m to 8.4 m for this module.
How much power does it use?
Up to 450 W/m² and about 150 W/m² on average (Hikvision figures). Our engineers size the power and the cabling for the whole screen.
