DS-D41Q25CA-1PHQ
Out of stock

DS-D41Q25CA-1PHQ

(0 reviews)

The Hikvision DS-D41Q25CA-1PHQ is a P2.5 indoor LED module: 320 × 160 mm with 128 × 64 pixels at 2.5 mm pitch, 550 cd/m² and 3840 Hz refresh. Modules join edge to edge into a screen of the size you need, on a frame or in cabinets, driven by receiving cards, 5 V power supplies and an LED controller.

Our engineers size the screen (modules, receiving cards, power supplies, controller and frame) and send a free BOQ.

#Display#LED_P2_5#LED_Indoor#LED_SMD#LED_Module_320x160#LED_HUB75E
See full specs and details Have a question? 5 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-D41Q25CA-1PHQ

P2.5 indoor LED module, 320 × 160 mm

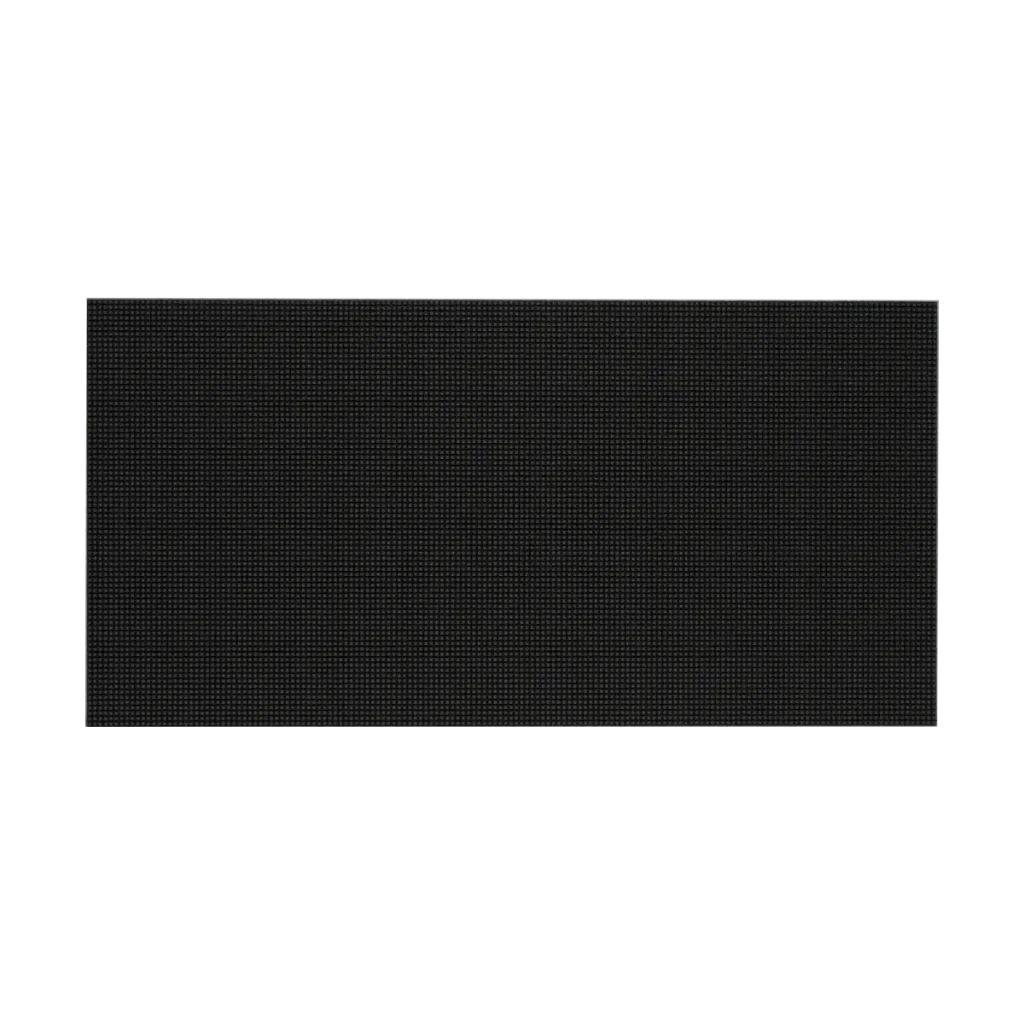

Hikvision DS-D41Q25CA-1PHQ P2.5 indoor LED module, 320 × 160 mm
  • 2.5 mm pitch, 128 × 64 pixels
  • 550 cd/m², 3840 Hz refresh
  • HUB75E interface, 5 V DC
  • Seamless splicing
LED cabinetsLED controllersReceiving cards & powerVideo wall

What you need for an LED screen

An LED screen is built from parts: our engineers size every part to your wall and send a free BOQ.

PartModelWhat it doesQty
LED modulesDS-D41Q25CA-1PHQMake up the screen, 320 × 160 mm eachabout 19.5 per m²
Receiving cardsDS-DR32H-16 / DS-DR32H-12 / DS-DR32H-08Drive the modules (HUB75E), up to 512 × 512 pixels per cardby screen resolution
Power supplies (5 V)DS-DP320F1-5V/N / DS-DP330F2-5V/N / DS-DP320F1-5V/CPower the modules, up to 420 W/m²by screen wattage
LED controllerLED controllersTakes HDMI / DP video and feeds the receiving cards; 0.65 MP per network port1
FrameSteel (MS) frame made to the screen sizeHolds the screen flat on the wall; we supply it1 per screen
Magnetic screwsM4 magnetic screwsFix the modules to the frameas needed
Cables and installationPower cable, CAT6 network cable, installation, testing and commissioningWiring, setup and calibration by our team1 per site

Planning an LED screen? Tell us the wall size, indoor or outdoor, the viewing distance and what you want to show, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • P2.5 indoor LED module
  • Pixel pitch 2.5 mm
  • Module 320 × 160 mm, 128 × 64 pixels
  • Brightness 550 cd/m²
  • Refresh rate 3840 Hz, grey level up to 16 bit
  • SMD (1515)
  • Interface HUB75E, 5 V DC
  • Power max. ≤ 420 W/m², average < 180 W/m²
Chat on WhatsApp
Module
Pixel ConfigurationSMD
Pixel Pitch2.5 mm
Lamp Bead Dimensions1515
Dimensions of Module320 mm × 160 mm
Module Resolution128 × 64
Pixel Density160000
Signal Source InterfaceHUB75E
Display
White Balance Brightness550 cd/m²
Color Temperature3000K to 10000K adjustable
Viewing Angle160°(H)/160°(V)
Brightness Uniformity≥ 97%
Color Uniformity≤ ± 0.003Cx, Cy
Contrast Ratio3000:1
Refresh Rate3840 Hz
Processing Performance
Scanning Amount32
Grey LevelUp to 16 bit
Power
Max. Consumption≤ 420 W/m²
Average Consumption< 180 W/m²
Input VoltageDC: 4.5 V to 5 V
Working Environment
Working Temperature-10 °C to 40 °C
Working Humidity10% RH to 80% RH (without condensation)
Questions & answers

Know before you buy

Quick answers about the DS-D41Q25CA-1PHQ, and how it compares.

How many modules do I need?

Divide the screen width by 0.32 m and the height by 0.16 m. For example, a 3.2 m × 1.92 m screen takes 10 × 12 = 120 modules, 1280 × 768 pixels (0.98 MP). Our engineers size it for your wall and add the receiving cards, power supplies and controller.

What else does an LED screen need?

Receiving cards (HUB75E), 5 V power supplies, an LED controller, a steel frame with magnetic screws, power and network cabling, and installation. See What you need above; our engineers prepare the full BOQ.

Can it be used outdoors?

No, it is an indoor module (550 cd/m²). For outdoor screens use our outdoor LED modules, P3 to P8, IP65 front.

How much power does it use?

Up to 420 W/m² and about 180 W/m² on average (Hikvision figures). Our engineers size the power and the cabling for the whole screen.

Can I buy it online?

LED screens are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
