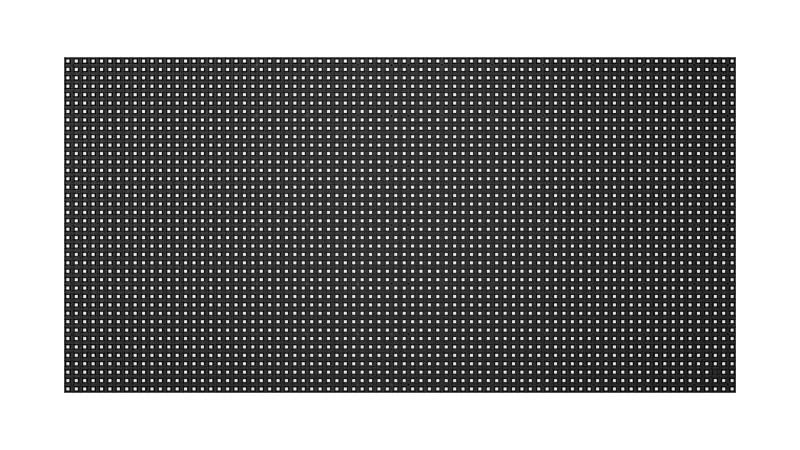

DS-D43Q50CA-1PH
P5 outdoor LED module, 320 × 160 mm
- 5 mm pitch, 80 × 40 pixels
- 4500 cd/m², up to 3840 Hz refresh
- 5 V DC
- IP65 front
DS-D43Q50CA-1PH
P5 outdoor LED module, 320 × 160 mm
- 5 mm pitch, 80 × 40 pixels
- 4500 cd/m², up to 3840 Hz refresh
- 5 V DC
- IP65 front
Key specs
- P5 outdoor LED module
- Pixel pitch 5 mm
- Module 320 × 160 mm, 80 × 40 pixels
- Brightness 4500 cd/m²
- Refresh rate up to 3840 Hz, grey level up to 14 bit
- 1R1G1B (1921)
- Power max. ≤ 500 W/m² (4500 cd/m²), average ≤ 170 W/m² (4500 cd/m²)
- IP65 front
| Cabinet | |
|---|---|
| Pixel Configuration | 1R1G1B |
| Pixel Pitch Category | P5 |
| Pixel Pitch | 5 mm |
| Dimensions (W × H × D) | 320 mm × 160 mm × 18 mm |
| Resolution | 80 × 40 |
| Pixel Density | 40000 dots/m² |
| Lamp Board Housing | With housing |
| Maintenance Method | Back maintenance |
| Cabinet Flatness | 0.2 mm |
| Protection Level | IP65 front |
| Key Material | |
| Lamp Encapsulation | 1921 |
| Control System | |
| Control System | DS-D42C08-H, DS-D42C16-H |
| Display | |
| White Balance Brightness | 4500 cd/m² |
| Color Temperature | 2000 K to 14000 K adjustable |
| Viewing Angle | Horizontal 140°, vertical 120° |
| Contrast Ratio | ≥ 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | Up to 3840 Hz |
| Grey Level | Up to 14 bit |
| Power | |
| Power Supply | 110 to 220 VAC ± 15% |
| Max. Consumption | ≤ 500 W/m² (4500 cd/m²) |
| Average Consumption | ≤ 170 W/m² (4500 cd/m²) |
| General | |
| Net Weight | 22450 g (40 pcs in 1) |
| Working Environment | |
| Working Temperature | -20 °C to 50 °C |
| Working Humidity | 10% RH to 80% RH |
Know before you buy
Quick answers about the DS-D43Q50CA-1PH, and how it compares.
How many modules do I need?
Divide the screen width by 0.32 m and the height by 0.16 m. For example, a 3.2 m × 1.92 m screen takes 10 × 12 = 120 modules, 800 × 480 pixels (0.38 MP). Our engineers size it for your wall and add the receiving cards, power supplies and controller.
What else does an LED screen need?
Receiving cards (Hikvision lists DS-D42C08-H / DS-D42C16-H for it), 5 V power supplies, an LED controller, a steel frame with magnetic screws, power and network cabling, and installation. See What you need above; our engineers prepare the full BOQ.
Can it be used outdoors?
Yes. It is an outdoor module: IP65 front, 4500 cd/m², working temperature -20 °C to 50 °C.
How much power does it use?
Up to 500 W/m² (4500 cd/m²) and about 170 W/m² (4500 cd/m²) on average (Hikvision figures). Our engineers size the power and the cabling for the whole screen.
