The Hikvision DS-D43Q80CA-1PH is a P8 outdoor LED module: 320 × 160 mm with 40 × 20 pixels at 8 mm pitch, 4500 cd/m² and up to 3840 Hz refresh. Outdoor module with IP65 front. Modules join edge to edge into a screen of the size you need, on a frame or in cabinets, driven by receiving cards, 5 V power supplies and an LED controller.

Our engineers size the screen (modules, receiving cards, power supplies, controller and frame) and send a free BOQ.

#Display#LED_P8#LED_Outdoor#LED_SMD#LED_Module_320x160#LED_HUB75E#LED_Weatherproof
See full specs and details Have a question? 5 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

DS-D43Q80CA-1PH

P8 outdoor LED module, 320 × 160 mm

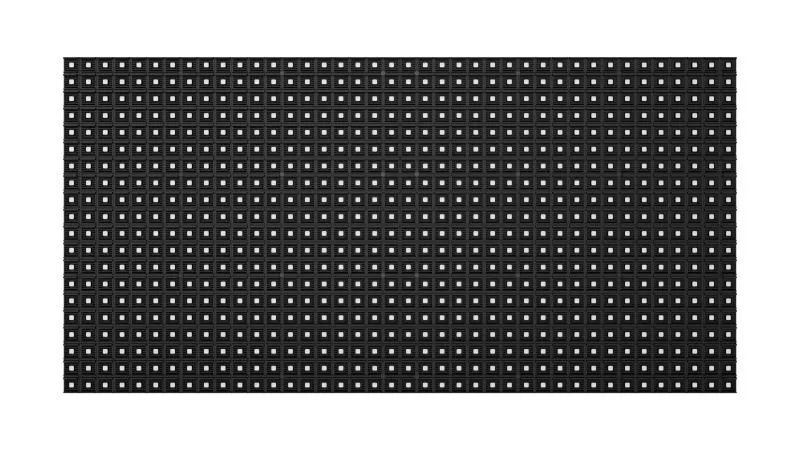

Hikvision DS-D43Q80CA-1PH P8 outdoor LED module, 320 × 160 mm
  • 8 mm pitch, 40 × 20 pixels
  • 4500 cd/m², up to 3840 Hz refresh
  • HUB75E interface, 5 V DC
  • IP65 front
LED cabinetsLED controllersReceiving cards & powerVideo wall

What you need for an LED screen

An LED screen is built from parts: our engineers size every part to your wall and send a free BOQ.

PartModelWhat it doesQty
LED modulesDS-D43Q80CA-1PHMake up the screen, 320 × 160 mm eachabout 19.5 per m²
Receiving cardsDS-DR32H-16 / DS-DR32H-12 / DS-DR32H-08Drive the modules (HUB75E), up to 512 × 512 pixels per cardby screen resolution
Power supplies (5 V)DS-DP320F1-5V/N / DS-DP330F2-5V/N / DS-DP320F1-5V/CPower the modules, up to 644 W/m² (4500 cd/m²)by screen wattage
LED controllerLED controllersTakes HDMI / DP video and feeds the receiving cards; 0.65 MP per network port1
FrameSteel (MS) frame made to the screen sizeHolds the screen flat on the wall; we supply it1 per screen
Magnetic screwsM4 magnetic screwsFix the modules to the frameas needed
Cables and installationPower cable, CAT6 network cable, installation, testing and commissioningWiring, setup and calibration by our team1 per site

Planning an LED screen? Tell us the wall size, indoor or outdoor, the viewing distance and what you want to show, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • P8 outdoor LED module
  • Pixel pitch 8 mm
  • Module 320 × 160 mm, 40 × 20 pixels
  • Brightness 4500 cd/m²
  • Refresh rate up to 3840 Hz, grey level up to 14 bit
  • SMD Triad LED (2727)
  • Interface HUB75E, 5 V DC
  • Power max. ≤ 644 W/m² (4500 cd/m²), average ≤ 215 W/m² (4500 cd/m²)
  • IP65 front
Chat on WhatsApp
Module
Pixel ConfigurationSMD Triad LED
Pixel Pitch CategoryP8.0
Pixel Pitch8 mm
Dimensions (W × H × D)320 mm × 160 mm × 19 mm
Resolution40 × 20
Pixel Density15625 dots/m²
Maintenance MethodBack maintenance
Signal Source InterfaceHUB75E
Module Flatness0.2 mm
Waterproof LevelIP65 front
Display
White Balance Brightness4500 cd/m²
Color Temperature2000 to 14000K adjustable
Viewing AngleHorizontal 140°, vertical 120°
Contrast Ratio≥ 5000:1
Color Uniformity≤ ± 0.003Cx, Cy
Brightness Uniformity≥ 97%
Processing Performance
Driving MethodConstant current driving, Scan: 5/S
Frame Frequency60 Hz
Refresh RateUp to 3840 Hz
Grey LevelUp to 14 bit
Key Material
Lamp Encapsulation2727
Control SystemDS-D42C08-H DS-D42C16-H
Power
Power Supply5 V DC
Max. Consumption≤ 644 W/m² (4500 cd/m²)
Average Consumption≤ 215 W/m² (4500 cd/m²)
Working Environment
Working Temperature-20 °C to 50 °C
Working Humidity10%~80%RH
General
Packing Method40 pcs/BOX
Net Weight0.425 kg/PCS
Questions & answers

Know before you buy

Quick answers about the DS-D43Q80CA-1PH, and how it compares.

How many modules do I need?

Divide the screen width by 0.32 m and the height by 0.16 m. For example, a 3.2 m × 1.92 m screen takes 10 × 12 = 120 modules, 400 × 240 pixels (0.1 MP). Our engineers size it for your wall and add the receiving cards, power supplies and controller.

What else does an LED screen need?

Receiving cards (HUB75E), 5 V power supplies, an LED controller, a steel frame with magnetic screws, power and network cabling, and installation. See What you need above; our engineers prepare the full BOQ.

Can it be used outdoors?

Yes. It is an outdoor module: IP65 front, 4500 cd/m², working temperature -20 °C to 50 °C.

How much power does it use?

Up to 644 W/m² (4500 cd/m²) and about 215 W/m² (4500 cd/m²) on average (Hikvision figures). Our engineers size the power and the cabling for the whole screen.

Can I buy it online?

LED screens are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
