Key specs

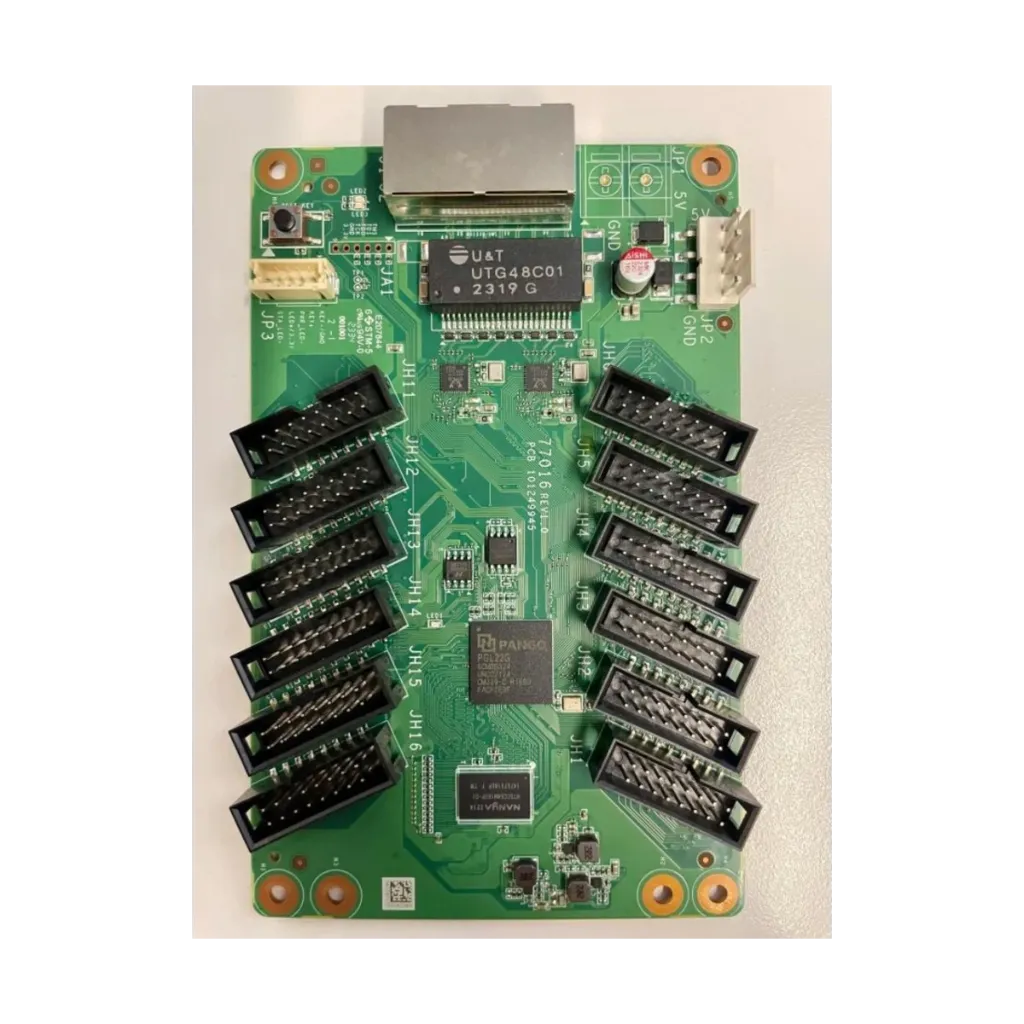

- 12-port HUB75E LED receiving card
- Load up to 512 × 512 pixels
- Grey level 16 bit
- Input DC 3.8 V to 5.5 V, max. 2.5 W
- Size 144.0 mm × 91.5 mm × 16.7 mm
| Interface | |
|---|---|
| Interface | HUB75E |
| HUB Ports | 12 |
| Control Interface | RJ45 × 2 |
| Processing Performance | |
| Max. Load Capacity | 512 × 512 pixels |
| Grey Level | 16 bit |
| Power | |
| Max. Consumption | 2.5 W |
| Input Voltage | DC 3.8 V to 5.5 V |
| General | |
| Product Dimensions (W × H × D) | 144.0 mm × 91.5 mm × 16.7 mm |
| Weight | 95.0 g |
| Packing | 100 pcs per packing box |
