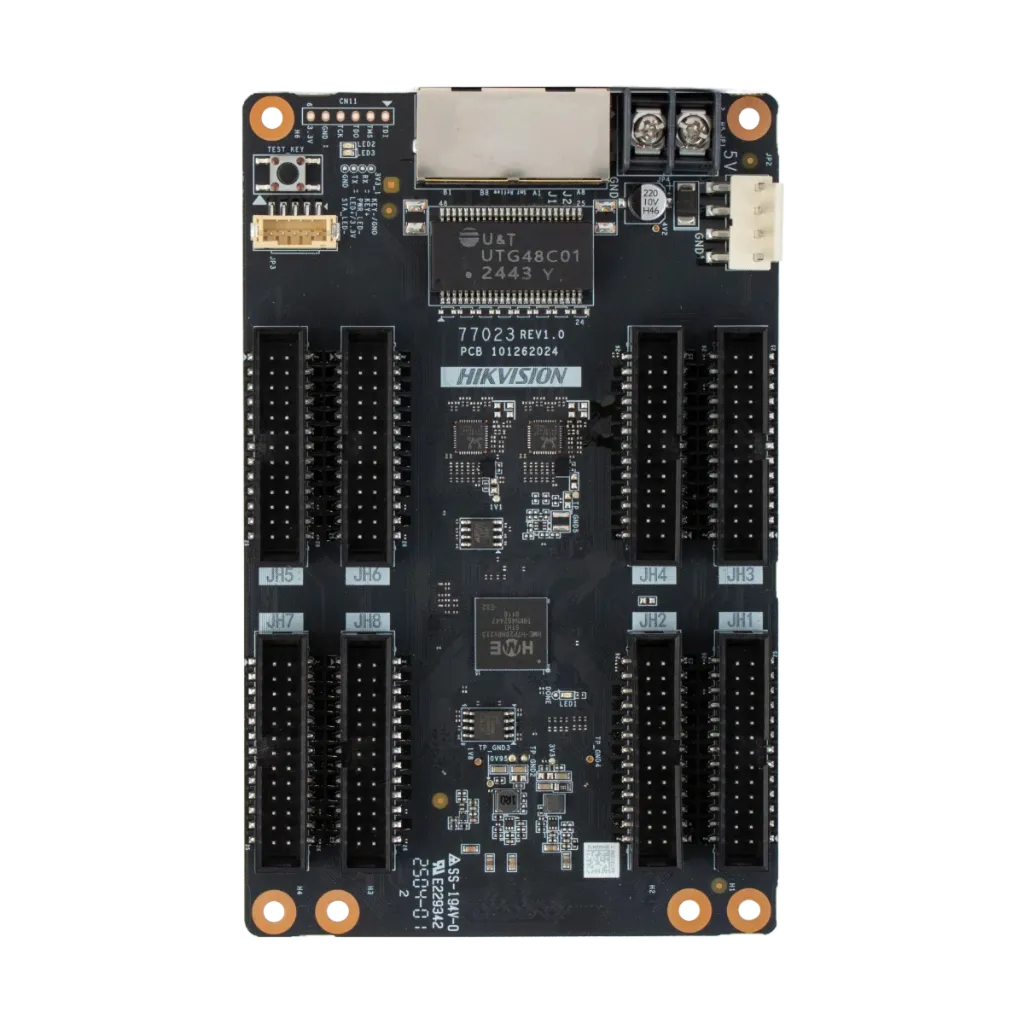

The Hikvision DS-DR32C-08 is an 8-port HUB320 LED receiving card. It sits behind the modules and drives up to 512 × 512 pixels through 8 HUB320 ports; the LED controller feeds it over network cable. 14Bit+ processing, light-by-light chromaticity correction and independent RGB gamma adjustment. Reduces bright and dark lines caused by module and cabinet splicing; adjustment takes effect immediately.

Our engineers size it for your LED screen and send a free BOQ.

#Display#LED_HUB320
See full specs and details
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

Open the esco.pk guide: how to plan an SMD LED screen
Planning an LED screen?LED planning guide Pitch, size calculator and controller ports in one guide.
Open the guide

Key specs

  • 8-port HUB320 LED receiving card
  • Load up to 512 × 512 pixels
  • Grey level 16 bit
  • Input DC 3.8 V to 5.5 V, max. 2.5 W
  • Size 91.5 mm × 18.7 mm × 144 mm
  • 14Bit+ processing, light-by-light chromaticity correction and independent RGB gamma adjustment
  • Reduces bright and dark lines caused by module and cabinet splicing; adjustment takes effect immediately
Chat on WhatsApp
Interface
Interface TypeHUB320
Interface Quantity8
Processing Performance
Max. Load Capacity512 × 512 pixels
Grey Level16 bit
Power
Max. Consumption2.5 W
Input VoltageDC 3.8 V to 5.5 V
Working Environment
Working Temperature-20 °C to 60 °C
Working Humidity10% to 90% RH (non-condensing)
General
Product Dimensions (W × H × D)91.5 mm × 18.7 mm × 144 mm
Net Weight90 g
