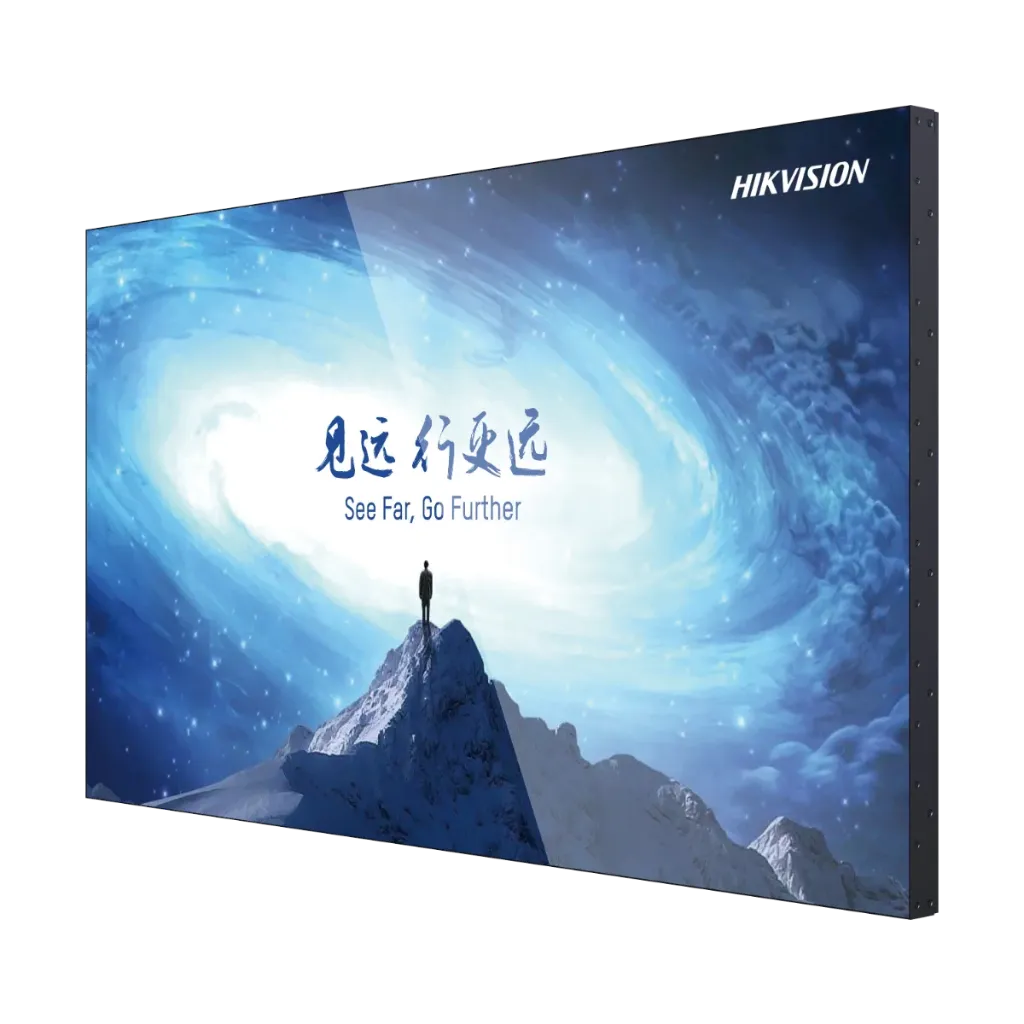

DS-D2046TL-2B (1 IN 1 Package)
46-inch video wall display, 2.5 mm seam
- 2.5 mm seam between screens
- 500 cd/m² brightness, VA panel
- 4K input, HDMI loop-through to 30 screens
- Built for 24-hour operation
DS-D2046TL-2B (1 IN 1 Package)
46-inch video wall display, 2.5 mm seam
- 2.5 mm seam between screens
- 500 cd/m² brightness, VA panel
- 4K input, HDMI loop-through to 30 screens
- Built for 24-hour operation
Key specs
- 46-inch LCD video wall display
- 2.5 mm physical seam
- 1920 × 1080, VA, Direct-lit LED backlight
- 500 cd/m², 1200:1 contrast
- Inputs: VGA, HDMI, DVI, DP, USB
- Output: HDMI, RS232 in / out
- 24-hour continuous working
- VESA 600 (H) mm × 400 (V) mm
- ≤ 200 W, 10.5 ±0.5 kg
| Display | |
|---|---|
| Screen Size | 46 inch |
| Active Display Area | 1018.08 (H) mm × 572.67 (V) mm |
| Backlight | Direct-lit LED backlight |
| Pixel Pitch | 0.53 mm |
| Physical Seam | 2.5 mm |
| Physical Seam Tolerance | ± 0.8 mm |
| Physical Resolution | 1920 × 1080 |
| Brightness | 500 cd/m² |
| Color Temperature | 10,000 ± 1,000 K |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit, 16.7 M |
| Contrast Ratio | 1200:1 |
| Response Time | 8.5 ms |
| Color Gamut | 72% NTSC |
| Surface Treatment | Haze 25% |
| Interface | |
| Video & Audio Input | VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1 |
| Video & Audio Output | HDMI × 1 |
| Control Interface | RS232 IN × 1, RS232 OUT × 1 |
| Key Material | |
| LCD Technology | VA |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | ≤ 200 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C |
| Working Humidity | 20% RH to 80% RH (without condensation) |
| Storage Temperature | -20 °C to 60 °C |
| General | |
| Standby Time | 600 s |
| Casing Material | Metal |
| VESA | 600 (H) mm × 400 (V) mm |
| Product Dimension (W × H × D) | 1020.91 mm × 575.44 mm × 47.95 mm |
| Net Weight | 10.5 ± 0.5 kg (single display) |
| Gross Weight | 15.0 ± 0.5 kg (carton with a single display) |
| Packing List | LCD display, power cable, network cable, 2-meter HDMI cable, 4 screws, remote control, IR receiver, quick start guides, LCD maintenance notice |
Know before you buy
Quick answers about the DS-D2046TL-2B (1 IN 1 Package), and how it compares.
What is the gap between screens?
The physical seam between neighbouring screens is 2.5 mm (Hikvision tolerance ± 0.8 mm).
How many screens can I put together?
Any grid your wall allows, for example 2 × 2 or 3 × 3. A single 4K signal can loop through up to 30 screens over HDMI. Bigger walls and mixed sources run from a video wall controller or decoder. Our engineers plan the layout for your room.
Can it run 24/7?
Yes. Hikvision builds it for stable 24-hour continuous working, in a metal casing.
Which brackets fit it?
Can I buy it online?
Video walls are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
