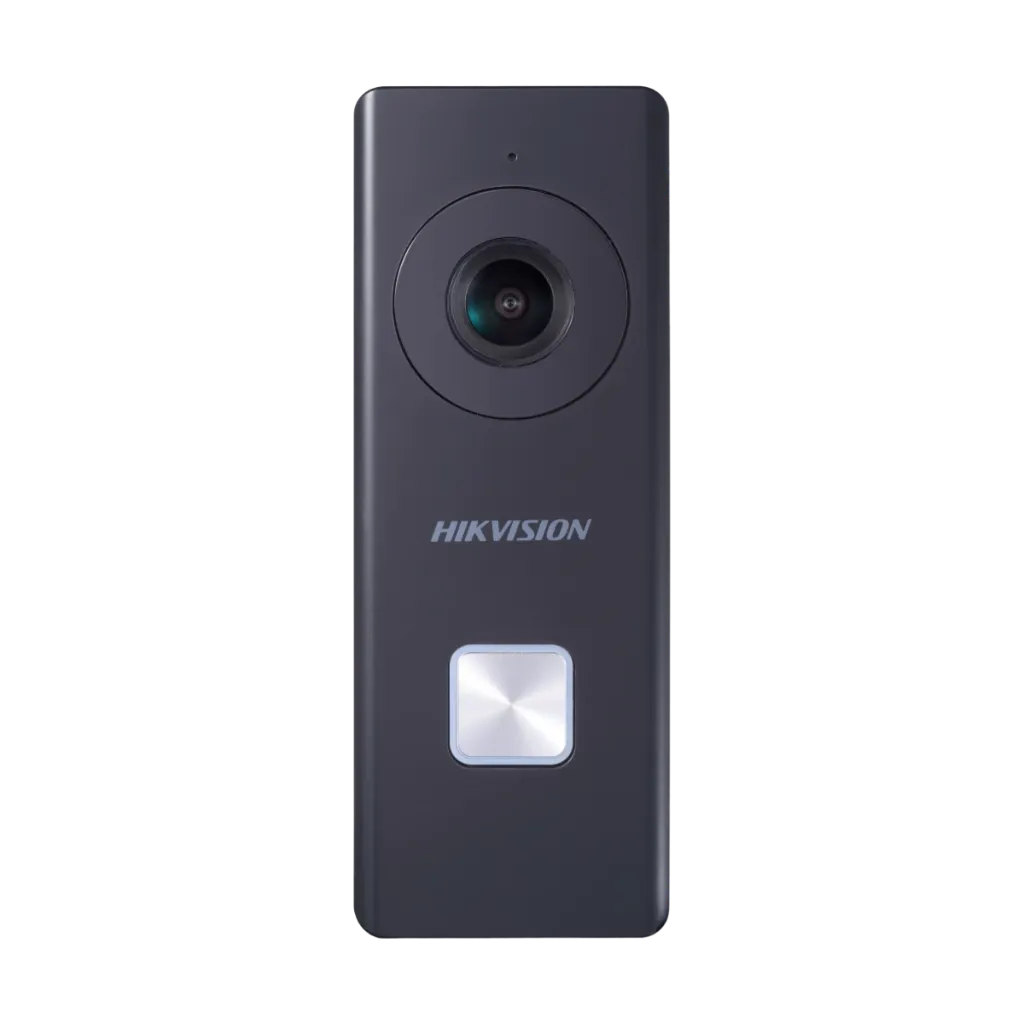

DS-KB6403-WIP
Wi-Fi video doorbell, 2 MP, app answering
- 2 MP camera with IR light
- One call button
- Wi-Fi 2.4 GHz, 12 VDC
- Answer on your phone; IP54
DS-KB6403-WIP
Wi-Fi video doorbell, 2 MP, app answering
- 2 MP camera with IR light
- One call button
- Wi-Fi 2.4 GHz, 12 VDC
- Answer on your phone; IP54
Key specs
- Wi-Fi video doorbell
- 2 MP camera with supplemental IR light
- 1 call button, 1 reset button
- Wi-Fi 2.4 GHz
- Video intercom with the mobile app
- Power supply 12 VDC
- IP54
|
System Parameters |
|
|
Processor |
High-Performance Embedded SOC Processor |
|
Operation system |
Embedded Linux Operation System |
|
Image sensor |
CMOS 2MP HD Colorful Camera |
|
Light sensitivity |
Low Illumination |
|
Lens |
f1.96 mm, F 2.2 |
|
Field of view |
180º (Horizontal), 96º (Vertical) |
|
Video parameters |
|
|
Video compression standard |
H.264 |
|
Video streaming |
Main Stream: 1080P, Sub-Stream: VGA |
|
Wide dynamic range |
WDR |
|
Audio parameters |
|
|
Audio streaming |
Two-Way, Full Duplex |
|
Audio input |
Built-in Omnidirectional Microphone |
|
Audio output |
Built-in Loudspeaker |
|
Audio compression standard |
G.711 U |
|
Audio compression rate |
64 Kbps |
|
Audio quality |
Noise Suppression and Echo Cancellation |
|
Light supplement |
|
|
Light supplement mode |
IR Supplement |
|
Wavelength |
940 nm |
|
Network parameters |
|
|
Network protocol |
TCP/IP, RTSP |
|
Network interface |
1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz |
|
Event |
|
|
Motion Detection |
Supported |
|
Alarm |
|
|
Motion Detection |
Supported |
|
Device interfaces |
|
|
TF card |
Max. 128 G |
|
Button |
1 Call Button, 1 Reset Button |
|
General |
|
|
Ingress protection level |
IP 54 |
|
Power supply |
12 VDC |
|
Power consumption |
Max. 0.6 A |
|
Working temperature |
-30° C to +50° C (-22° F to 122° F) |
|
Working humidity |
10% to 90% |
|
Dimensions |
122.4 mm x 45.9 mm x 28.1 mm (4.82" x 1.81" x 1.11") |
Know before you buy
Quick answers about the DS-KB6403-WIP, and how it compares.
Can I answer the door on my phone?
Yes. With the free mobile app you see the visitor, talk and open the door from your phone, at home or away.
What cable does it need?
No network cable: it connects over 2.4 GHz Wi-Fi and needs a 12 VDC supply.
How many homes can it call?
One home: it has one call button. For two homes sharing a gate (ground and first floor, or two flats side by side), see the 2-button door stations in our door stations.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
