Hikvision DS-KV8213-WME1: IP villa door station with 2 call buttons, for two homes sharing one gate: ground and first floor, or two flats on the same level. Each button rings its own indoor station. 2MP camera with night vision, Mifare card unlock, 2 lock outputs, PoE or 12 VDC, metal body (IP65, IK08).

#Video_Intercom#Mifare_Card#Terminal_WiFi#Terminal_PoE#VI_IP#VI_2Homes#VI_App
See full specs and details Have a question? 6 answered
Rs. 0 Rs. 0

  • Brand - HIKVISION
Request a Quote
HIKVISION
HIKVISION

Comprehensive AIoT Solutions for Security, Smart Home, and Beyond

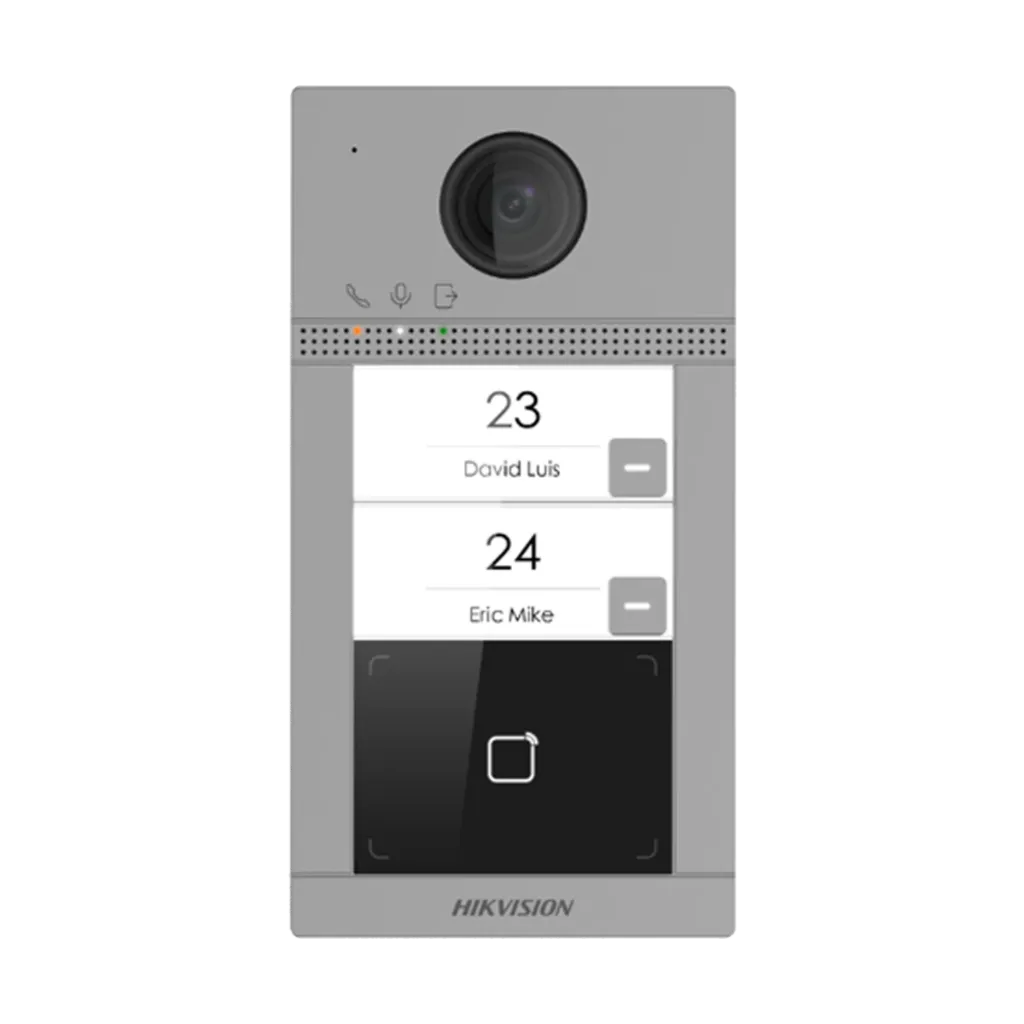

DS-KV8213-WME1

2-button metal villa door station: two homes, one gate

Hikvision DS-KV8213-WME1 2-button metal villa door station: two homes, one gate
  • 2 call buttons: one per home
  • 2MP camera, IR night vision 3 m
  • Mifare card unlock; 2 lock outputs
  • Metal body, IP65 and IK08, PoE
Video intercom kitsDoor stationsIndoor stationsHigh rise buildings

What you need with this door station

The door station calls the indoor station inside the home and opens the gate. Add the parts below; our engineers size it for your villa and send a free BOQ.

PartModelWhat it doesQty
Indoor stationHikvision IP indoor stationOne per home; each button calls its own2
PoE switch802.3af PoE portPowers the door station over the network cable1 port
Electric lockElectric lockUp to 2 doors or gates (2 lock outputs)1 or 2
Exit buttonExit buttonOpens the door from inside1 or 2
Network cableCat5e / Cat6Door station and each indoor station to the switch3 runs

Several villas or a whole building? Tell us the number of homes or flats, the gates and how residents should answer, and we prepare the full list and quote.

Get a free BOQ →

Key specs

  • IP villa door station with 2 call buttons: each calls its own home
  • 2MP (1080p) camera, WDR, IR night vision up to 3 m
  • Mifare card reader (13.56 MHz): 10,000 cards, 2,000 users
  • 2 lock outputs, 2 exit button and 2 door contact inputs
  • 2 main indoor stations, up to 16 sub door stations
  • Standard PoE (802.3af) or 12 VDC; 2.4 GHz Wi-Fi
  • Hik-Connect app
  • Metal body, IP65 and IK08; -40 to 53 °C
  • 174 x 91 x 29 mm, surface mounting
Chat on WhatsApp

System Parameters

Operation system

Linux

ROM

32 MB

RAM

256 MB

Processor

Embedded high performance processor

Video parameters

Lens

1

Resolution

Main stream:1920 × 1080p and 1280 × 720p Sub stream: 640 × 480p

FOV

Horizontal: 124° Vertical: 75°

Wide dynamic range (WDR)

Digital WDR / 76.9 dB

Supplement light

IR light, up to 3 m

Video compression standard

H.264

Audio parameters

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G.711 U, G.711 A

Audio output

1 built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

User capacity

2000

Card capacity

10000

Linked indoor station capacity

2 (main indoor station)

Sub door station capacity

16

Network parameters

Network protocol

TCP/IP, RTSP

Wi-Fi

IEEE802.11b, IEEE802.11g, IEEE802.11n

Received frequency

2.4 to 2.4835 GHz

Transmitted frequency

2.4 to 2.4835 GHz

Bandwidth

20/40 MHz

Frequency power

802.11b:15 dBm +/- 1.5 dBm

802.11g:15 dBm +/- 1.5 dBm

802.11n(ht20):14 dBm +/- 1.5 dBm

802.11n(ht40):12 dBm +/- 1.5 dBm

Authentication

Card reading frequency

13.56 MHz

Device interfaces



Alarm input

4



Network interface

1 RJ-45,10/100 Mbps self-adaptive



TAMPER

1



Exit button

2



RS-485

1



TF card

Reserved



Lock control

2 relays, Max. 30 VDC 2 A



Door contact input

2



General



Button

2 physical buttons



Installation

Surface mounting



Indicator

3



Weight

Net weight: 0.370 kg Gross weight: 0.637    kg



Protective level

IP65, IK08



Working temperature

-40 °C to 53 °C (-40 °F to 127.4 °F)



Working humidity

10% to 95% (no-condensing)



Dimension (W × H × D)

174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")



Battery

/



Application environment

Outdoor



Power consumption

＜ 10 W


Questions & answers

Know before you buy

Quick answers about the DS-KV8213-WME1, and how it compares.

Can I answer the door on my phone?

Yes. With the free Hik-Connect app you see the visitor, talk and open the door from your phone, at home or away.

What cable does it need?

A network cable (Cat5e or Cat6) to a switch. With a standard PoE switch the same cable powers it, so no adaptor is needed.

Can two homes share one gate?

Yes. It has 2 call buttons: one for each home, for example the ground floor and the first floor, or two flats on the same level. Each button rings its own indoor station, so each family answers and opens for its own visitors.

Can it open the door or gate?

Yes. It has 2 lock outputs, 2 exit button inputs and 2 door contact inputs; open by Mifare card, from either indoor station or the app.

Which indoor stations does it work with?

Hikvision rates it for 2 main indoor stations, one per button, but gives no model list for it. Tell us the homes and how residents want to answer, and our engineers confirm the indoor stations before you order.

Can I buy it online?

Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
